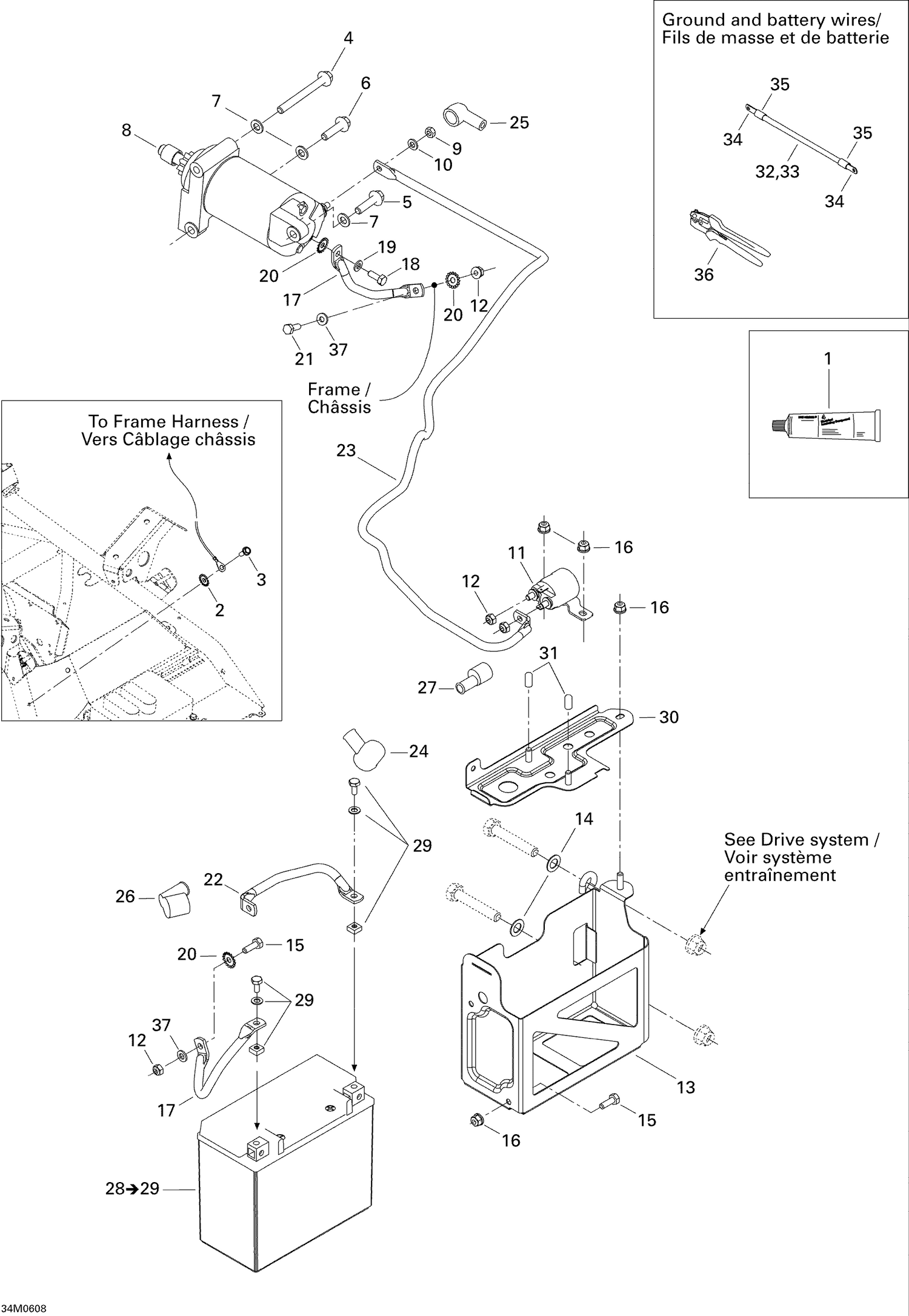

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 3 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 4 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 5 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 6 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 7 |
250200008 |
Flat Washer With Teflon 8 mm |
| 8 |
515176133 |
Electric Starter Ass'y |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
234061410 |
Flat Washer 6 mm |
| 11 |
515176011 |
Starter Relay |
| 12 |
232561414 |
Elastic Stop Nut M6 |
| 13 |
515176230 |
Battery Support Black |
| 14 |
503175800 |
Washer |
| 15 |
207161844 |
Hex. Screw M6 X 18 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
515175749 |
Ground Wire |
| 18 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 19 |
234061410 |
Flat Washer 6 mm |
| 20 |
250200041 |
Lock Washer Serrated M6 |
| 21 |
207162044 |
Hex. Screw M6 X 20 |
| 22 |
515175904 |
Battery Wire |
| 23 |
515175905 |
BATTERY WIRE - Call your local BRP dealership |
| 24 |
570151000 |
Protection Cap |
| 25 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 26 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 27 |
515175919 |
Protector Cap |
| 28 |
410301203 |
Battery YUASA YTX20L |
| 29 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 30 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 31 |
515176141 |
Cap |
| 32 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 33 |
278001690 |
Cable Battery, no 6, meter) |
| 34 |
278001682 |
Terminal 45°, Small Hole |
| 34 |
278001683 |
TERMINAL 45, SMALL HOLE - Call your local BRP dealership |
| 34 |
278001684 |
TERMINAL 90, SMALL HOLE - Call your local BRP dealership |
| 34 |
278001685 |
FLAT TERMINAL, BIG HOLE - Call your local BRP dealership |
| 34 |
278001686 |
TERMINAL 45, BIG HOLE - Call your local BRP dealership |
| 34 |
278001687 |
TERMINAL 90, BIG HOLE - Call your local BRP dealership |
| 35 |
278001688 |
FLAT TERMINAL - Call your local BRP dealership |
| 36 |
529035730 |
Crimp Plier |
