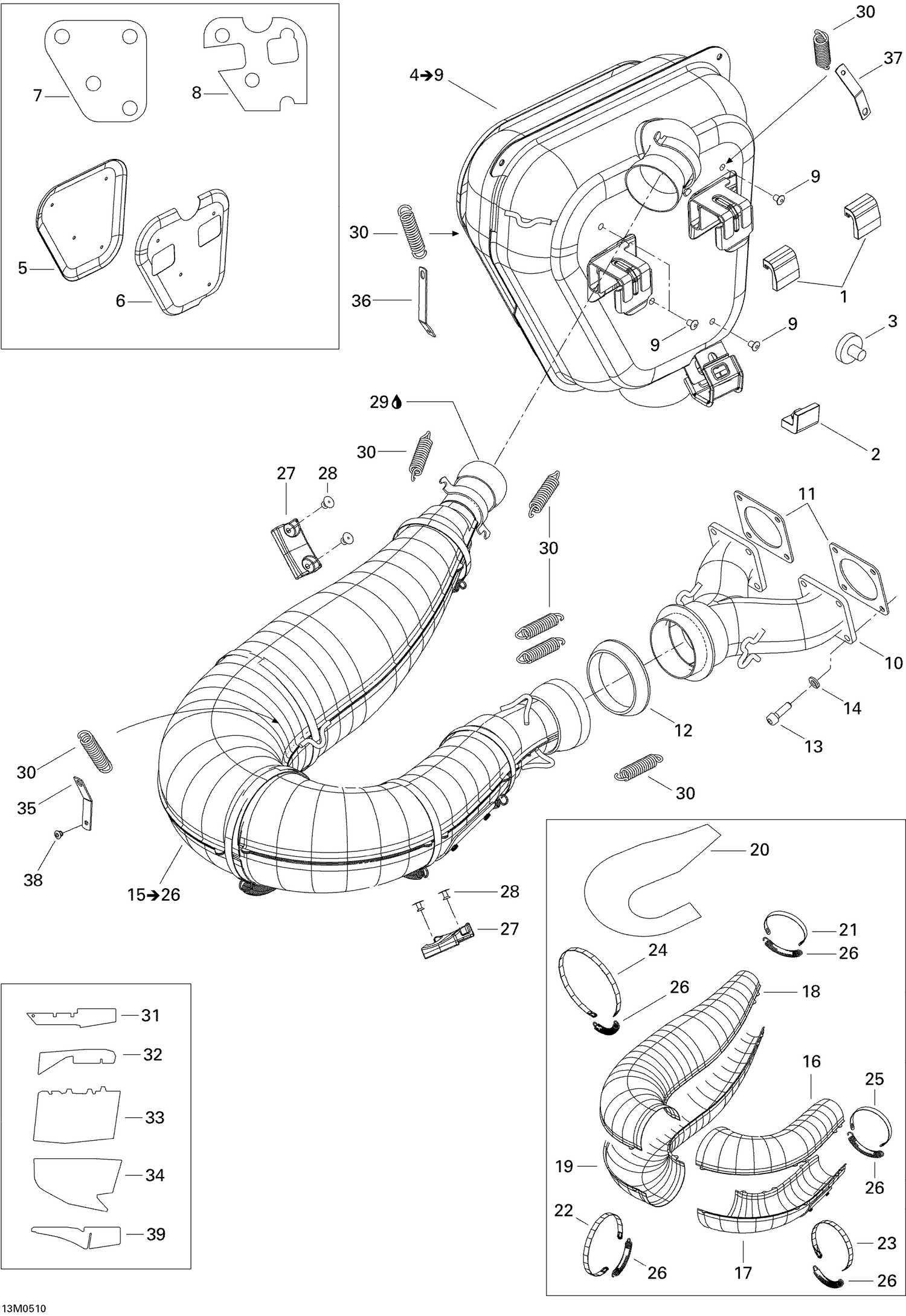

01- Exhaust System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053372 | UPPER STOPPER - Call your local BRP dealership |
| 2 | 514053373 | Lower Stopper |
| 3 | 514053394 | Exhaust Grommet |
| 4 | 514053868 | Muffler Assy |
| 5 | 514053139 | RH HEAT SHIELD - Call your local BRP dealership |
| 6 | 514053883 | LH Heat Shield |
| 7 | 514053141 | RH INSULATING WOOL - Call your local BRP dealership |
| 8 | 514053884 | LH INSULATING WOOL - Call your local BRP dealership |
| 9 | 390910000 | Pop Rivet 3/16” |
| 10 | 420973557 | MANIFOLD - Call your local BRP dealership |
| 11 | 420850552 | Gasket |
| 12 | 514053487 | Exhaust Gasket |
| 13 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 14 | 514053953 | Washer |
| 15 | 514053873 | Tuyau Calibré 440X Ass. |
| 16 | 514053151 | Upper Front Half-Enveloppe |
| 17 | 514053152 | Lower Inferior Half-Enveloppe Ass'y |
| 18 | 514053475 | Upper Rear Half-Enveloppe |
| 19 | 514053476 | Lower Rear Half-Enveloppe Ass'y |
| 20 | 514053558 | Insulating Wool |
| 21 | 514053437 | RETAINING STRAP - Call your local BRP dealership |
| 22 | 514053534 | RETAINING STRAP - Call your local BRP dealership |
| 23 | 514053499 | Retaining Strap |
| 24 | 514053605 | RETAINING STRAP - Call your local BRP dealership |
| 25 | 514053494 | RETAINING STRAP - Call your local BRP dealership |
| 26 | 514053643 | Spring |
| 27 | 514053352 | BUMPER - Call your local BRP dealership |
| 28 | 293150103 | Pop Rivet 3/16" |
| 29 | 293800090 | Sealant, Loctite, 80 ml |
| 30 | 415107100 | Spring |
| 31 | 514053702 | REFLECTION SHEET - Call your local BRP dealership |
| 32 | 514053622 | Reflective Sheet |
| 33 | 514053954 | REFLECTIVE SHEET - Call your local BRP dealership |
| 34 | 514053562 | REFLECTIVE SHEET - Call your local BRP dealership |
| 35 | 514053955 | SPRING BRACKET - Call your local BRP dealership |
| 36 | 514053393 | Spring Bracket |
| 37 | 514053436 | Spring Bracket |
| 38 | 390909200 | Avex Rivet |
