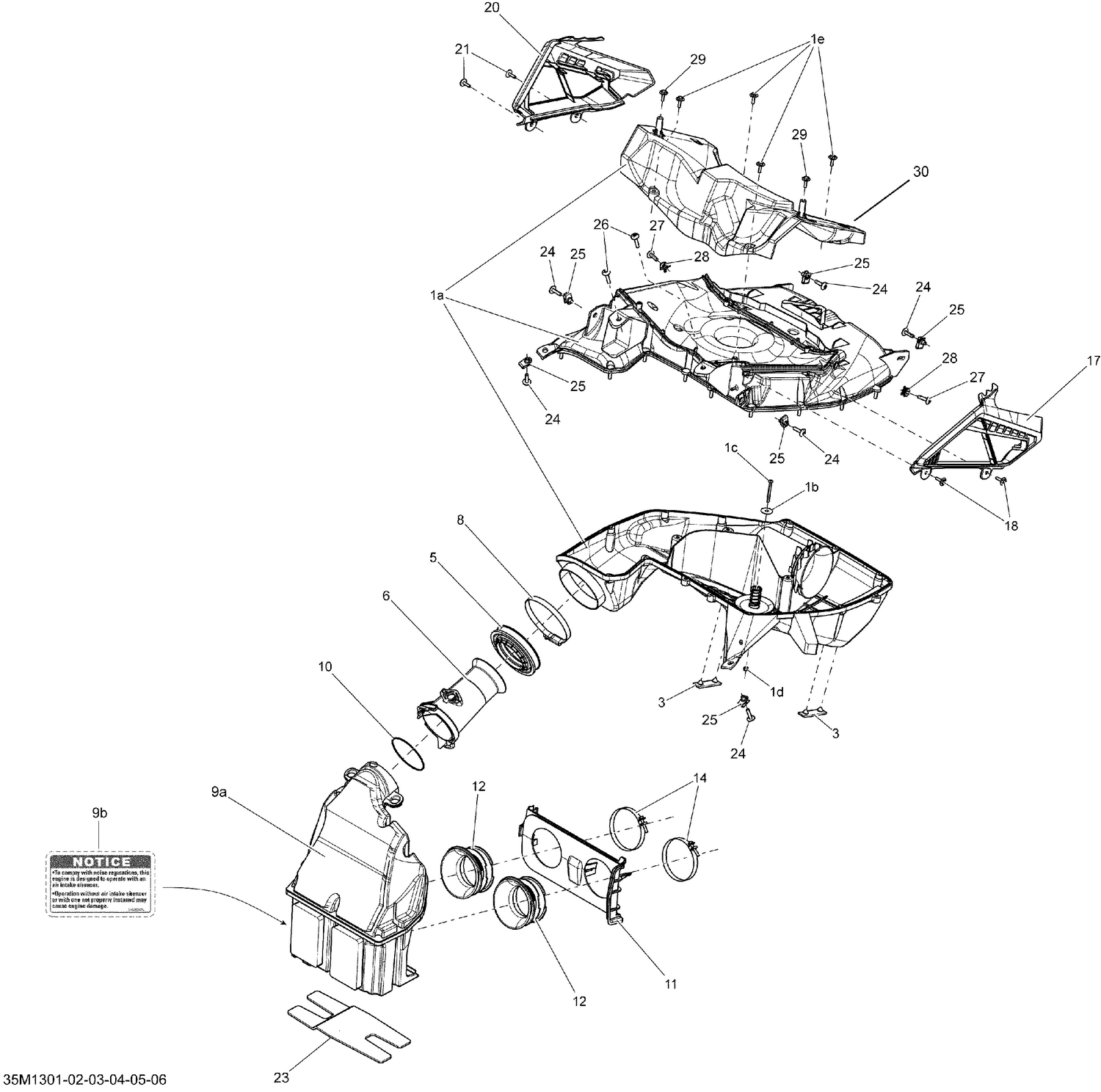

02- Air Intake System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1b | 224060201 | Flat Washer |
| 1c | 205444086 | Socket Head Screw M4 X 40 |
| 1d | 232541414 | Elastic Stop Nut M4 |
| 1e | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 3 | 508000744 | Stopper |
| 5 | 508000567 | Boot |
| 6 | 508000662 | Flute |
| 8 | 514052924 | Norma Clamp |
| 9b | 516005876 | Notice Decal, Air Intake Silencer |
| 10 | 293300115 | O-Ring |
| 11 | 508000613 | Plate Adapter |
| 12 | 508000614 | Air Intake Adapter |
| 14 | 508000346 | Gemi Clamp |
| 17 | 508000730 | RH Air Filter |
| 18 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 20 | 508000731 | LH Air Filter |
| 21 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 23 | 508000739 | Insulated Foam |
| 24 | 250000528 | Torx Screw M5 X 20 |
| 25 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 26 | 250000587 | Torx Screw M5 X 26 |
| 27 | 250000528 | Torx Screw M5 X 20 |
| 28 | 250100035 | Jack Nut M5 |
| 29 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
