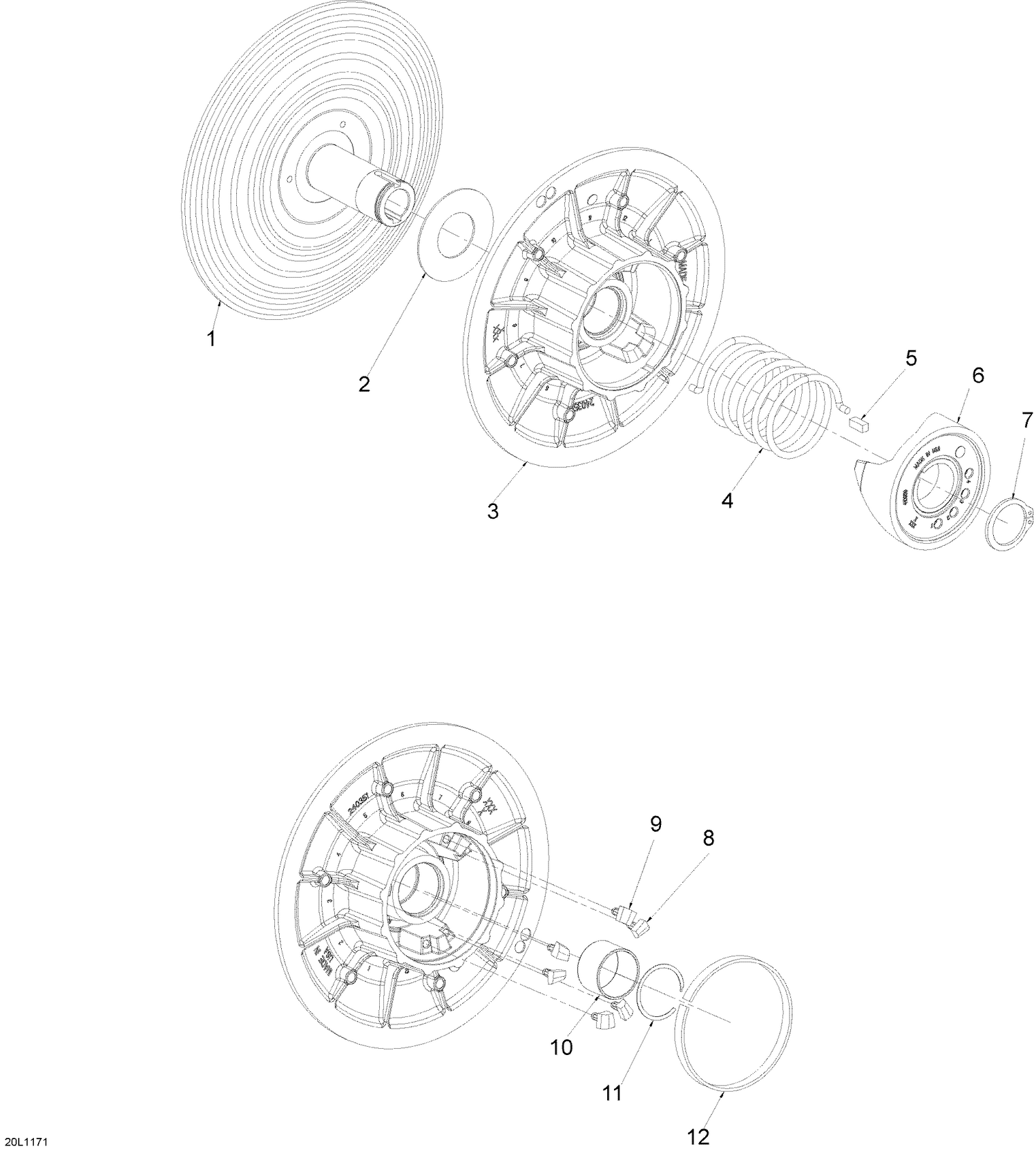

| Ref | Part Number | Description |
|---|
| 1 |
619100024 |
FIXED FLANGE - Call your local BRP dealership |
| 2 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 3 |
619100026 |
Sliding flange assy |
| 4 |
619100037 |
Spring |
| 5 |
619100028 |
KEY - Call your local BRP dealership |
| 6 |
619100035 |
CAM 40/30 DEGR - Call your local BRP dealership |
| 7 |
619100027 |
CIRCLIP - Call your local BRP dealership |
| 8 |
417126374 |
Cam slide shoe (front) This part replaces 619100040. |
| 9 |
417126373 |
Rear Cam Slider Shoe, Red |
| 10 |
619100032 |
Bearing, plain - Call your local BRP dealership |
| 11 |
371911200 |
CIRCLIP - Call your local BRP dealership This part replaces 619100033. |
