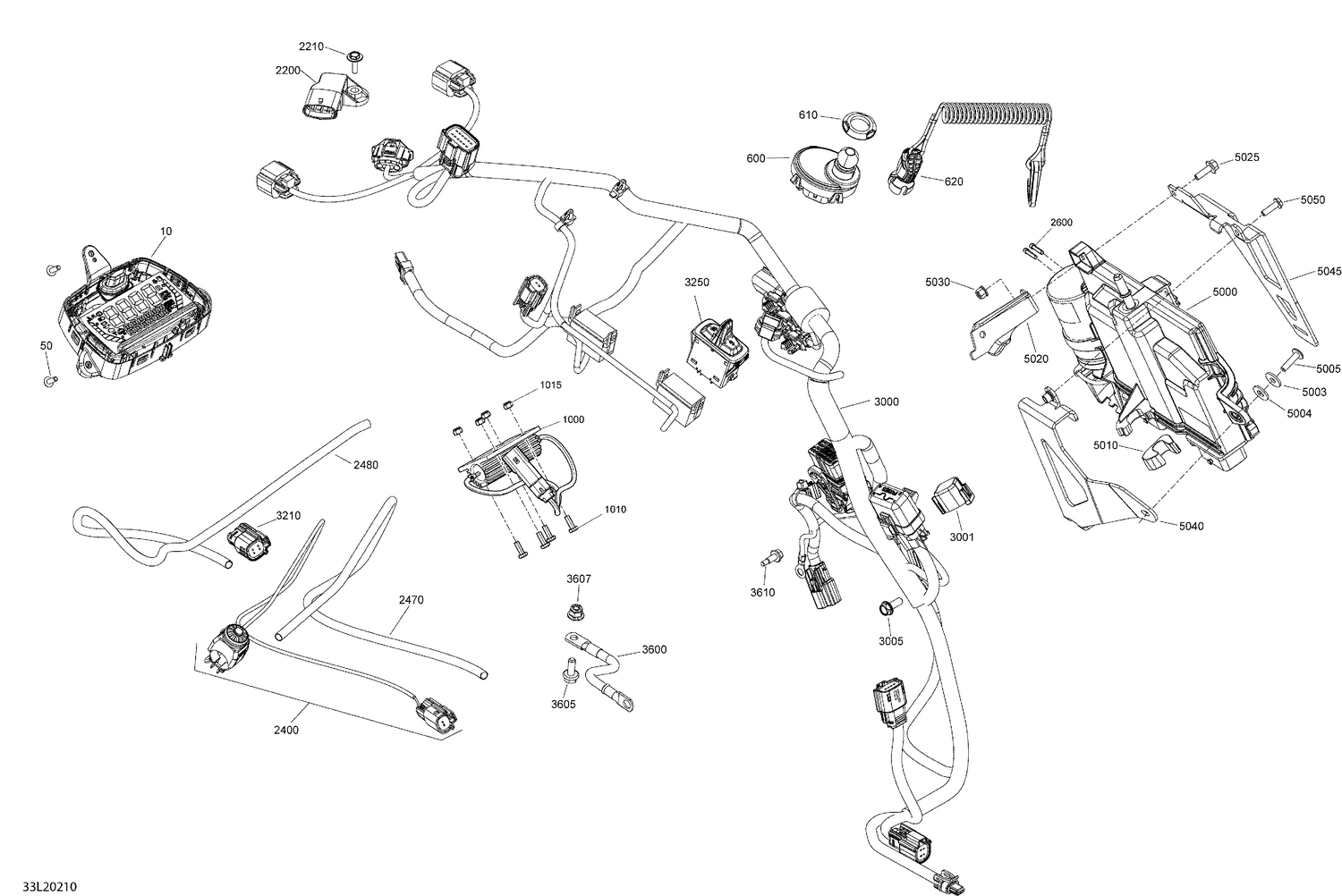

10- Electric - System - Racing
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178835 | Indicator |
| 50 | 250000577 | Torx Truss Screw K40 X 12 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 1000 | 515178831 | Resistor Ass'y |
| 1010 | 207141260 | Screw Hex. M4 X 12 |
| 1015 | 232541484 | Elastic Stop Nut M4 |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000587 | Torx Screw M5 X 26 |
| 2400 | 515178657 | Control Button |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 293000052 | Sealing Cap |
| 3000 | 515178550 | Chassis Wiring Harness |
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 210261650 | Hex. Flanged Screw M6 X 16 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3600 | 515178248 | Ground Wire |
| 3605 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 5000 | 512061093 | Igniton Module |
| 5003 | 250200140 | Washer |
| 5004 | 250200024 | Rubber Washer 5 mm |
| 5005 | 250000724 | Torx Screw M5 X 20 |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178801 | Module Support |
| 5025 | 207651646 | Hex. Flange Screw M5 X 16 |
| 5030 | 233251434 | Flanged Elastic Nut M5 |
| 5040 | 515178488 | Support Module |
| 5045 | 515178489 | Support Module |
| 5050 | 207551634 | Hex. Flange Screw, Scotch Grip |
