Home / BRP / 2005 / Enduro Sport, 2005 / 07- Take Apart Shock rear

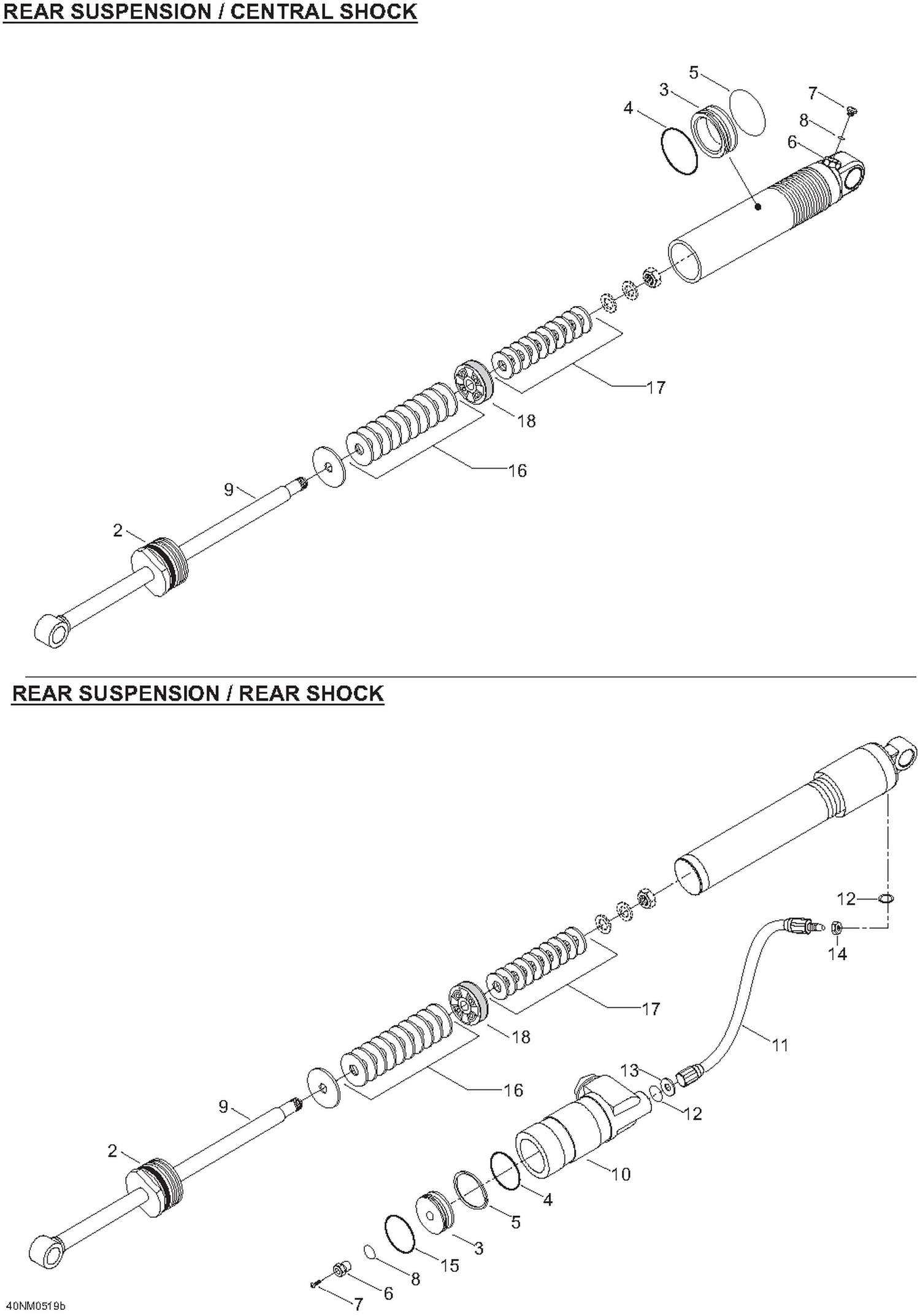

07- Take Apart Shock rear

07- Take Apart Shock rear

Parts (101)

RefPart NumberDescription
2 230060 Seal carrier assy
3 415093812 FREE PISTON - Call your local BRP dealership
3 503189008 FLOTTING PISTON - Call your local BRP dealership
4 415093807 O-Ring
4 503189007 O-RING - Call your local BRP dealership
5 415093806 Piston Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 230046 Rod assy
9 230047 Rod assy
10 230114 Reservoir
11 230111 Hose
12 Not Available As Spare Part - O-ring
13 Not Available As Spare Part - Washer
14 Not Available As Spare Part - Nut
15 Not Available As Spare Part - Stop ring
16 230029 Leaf valve 20x0.114
16 230030 Leaf valve 20x0.152
16 230031 Leaf valve 20x0.203
16 230032 Leaf valve 20x0.254
16 230033 Leaf valve 34x0.114
16 230034 Leaf valve 34x0.152
16 230035 Leaf valve 34x0.203
16 230036 Leaf valve 34x0.254
16 230037 Leaf valve 36x0.114
16 230040 Leaf valve 38x0.152
16 230041 Leaf valve 38x0.203
16 230042 Leaf valve 38x0.254
16 230082 Leaf valve 32x0.114
16 503189011 Leaf valve 22x0.114
16 503189012 Leaf valve 22x0.152
16 503189013 Leaf valve 22x0.203
16 503189014 Leaf valve 22x0.254
16 503189016 Leaf valve 24x0.114
16 503189017 Leaf valve 24x0.152
16 503189018 Leaf valve 24x0.203
16 503189019 Leaf valve 24x0.254
16 503189021 Leaf valve 26x0.114
16 503189022 Leaf valve 26x0.152
16 503189023 Leaf valve 26x0.203
16 503189024 Leaf valve 26x0.254
16 503189026 Leaf valve 28x0.114
16 503189027 Leaf valve 28x0.152
16 503189028 Leaf valve 28x0.203
16 503189029 Leaf valve 28x0.254
16 503189031 Leaf valve 30x0.114
16 503189032 Leaf valve 30x0.152
16 503189033 Leaf valve 30x0.203
16 503189034 Leaf valve 30x0.254
16 503189036 Leaf valve 36x0.152
16 503189037 Leaf valve 36x0.203
16 503189038 Leaf valve 36x0.254
16 503189039 Leaf valve 40x0.114
16 503189040 Leaf valve 40x0.203
16 503189041 Leaf valve 40x0.254
17 230029 Leaf valve 20x0.114
17 230030 Leaf valve 20x0.152
17 230031 Leaf valve 20x0.203
17 230032 Leaf valve 20x0.254
17 230033 Leaf valve 34x0.114
17 230034 Leaf valve 34x0.152
17 230035 Leaf valve 34x0.203
17 230036 Leaf valve 34x0.254
17 230037 Leaf valve 36x0.114
17 230040 Leaf valve 38x0.152
17 230041 Leaf valve 38x0.203
17 230042 Leaf valve 38x0.254
17 230082 Leaf valve 32x0.114
17 503189011 Leaf valve 22x0.114
17 503189012 Leaf valve 22x0.152
17 503189013 Leaf valve 22x0.203
17 503189014 Leaf valve 22x0.254
17 503189016 Leaf valve 24x0.114
17 503189017 Leaf valve 24x0.152
17 503189018 Leaf valve 24x0.203
17 503189019 Leaf valve 24x0.254
17 503189020 Leaf valve 24x0.305
17 503189021 Leaf valve 26x0.114
17 503189022 Leaf valve 26x0.152
17 503189023 Leaf valve 26x0.203
17 503189024 Leaf valve 26x0.254
17 503189026 Leaf valve 28x0.114
17 503189027 Leaf valve 28x0.152
17 503189028 Leaf valve 28x0.203
17 503189029 Leaf valve 28x0.254
17 503189031 Leaf valve 30x0.114
17 503189032 Leaf valve 30x0.152
17 503189033 Leaf valve 30x0.203
17 503189034 Leaf valve 30x0.254
17 503189036 Leaf valve 36x0.152
17 503189037 Leaf valve 36x0.203
17 503189038 Leaf valve 36x0.254
17 503189039 Leaf valve 40x0.114
17 503189040 Leaf valve 40x0.203
17 503189041 Leaf valve 40x0.254
18 230038 Piston 1.7 mm
18 230039 Piston 2.0 mm
18 230044 Piston 1.2 mm
18 230110 Piston 2.2 mm
