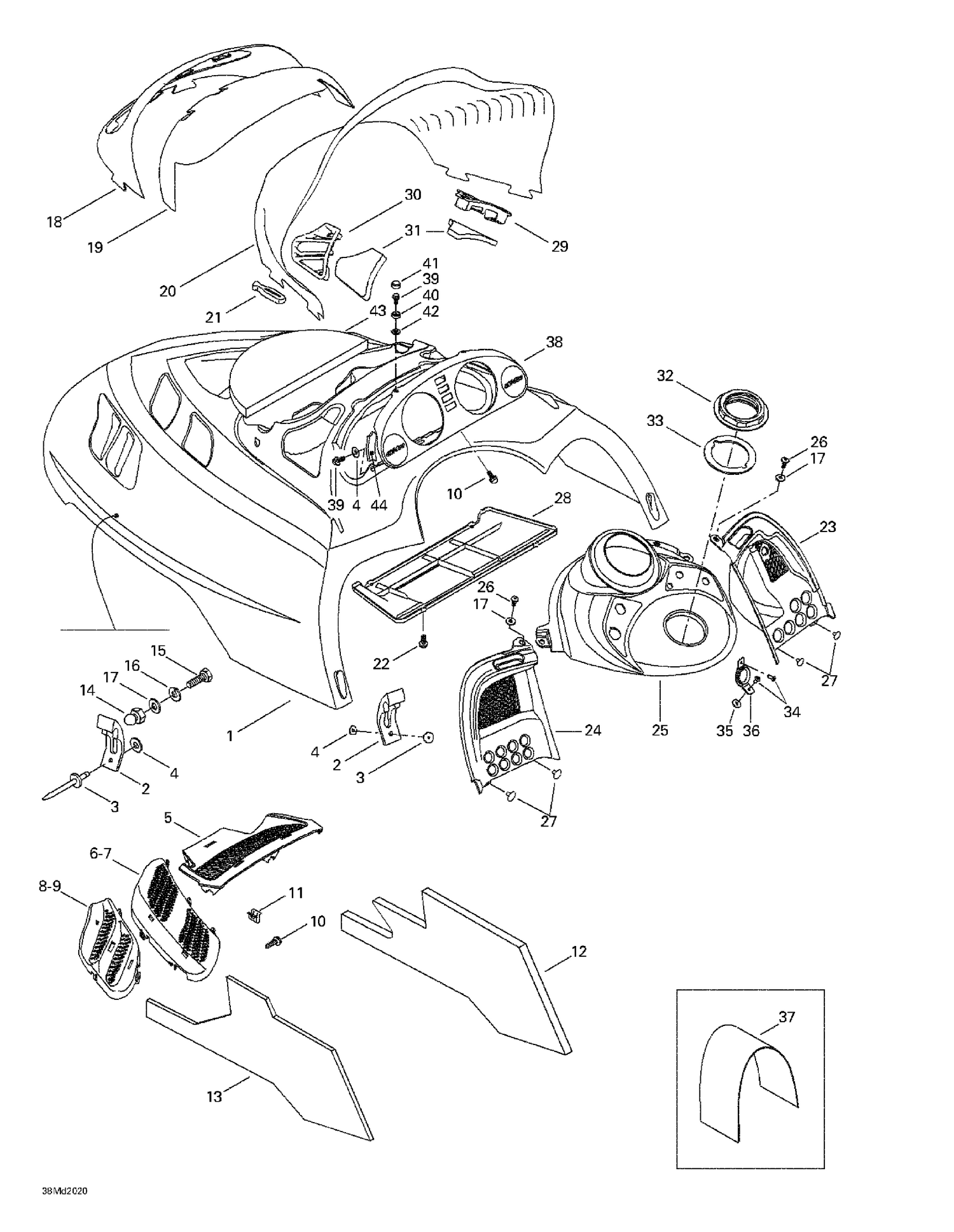

09- Cab, Console
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302411 | Hood |
| 2 | 570027100 | Hood Latch |
| 3 | 390906800 | Pop Rivet 3/16" |
| 4 | 517124300 | Washer |
| 5 | 517302026 | CENTER GRILL, BLACK - Call your local BRP dealership |
| 6 | 517302028 | RH Intermediate Grill, Black |
| 7 | 517302031 | LH Intermediate Grill, Black |
| 8 | 517302034 | RH Side Grille |
| 9 | 517302036 | LH Side Grille |
| 10 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 11 | 517302785 | Edge Clip This part replaces 517302183. |
| 12 | 517302371 | RH Side Foam |
| 13 | 517302372 | LH Side Foam |
| 14 | 517245800 | Knob |
| 15 | 207151444 | Hex. Screw M5 X 14 |
| 16 | 234151401 | Lock Washer 5 mm |
| 17 | 391301600 | Washer |
| 18 | 517302158 | HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 19 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 20 | 517302002 | Low Windshield |
| 21 | 570023800 | Windshield Latch |
| 22 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 23 | 517302027 | RH CONSOLE - Call your local BRP dealership |
| 24 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 25 | 517302377 | Center Console |
| 26 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 27 | 390406500 | Pop Rivet 3/16" |
| 28 | 517302413 | Air Intake Plate |
| 29 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 30 | 517302025 | LH AIR INTAKE GRILL - Call your local BRP dealership |
| 31 | 517302151 | Air Intake Foam |
| 32 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 33 | 293250029 | Gasket |
| 34 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 35 | 517302286 | Rubber Stopper |
| 36 | 517302129 | Rope Guide |
| 37 | 517302253 | Tank Cover |
| 38 | 572098605 | Indicator Support |
| 39 | 241140060 | Screw K40 X 10 |
| 40 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 41 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 42 | 234042600 | Flat Washer 4 mm, Stainless |
| 43 | 517302317 | CENTER FOAM - Call your local BRP dealership |
