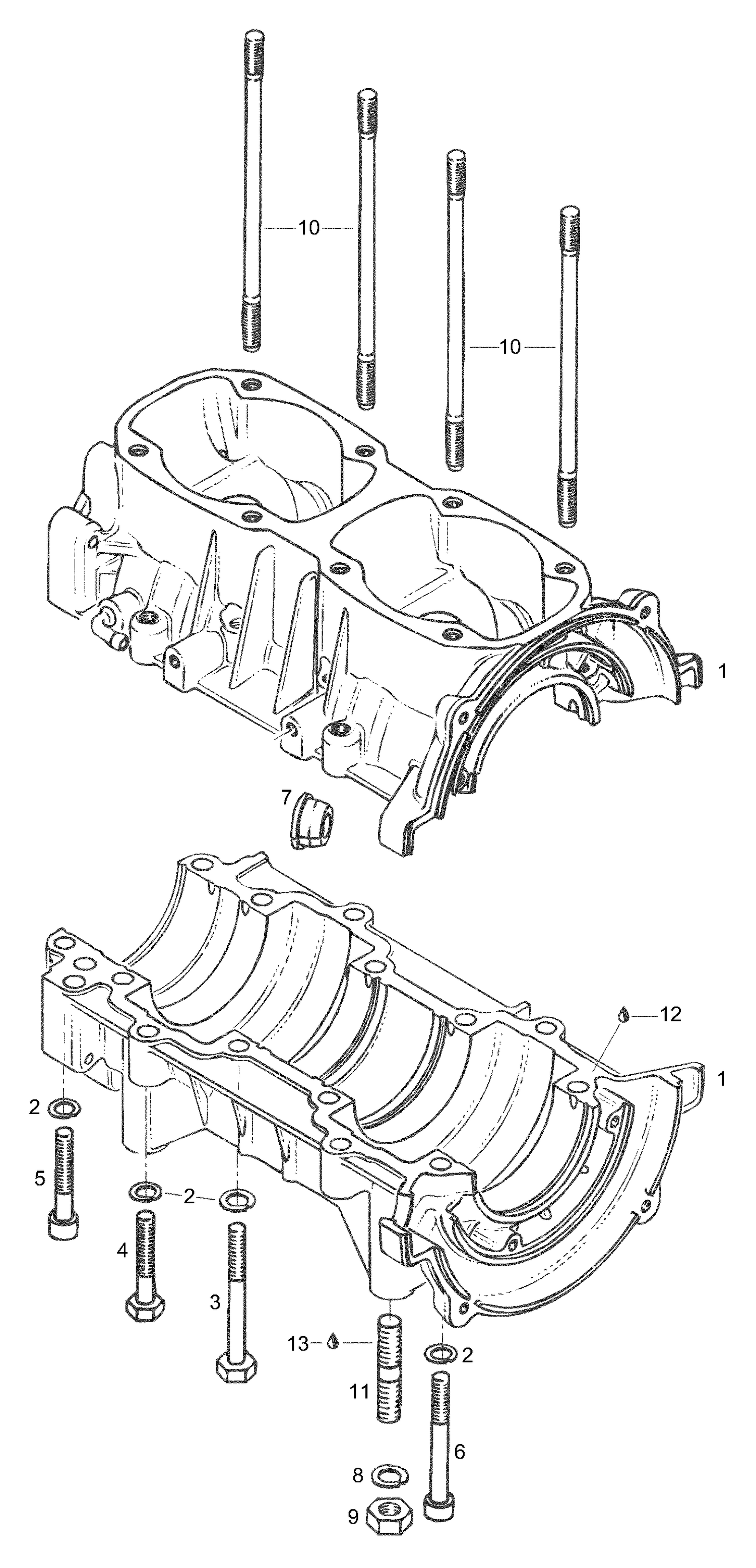

05- Crankcase
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 20014 | Spring washer |
| 3 | 420841201 | Screw M8x70 |
| 4 | 207084544 | Hex. Screw M8 X 45 This part replaces 420940631. |
| 5 | 420841561 | Allen screw M8x45 |
| 6 | 420841841 | SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 8 | 420945753 | Lock washer |
| 9 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 10 | 420840556 | Stud M8 |
| 11 | 420940190 | Stud M10 |
| 12 | 420899784 | Loct 574/orange/50 |
