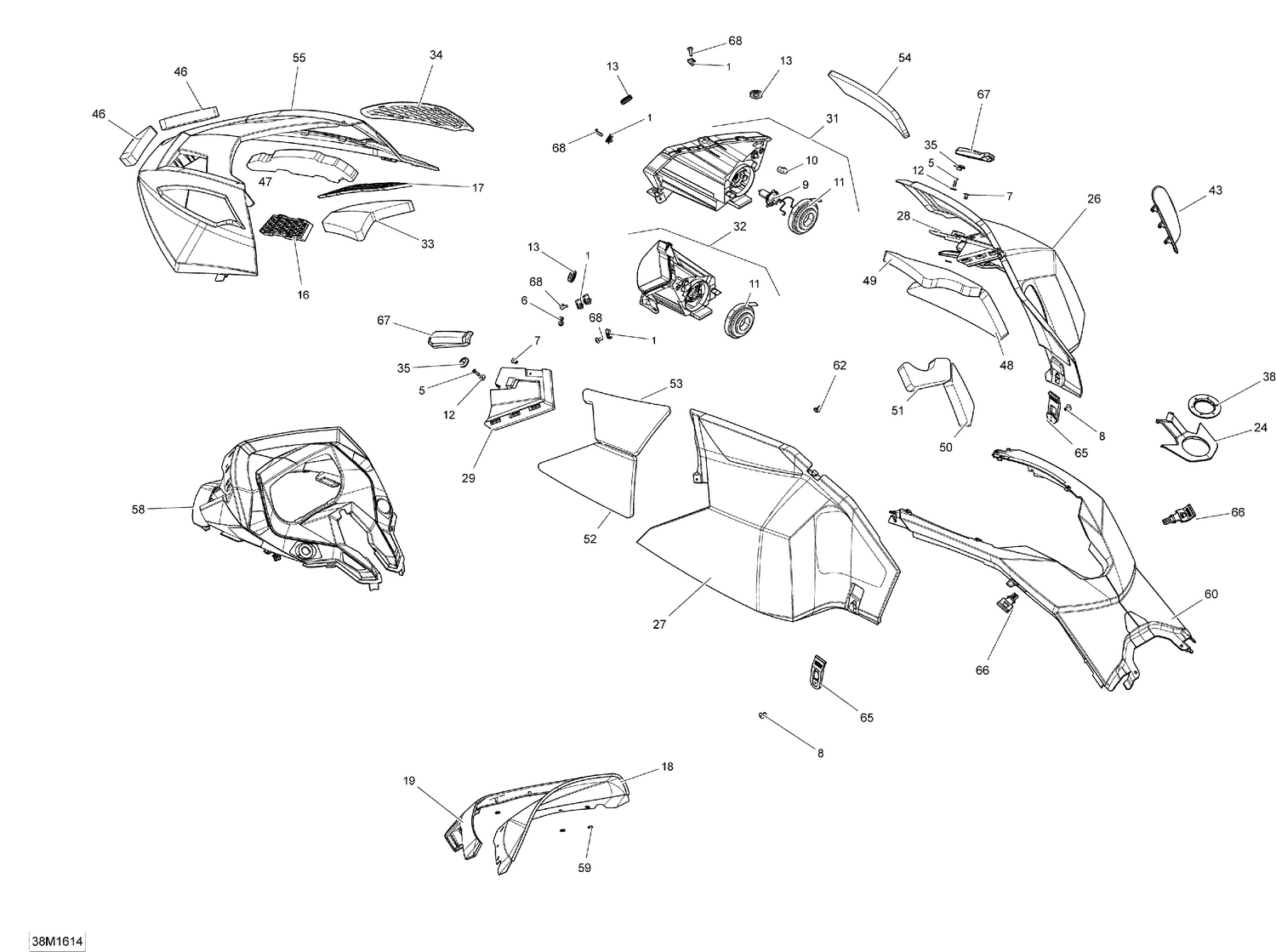

09- Hood
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2 | 250200024 | Rubber Washer 5 mm |
| 3 | 250200025 | Washer M5 |
| 4 | 275500241 | Black, Cap |
| 5 | 293150014 | Pop Rivet 3/16" |
| 6 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 7 | 293150104 | Pop Rivet 3/16" |
| 8 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 10 | 515176498 | Cap |
| 11 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 12 | 517124300 | Washer |
| 13 | 517303756 | Grommet |
| 16 | 517303804 | LH Hood Grille |
| 17 | 517303805 | RH Hood Grille |
| 18 | 517303888 | Low Windshield (250) |
| 19 | 860200228 | LOW WINDSHIELD SUPPORT - Call your local BRP dealership |
| 24 | 517304027 | Deep Black, Cap Console |
| 26 | 517305710 | PANEL_BODY RH B-370 - Call your local BRP dealership |
| 27 | 517305712 | PANEL_BODY LH B-370 - Call your local BRP dealership |
| 28 | 517304090 | RH Insert |
| 29 | 517304092 | LH Panel Insert |
| 31 | 517304194 | RH Headlamp Ass'y |
| 32 | 517304195 | LH Headlamp Ass'y |
| 33 | 517304877 | Foam Hood |
| 34 | 517304279 | RH Lateral Hood Grille |
| 35 | 517304320 | Anchor Link |
| 38 | 517304518 | Console Nut |
| 43 | 517304701 | Black, RH Console |
| 46 | 517304879 | Foam Hood |
| 47 | 517304878 | Foam Hood |
| 48 | 517304870 | Foam |
| 49 | 517304871 | Foam |
| 50 | 517304872 | Foam |
| 51 | 517304873 | Foam |
| 52 | 517304874 | Foam |
| 53 | 517304875 | Foam |
| 54 | 517304876 | Foam |
| 55 | 517305273 | HOOD B-160 - Call your local BRP dealership |
| 58 | 517305708 | INDICATOR SUPPORT - Call your local BRP dealership |
| 59 | 732610072 | Push Nut |
| 60 | 517303741 | Black Console |
| 62 | 250000725 | Screw M4 X 16 |
| 65 | 517304999 | Rear Panel Latch |
| 66 | 517304093 | Center Panel Latch |
| 67 | 517305186 | Front Latch Panel |
