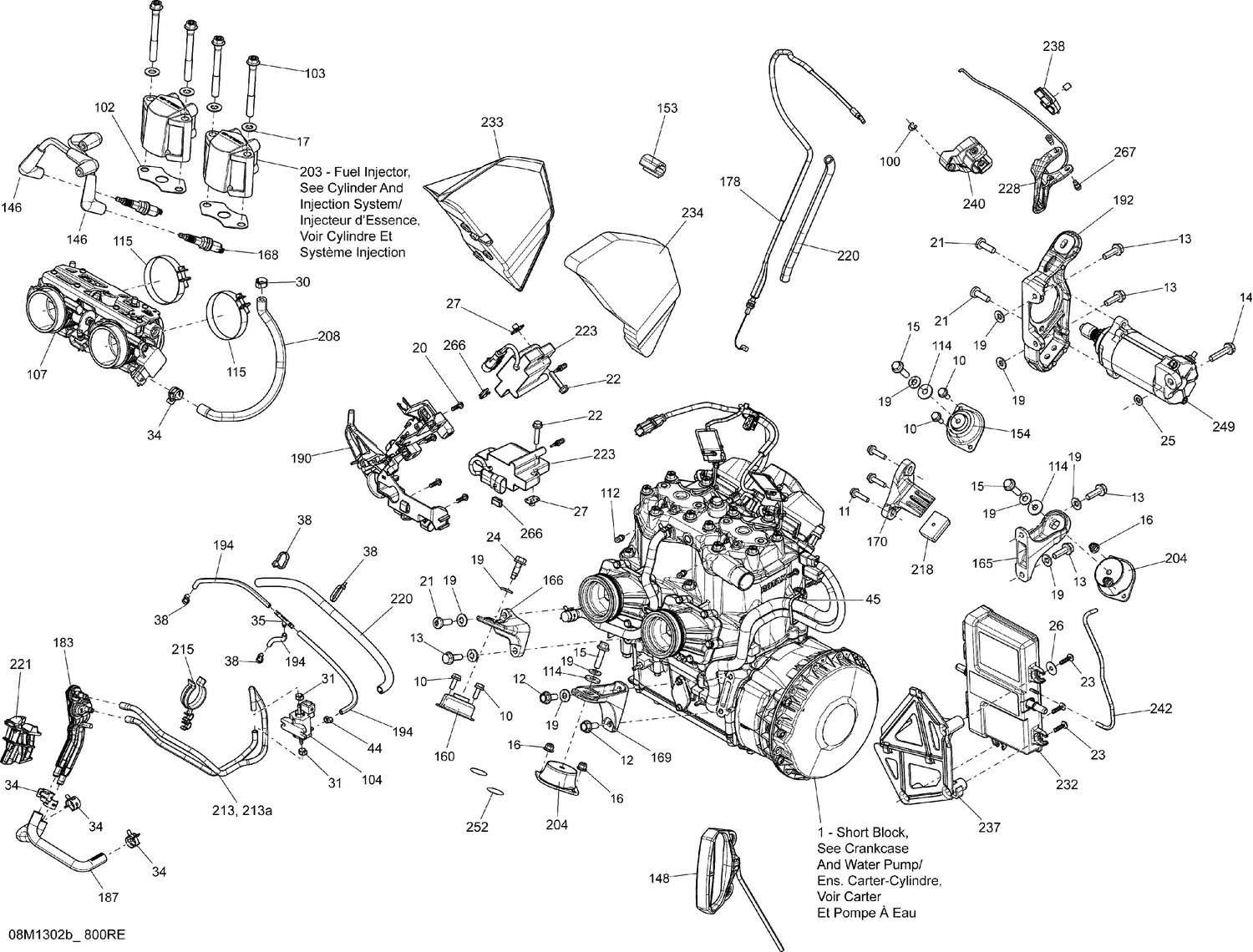

| Ref | Part Number | Description |
|---|
| 10 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 11 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 12 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 13 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 15 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
234001410 |
Flat Washer 10 mm |
| 19 |
250200146 |
Conical Spring Washer M8 |
| 20 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 21 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 22 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 23 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 24 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570. |
| 26 |
250200040 |
Flat Washer |
| 27 |
293100003 |
Nut Welded, M6 |
| 30 |
293650046 |
Oetiker Clamp |
| 31 |
293650043 |
Oetiker Gear Clamp |
| 34 |
293650214 |
Norma Spring Clamp |
| 35 |
293710068 |
T-Fitting |
| 38 |
293750001 |
Tie Wrap 94 mm |
| 45 |
293750008 |
Tie Wrap 368 mm |
| 100 |
414274500 |
Circlip |
| 102 |
420430930 |
Gasket |
| 103 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 104 |
270600005 |
Solenoid Valve This part replaces 512060774. |
| 112 |
420924724 |
Hose Nipple |
| 114 |
503183200 |
Yellow, Washer |
| 146 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. |
| 153 |
512060313 |
Protector |
| 154 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 160 |
512060448 |
Rubber Mount |
| 165 |
512060469 |
Front Support, MAG |
| 166 |
512060478 |
Rear Support, PTO |
| 169 |
512060559 |
Rear Support, MAG |
| 170 |
512060576 |
Stopper Support |
| 183 |
512060692 |
Manifold |
| 187 |
512060694 |
RH Formed Hose |
| 187 |
512060695 |
LH Formed Hose |
| 194 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 204 |
512060729 |
Rubber Mount |
| 208 |
512060944 |
Bleeder's Collector Outlet Hose This part replaces 512060732. |
| 213 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 213a |
512060814 |
SPRING - Call your local BRP dealership |
| 215 |
512060762 |
HOSE SUPPORT - Call your local BRP dealership |
| 220 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 223 |
512060953 |
Ignition Coil This part replaces 512060810. |
| 228 |
512061250 |
Handle Ass'y This part replaces 512060815. |
| 233 |
512060847 |
Noise Shield |
| 234 |
512060958 |
Inner Acoustic Foam This part replaces 512060849. |
| 237 |
512060858 |
Calibrated Module Support |
| 238 |
512060859 |
Upper Housing |
| 240 |
512060860 |
Lower Housing |
| 242 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 252 |
518325560 |
Adhesive Patch |
| 266 |
710000992 |
Clip |
