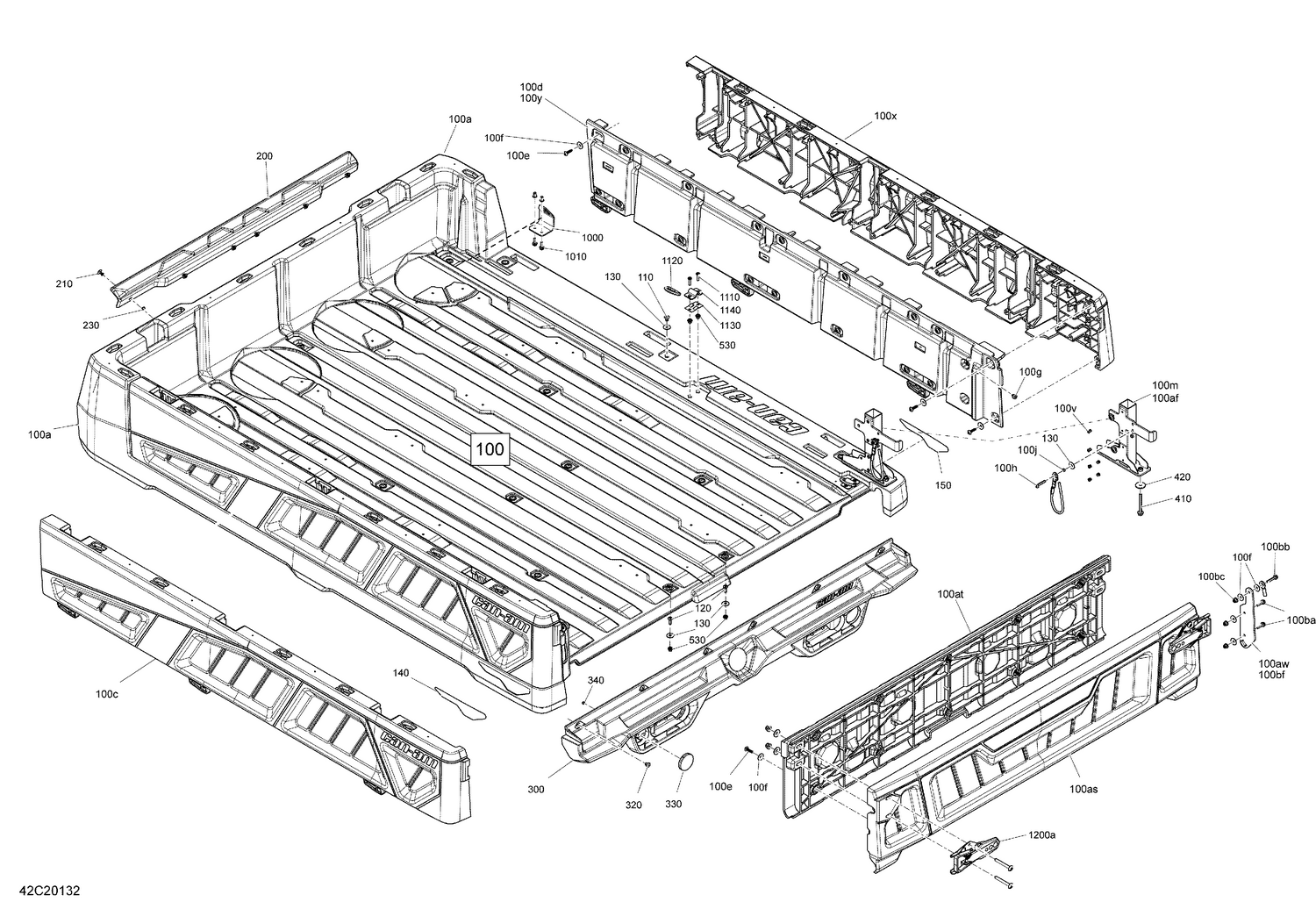

09- Rear Cargo Box
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715007479 | Cargo Box Inside Ass'y This part replaces 715007281. |
| 100a | 715007479 | Cargo Box Inside Ass'y This part replaces 708303498. |
| 100af | 708304596 | RH Panel Support This part replaces 708303049. |
| 100aw | 708303138 | LH Tailgate Support |
| 100ba | 207662554 | Hex. Flange Screw M6 X 25 |
| 100bb | 207663554 | Hex. Flange Screw M6 X 35 |
| 100bc | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100bf | 708303141 | RH Tailgate Support |
| 100e | 250000980 | Hex. Screw Pt K60 X 25 |
| 100f | 250200162 | Flat Washer M6.6 X 22 |
| 100g | 293830005 | Rubber Bumper |
| 100h | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100j | 293900101 | Bushing |
| 100m | 708304595 | LH Panel Support This part replaces 708303048. |
| 100v | 390402000 | Pop Rivet 3/16" |
| 110 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 120 | 250000722 | Torx Screw M6 X 20 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 140 | 708303264 | LH Rear Reflector |
| 150 | 708303265 | RH Rear Reflector |
| 200 | 708303216 | Deflector |
| 210 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 230 | 517124300 | Washer |
| 300 | 708303496 | Taillight Support |
| 320 | 293150104 | Pop Rivet 3/16" |
| 330 | 705011221 | Red Reflector |
| 340 | 232551414 | Elastic Stop Nut M5 |
| 410 | 207587044 | Hex. Flange Screw M8 X 70 |
| 420 | 250200187 | Flat Washer M8 |
| 530 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1000 | 708301480 | Retaining Plate |
| 1010 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1110 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 1120 | 708302990 | D-Ring |
| 1130 | 708302991 | Tie-Down Ring Spring |
| 1140 | 708302992 | Tie-Down Ring Bracket |
