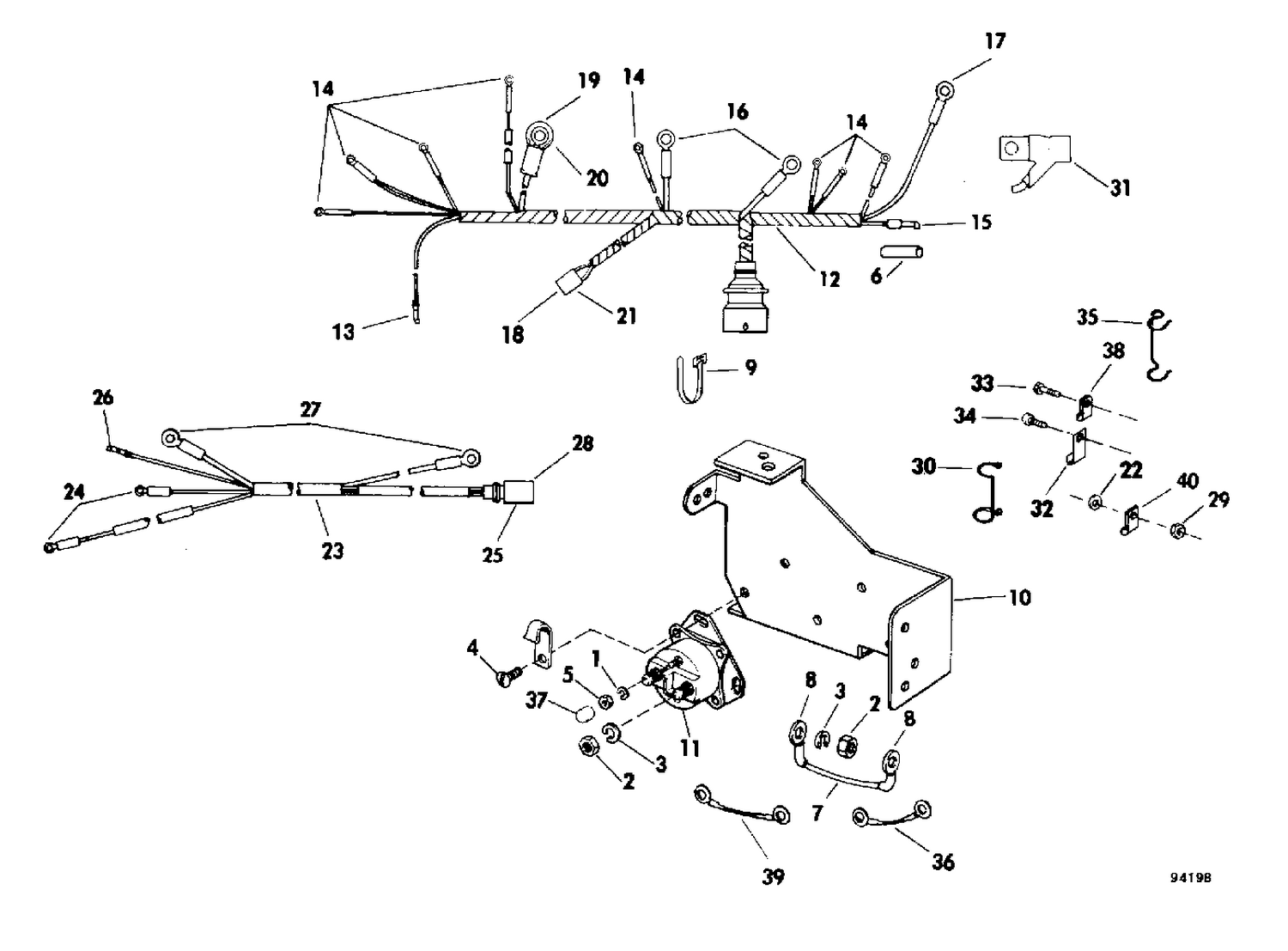

SOLENOID & CABLE GROUP 250 SELECTRIM MODEL
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0317753 | SCREW |
| 6 | 0314936 | HEAT SHRINK |
| 7 | 0981856 | LEAD ASSEMBLY |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | 0909909 | BRACKET, Solenoids |
| 11 | 0586842 | SOLENOID This part replaces 0981703. |
| 11 | 0985063 | SOLENOID This part replaces 0981410. |
| 12 | 0981886 | CABLE ASSY |
| 15 | 0314844 | KNIFE DISCONNECT |
| 18 | 0510469 | TAB |
| 21 | 0510471 | CONNECTOR |
| 22 | 0302401 | WASHER |
| 23 | 0981887 | CABLE ASSY |
| 31 | 0981848 | FUSE & LEAD ASSY, Tilt |
| 31 | 0981849 | FUSE & LEAD ASSY |
| 33 | 0311725 | SCREW |
| 36 | 0981890 | LEAAD ASSY |
| 37 | 0909017 | NUT |
| 38 | 0909424 | CLAMP |
| 39 | 0981822 | LEAD ASSY, Starter |
