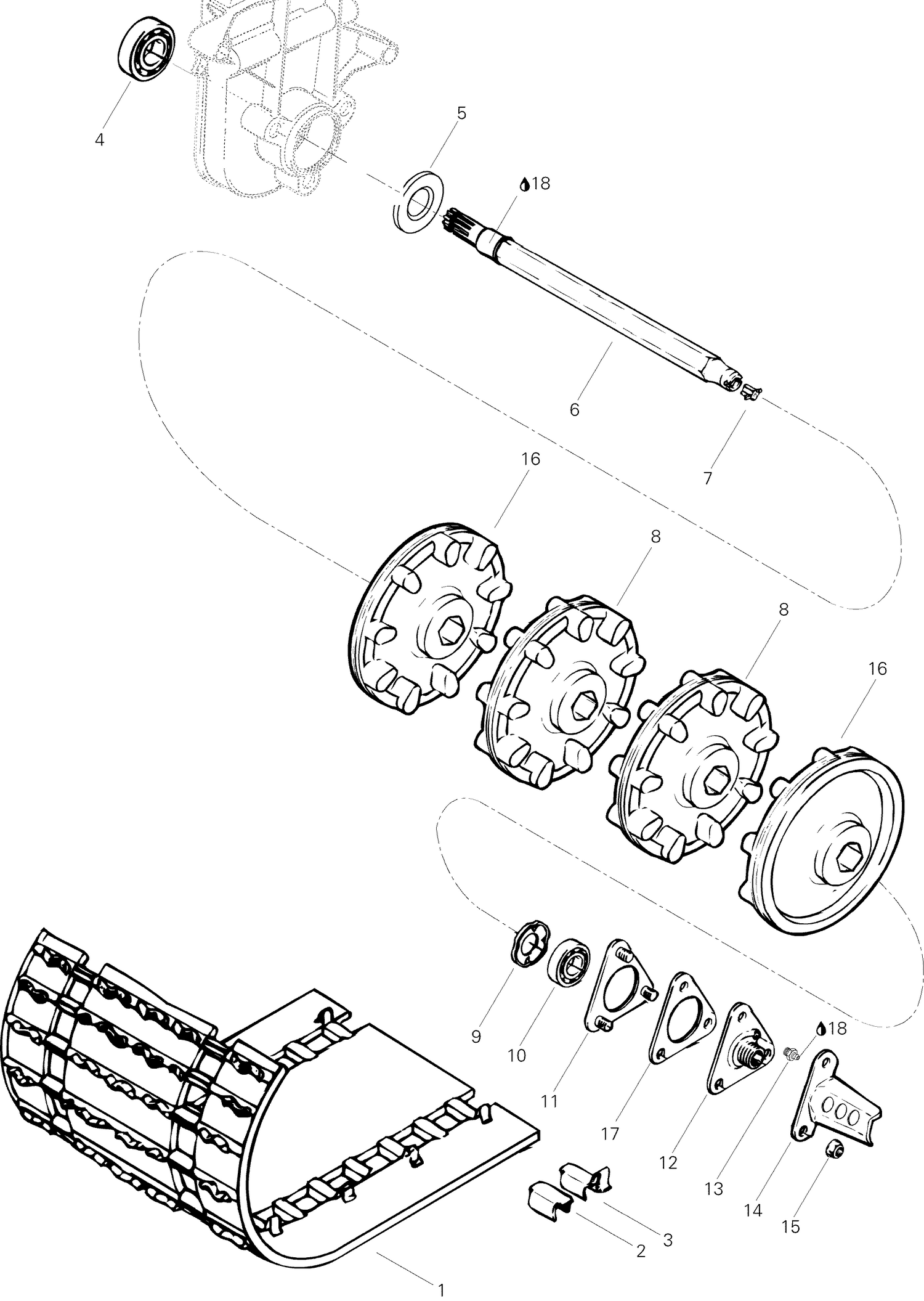

| Ref | Part Number | Description |
|---|
| 1 |
504152485 |
Track 15" X 121" X 0.88" Ass'y This part replaces 570209000. |
| 2 |
504152651 |
Cleat This part replaces 500003300. |
| 3 |
415129528 |
Track Guide This part replaces 500003400. |
| 4 |
405403900 |
Ball Bearing 6206 |
| 5 |
504151925 |
OIL SEAL - Call your local BRP dealership This part replaces 581056500. |
| 6 |
501025300 |
Drive Axle |
| 7 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 8 |
414663900 |
Barbotin 9 dents |
| 9 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 10 |
293350115 |
Ball Bearing This part replaces 405404400. |
| 11 |
501017800 |
Retainer Ring |
| 13 |
408200700 |
Grease Fitting |
| 14 |
517243600 |
Cable Protector |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 17 |
501022200 |
Spacer |
