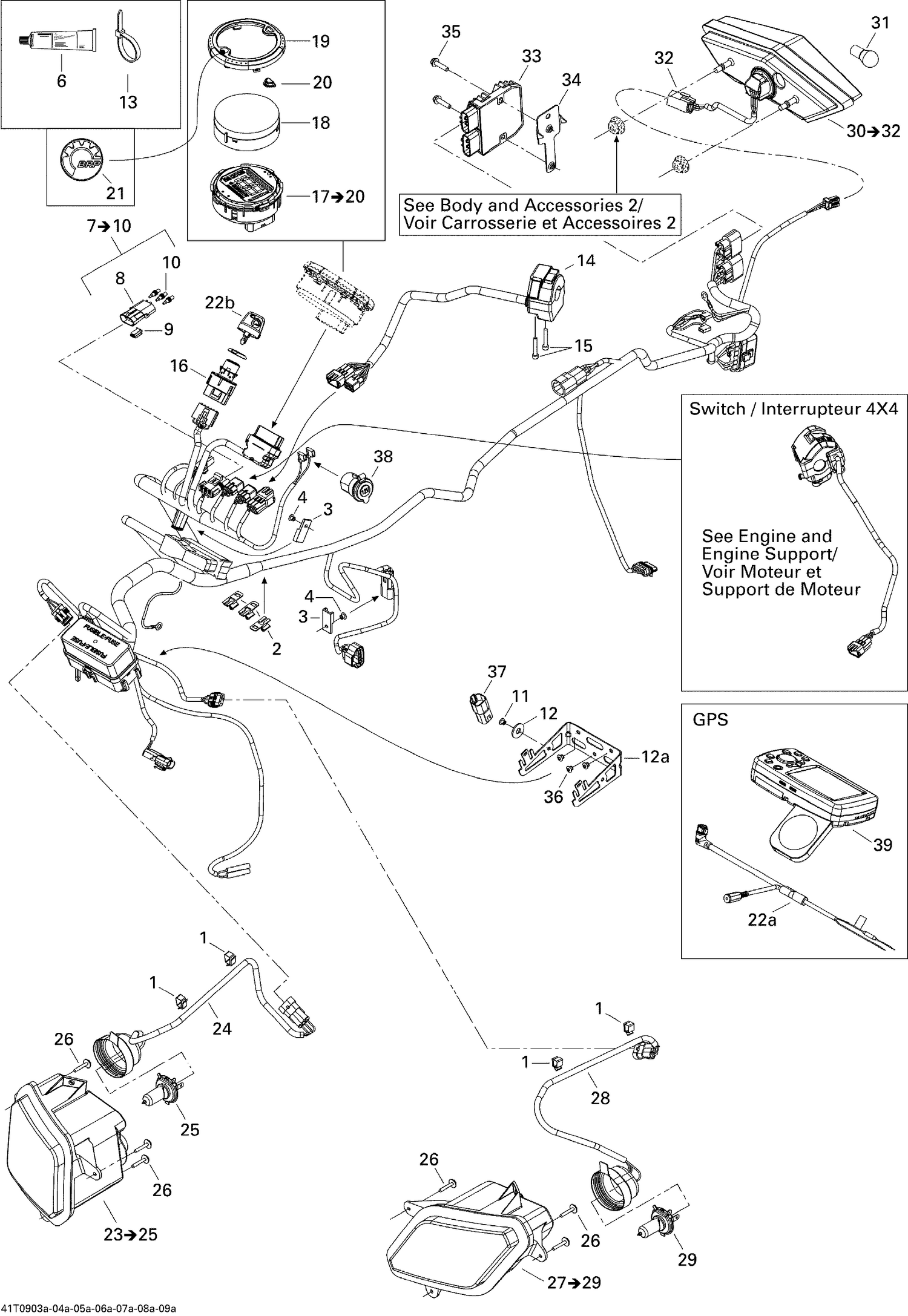

10- Electrical Accessories 1, XT
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414227300 | Clip |
| 2 | 515175283 | Housing Support |
| 3 | 270000141 | Clip |
| 4 | 390402400 | Pop Rivet 3/16" |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 8 | 278000281 | Female Terminal Housing, 3 Circuits |
| 9 | 710000992 | Clip |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 390402300 | Pop Rivet 3/16" |
| 12 | 517124300 | Washer |
| 12a | 710002176 | FUSE SUPPORT - Call your local BRP dealership This part replaces 710001263. |
| 13 | 293750001 | Tie Wrap 94 mm |
| 13 | 293750008 | Tie Wrap 368 mm |
| 13 | 293750009 | Tie-Rap 173 mm |
| 13 | 414115200 | Tie-Rap 180 mm |
| 16 | 710002324 | Ignition Switch This part replaces 710001421. |
| 18 | 415129320 | Lens |
| 19 | 710001416 | Trim Ring |
| 20 | 710001473 | Button |
| 21 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 22a | XXX | Not Available As Spare Parts |
| 33 | 710001103 | Voltage Regulator |
| 34 | 710001262 | RECTIFIER SUPPORT - Call your local BRP dealership |
| 35 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 36 | 390402400 | Pop Rivet 3/16" |
| 37 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 38 | 710001248 | DC Outlet |
