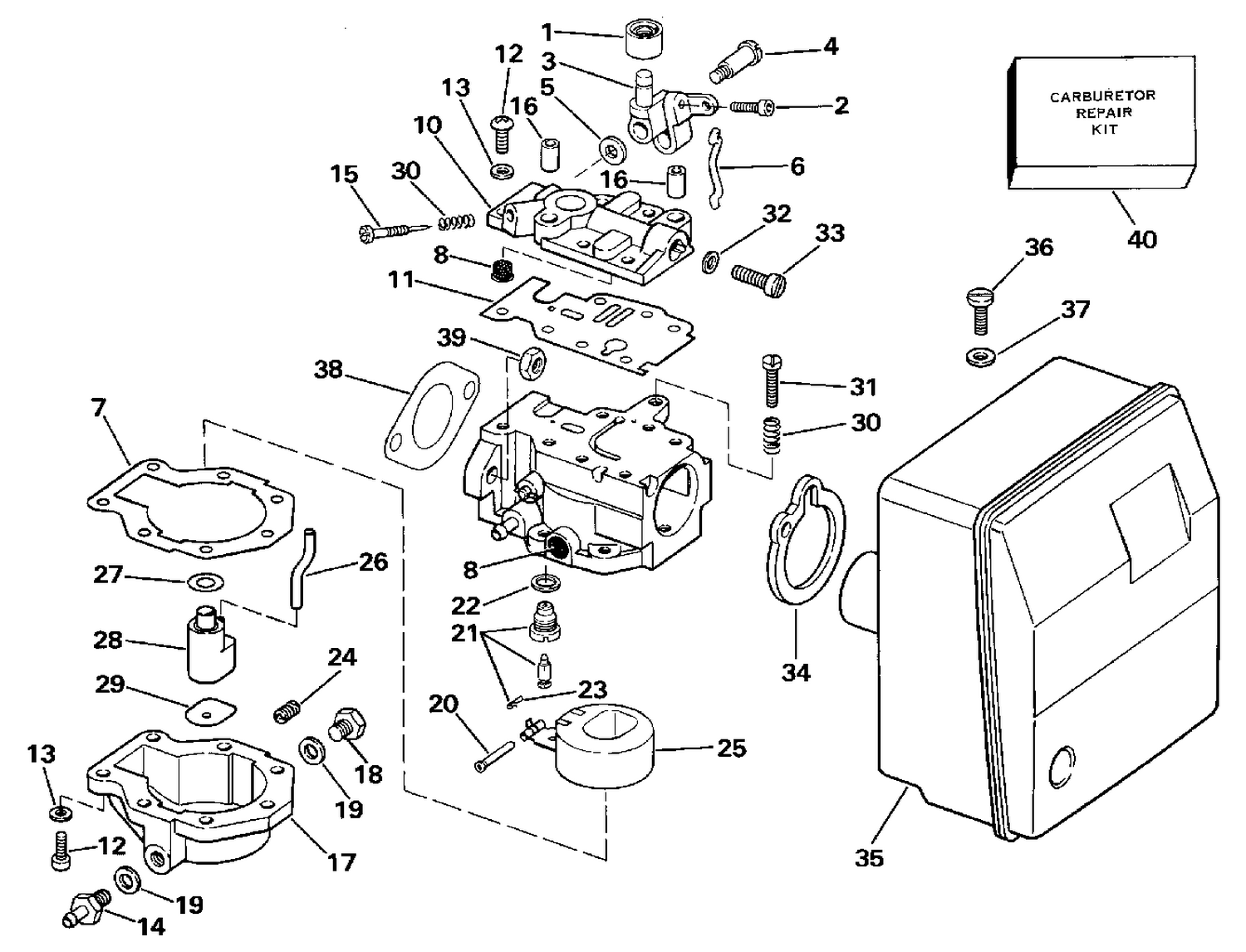

CARBURETOR
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 0334049 | COVER, Carb. body |
| 11 | 0334043 | GASKET, Cover |
| 13 | 0331831 | WASHER |
| 15 | 0334042 | NEEDLE VALVE, Slow speed |
| 16 | 0334047 | SLEEVE, Cover |
| 17 | 0398068 | FLOAT CHAMBER |
| 23 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 26 | 0336567 | FLEX TUBE This part replaces 0331740. |
| 27 | 0338883 | GASKET, Upper This part replaces 0333347. |
| 28 | 0396605 | NOZZLE WELL |
| 28 | 0397189 | NOZZLE WELL |
| 29 | 0333348 | GASKET, Cover to housing |
| 34 | 0331780 | SEAL, Air silencer to carb |
| 35 | 0396564 | AIR SILENCER |
| 36 | 0331758 | SCREW, Air horn to carburetor |
| 38 | 0318932 | JOINT |
| 39 | 0328742 | NUT |
| 0432665 | 0432665 | CARBURETOR ASSY. |
| 0433469 | 0433469 | CARBURETOR ASSY. |
