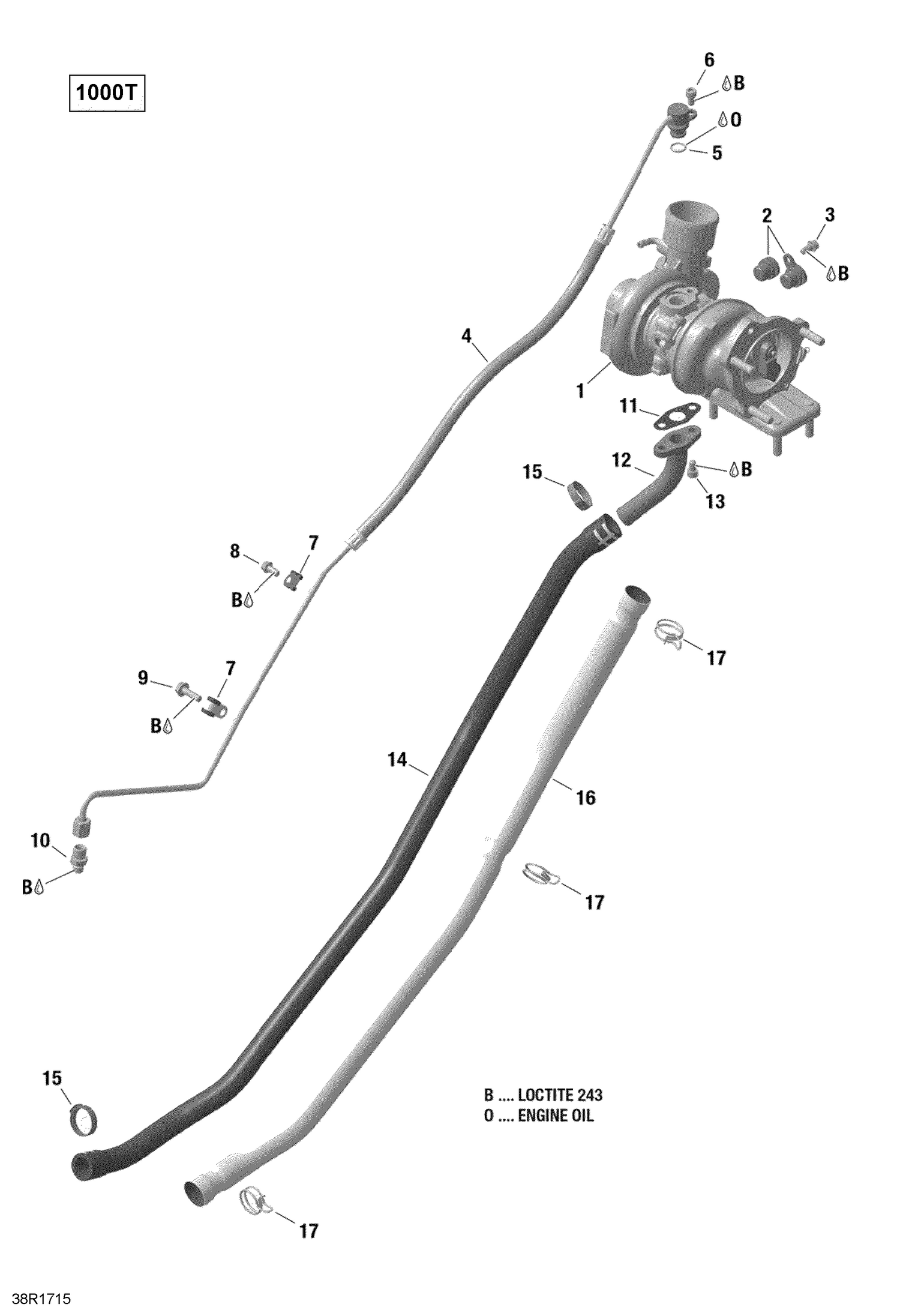

01- Turbocharger
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420893840 | Turbocharger |
| 2 | 420622030 | PLUG - Call your local BRP dealership |
| 3 | 420440149 | Hex. Flange Screw M6 X 12 |
| 5 | 420650928 | O-Ring |
| 6 | 420440164 | Torx Flange Screw M6 X 16 |
| 8 | 420440149 | Hex. Flange Screw M6 X 12 |
| 9 | 420441311 | Hex.Screw M6 X 20 |
| 10 | 420456420 | Adapter M10/M12 |
| 11 | 420631205 | Gasket |
| 12 | 420456400 | OIL TUBE - Call your local BRP dealership |
| 13 | 420440164 | Torx Flange Screw M6 X 16 |
| 14 | 420456360 | RETURN OIL LINE - Call your local BRP dealership |
| 15 | 420851668 | Gear Clamp |
| 16 | 420860652 | PROTECTION TUBE - Call your local BRP dealership |
