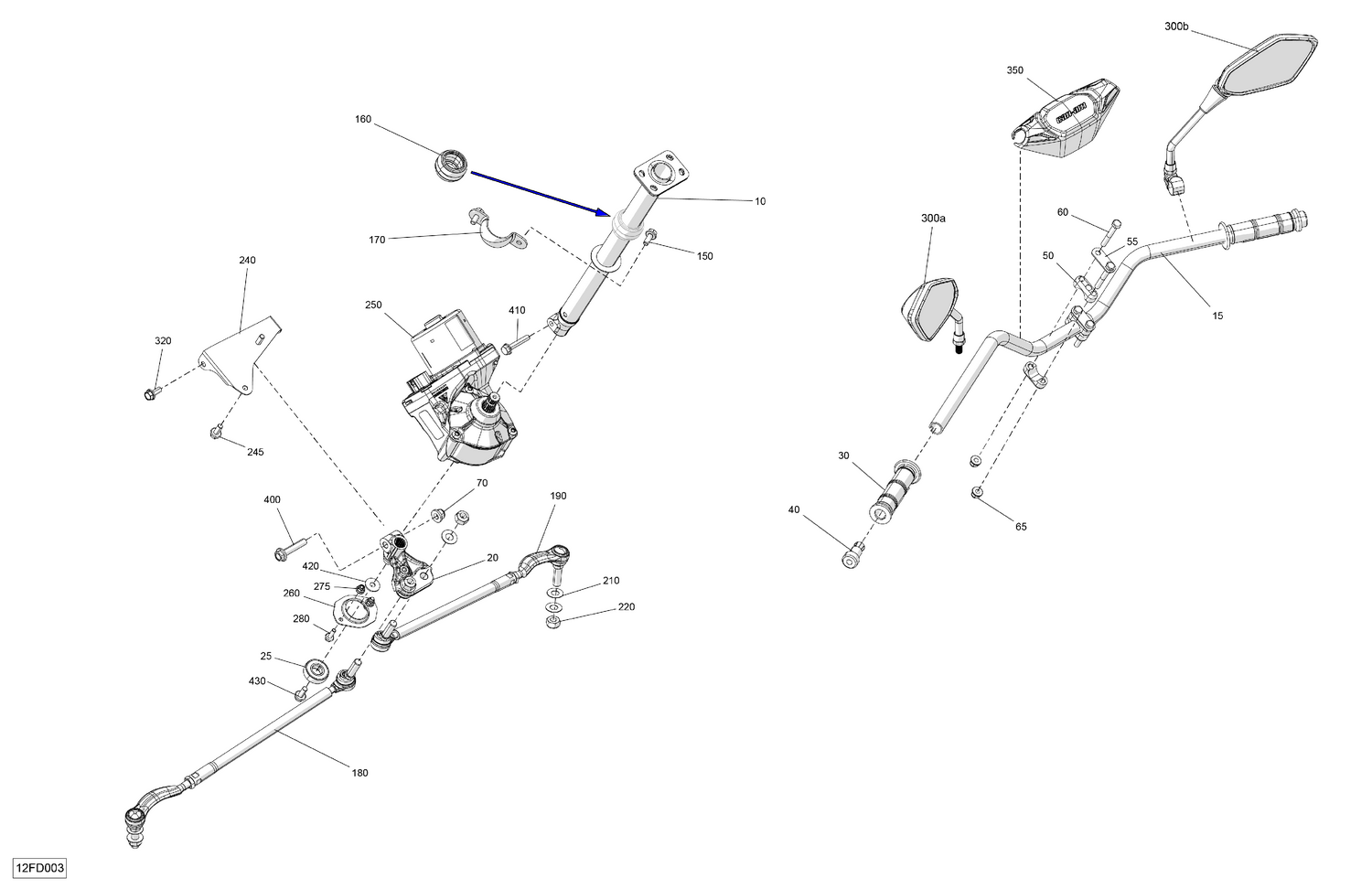

03- Mechanic - Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402739 | Steering Column |
| 15 | 709402551 | Handlebar |
| 20 | 709402991 | Pitman Arm |
| 25 | 709402499 | Ball Bearing |
| 30 | 709400493 | Handle Grip |
| 40 | 709400449 | End Piece |
| 50 | 709401799 | Steering Support |
| 55 | 709400509 | Stiffner |
| 60 | 207086046 | Hex. Screw M8 X 60 |
| 65 | 233281416 | Hex. Elastic Flange Nut M8 |
| 70 | 233201436 | Hex. Flange Elastic Nut M10 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 709402169 | Spherical Bushing |
| 170 | 709400827 | Upper Column Attachment |
| 180 | 709402826 | LH Tie Rod |
| 190 | 709402827 | RH Tie Rod |
| 210 | 706200281 | Hardened Washer |
| 220 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 240 | 709402182 | Power Steering Support |
| 245 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 250 | 709403187 | Power Steering Ass'y This part replaces 709402718. |
| 260 | 709402360 | Lower Bearing Support |
| 275 | 233261466 | Hex. Flange Elastic Nut M6 |
| 280 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a | 708200963 | LH Rearview Mirror |
| 300b | 708201092 | RH Rearview Mirror |
| 320 | 207682044 | Hex. Flange Screw M8 X 20 |
| 350 | 709402570 | Handlebar Trim |
| 400 | 207505046 | Hex. Flange Screw M10 X 50, Scotch Grip |
| 410 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 420 | 234082410 | Flat Washer 8 mm |
