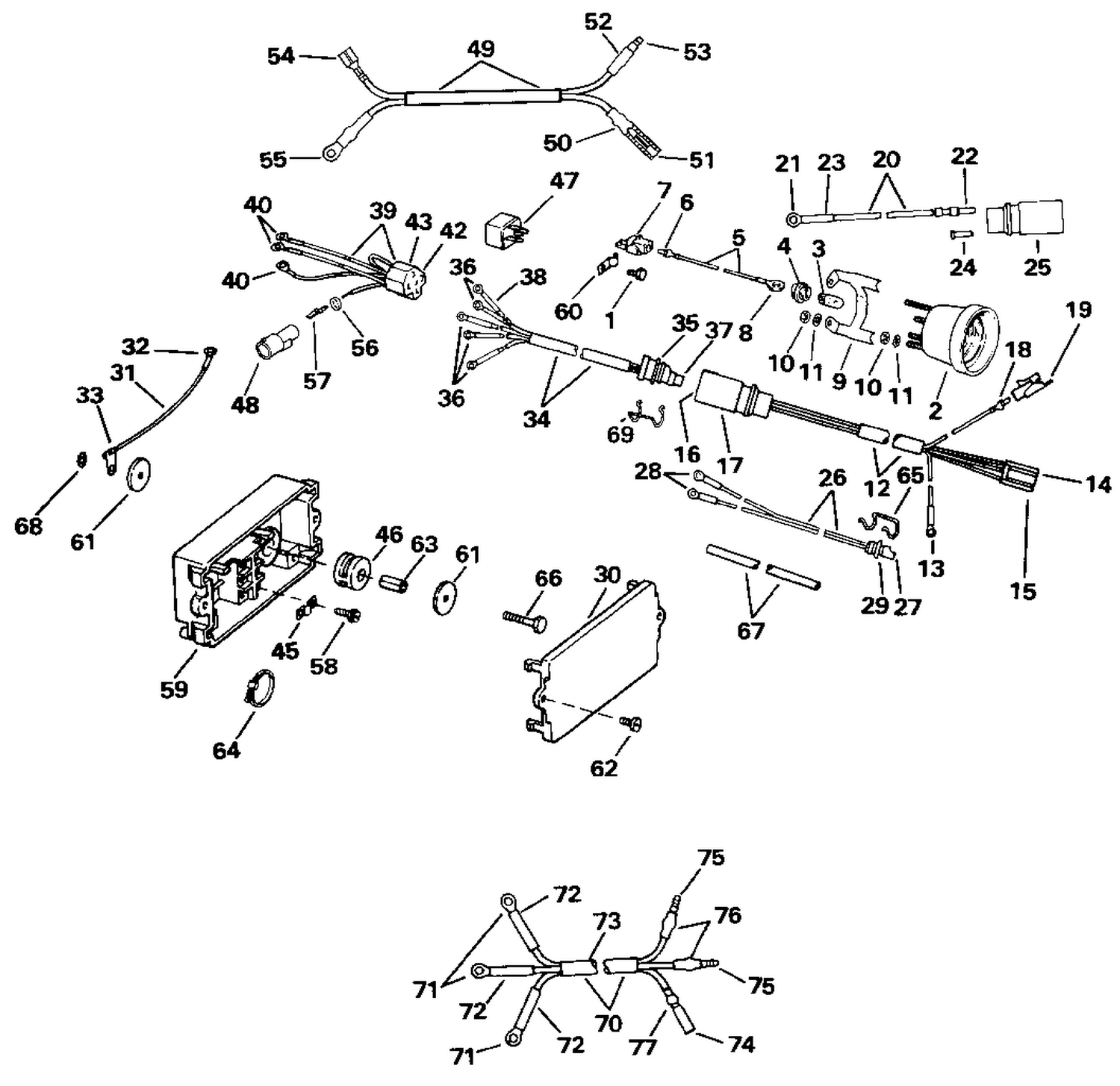

| Ref | Part Number | Description |
|---|
| 2 |
0583653 |
TRIM GAUGE |
| 5 |
0583255 |
LEAD ASSEMBLY |
| 12 |
0583207 |
CABLE ASSY., Switch & gauge |
| 18 |
0512904 |
BULLET TERMINAL |
| 20 |
0582093 |
LEAD ASSY |
| 26 |
0583105 |
CABLE ASSY., Sending unit |
| 30 |
0583707 |
COVER ASSY |
| 31 |
0582671 |
LEAD ASSY. Junction box ground |
| 34 |
0583158 |
CONNECTOR |
| 39 |
0584361 |
CONNECTOR ASSY., Blue leads |
| 39 |
0584362 |
CONNECTOR ASSY., Green leads |
| 45 |
0315004 |
FIL DE LIAISON, bornier |
| 46 |
0315057 |
MOUNT, Bracket |
| 49 |
0584303 |
CABLE ASSY., Junction box to tilt limit swit h |
| 58 |
0329182 |
VIS, borne |
| 59 |
0512776 |
BASE Junction box |
| 60 |
0317000 |
COLLIER, câble |
| 62 |
0329182 |
VIS, borne |
| 63 |
0331984 |
CLAMP, Hose |
| 64 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 65 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 66 |
0303398 |
VIS, support |
| 69 |
0512743 |
DISPOSITIF DE RETENUE |
| 70 |
0583909 |
CABLE, Junction box switch |
| 0584179 |
0584179 |
JUNCTION BOX & COVER ASSY. |
