Parts Catalog

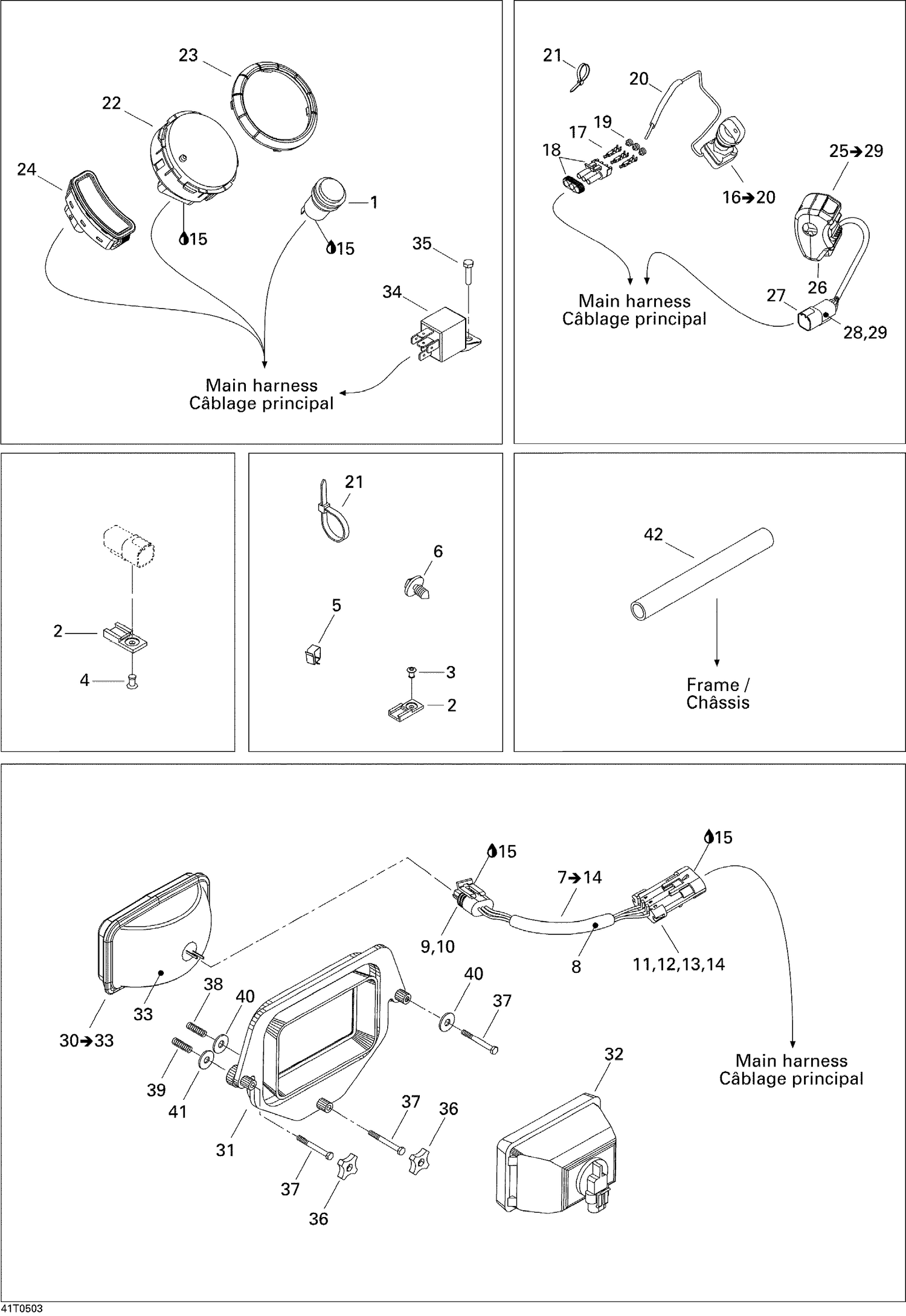

10- Electrical Accessories

Parts (41)

Ref	Part Number	Description
1	861507200	Outlet Power Kit, 12 Volts
2	270000141	Clip
3	390402400	Pop Rivet 3/16"
4	390402200	Pop Rivet 3/16"
5	414227300	Clip
6	293730040	Mount Dart This part replaces 293730018.
8	219704424	Vinyl Tubing, Low Temp 3000Mm Long
9	278001114	Female Terminal
10	278001467	MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
11	710000643	Seal
12	710000642	Lock
13	Not	Available As Spare Part - Terminal
14	Not	Available As Spare Part - PT Housing (3 Circuits)
15	219704453	Was 293550004 Dielectric Grease, 150 g
16	710000101	BLANK KEY (B TYPE) - Call your local BRP dealership
17	278000223	Female Terminal
18	278000273	Male Housing, 3 Circuits
19	278000218	Wire Seal
20	710000171	Protector Tube
21	293750002	Tie Wrap 142 mm
21	293750008	Tie Wrap 368 mm
21	414115200	Tie-Rap 180 mm
22	710000674	Speedometer
23	710000353	TRIM RING - Call your local BRP dealership
24	710000592	LH WARNING LIGHT - Call your local BRP dealership
26	710000173	BACK COVER - Call your local BRP dealership
27	409015200	Male Terminal Housing, 6 Circuits
28	409014600	Male Lock, 6 Circuits
29	409014800	MALE TERMINAL - Call your local BRP dealership
31	705000283	LAMP SUPPORT - Call your local BRP dealership
32	705000284	LAMP HOUSING - Call your local BRP dealership
33	710000176	BULB - Call your local BRP dealership
34	710010053	Relay This part replaces 410113200.
35	210251180	HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
36	572106600	Handle
37	250000008	HEX. SCREW K40 X 40 - Call your local BRP dealership
38	710000285	SPRING - Call your local BRP dealership
39	517168600	Spring
40	234042600	Flat Washer 4 mm, Stainless
41	234040600	Flat Washer 4 mm
42	219704407	Tubing 10 MM 1000MM Long
