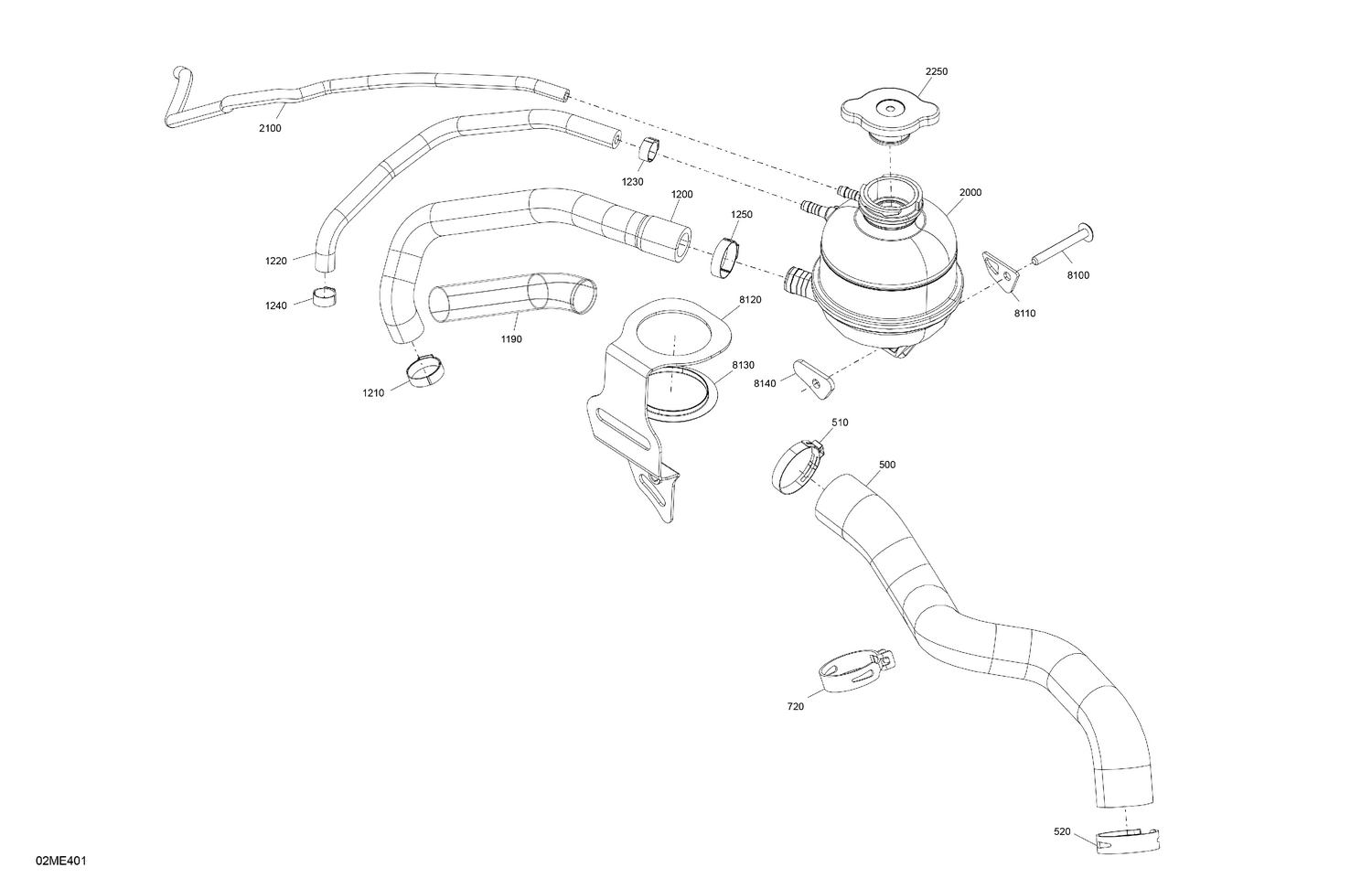

02- Engine - Cooling
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001413 | Thermostat Hose |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 293650264 | Norma Spring Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001141 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509000968 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 2000 | 861805527 | Coolant Tank Kit |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
| 8100 | 250000868 | Torx Truss M6 X 50 |
| 8110 | 518330617 | Coolant Tank Support |
| 8120 | 509001185 | Coolant Tank Support |
| 8130 | 417127116 | Swivel Abutment |
