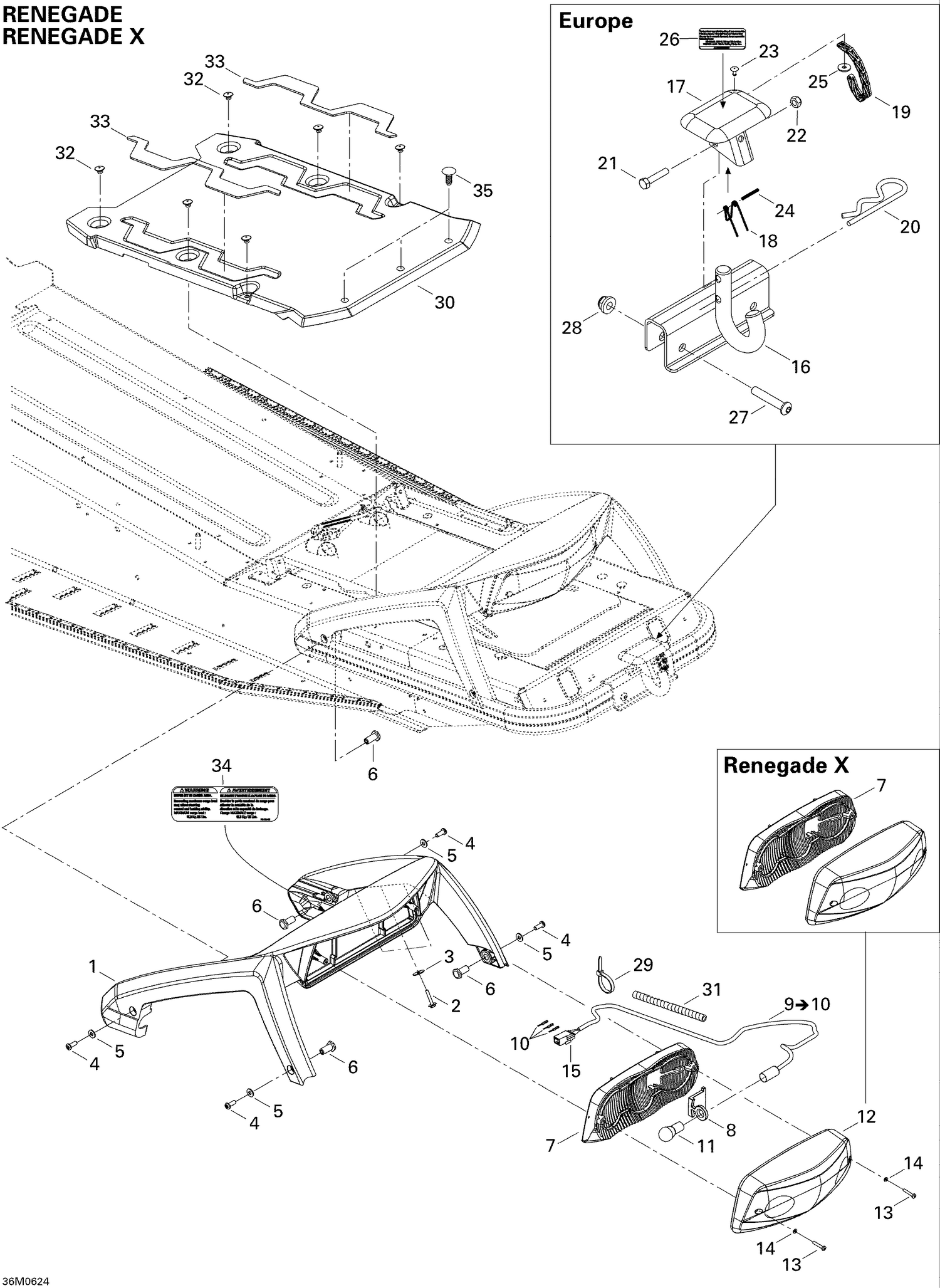

| Ref | Part Number | Description |
|---|
| 1 |
511000425 |
Luggage Rack |
| 2 |
250000202 |
Self Tapping Screw #8 X 5/8 |
| 3 |
250200040 |
Flat Washer |
| 4 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 5 |
250200039 |
Flat Washer |
| 6 |
511000398 |
INSERT - Call your local BRP dealership |
| 7 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 8 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 10 |
515175232 |
Male Terminal |
| 11 |
520000758 |
Bulb This part replaces 410504100. |
| 13 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 14 |
414516400 |
Washer - Call your local BRP dealership |
| 15 |
515175494 |
Male Housing, 3 Circuits |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 29 |
293750001 |
Tie Wrap 94 mm |
| 30 |
511000436 |
RADIATOR COVER - Call your local BRP dealership |
| 31 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 32 |
293150103 |
Pop Rivet 3/16" |
| 33 |
511000396 |
Carpet |
| 34 |
516002960 |
WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership |
