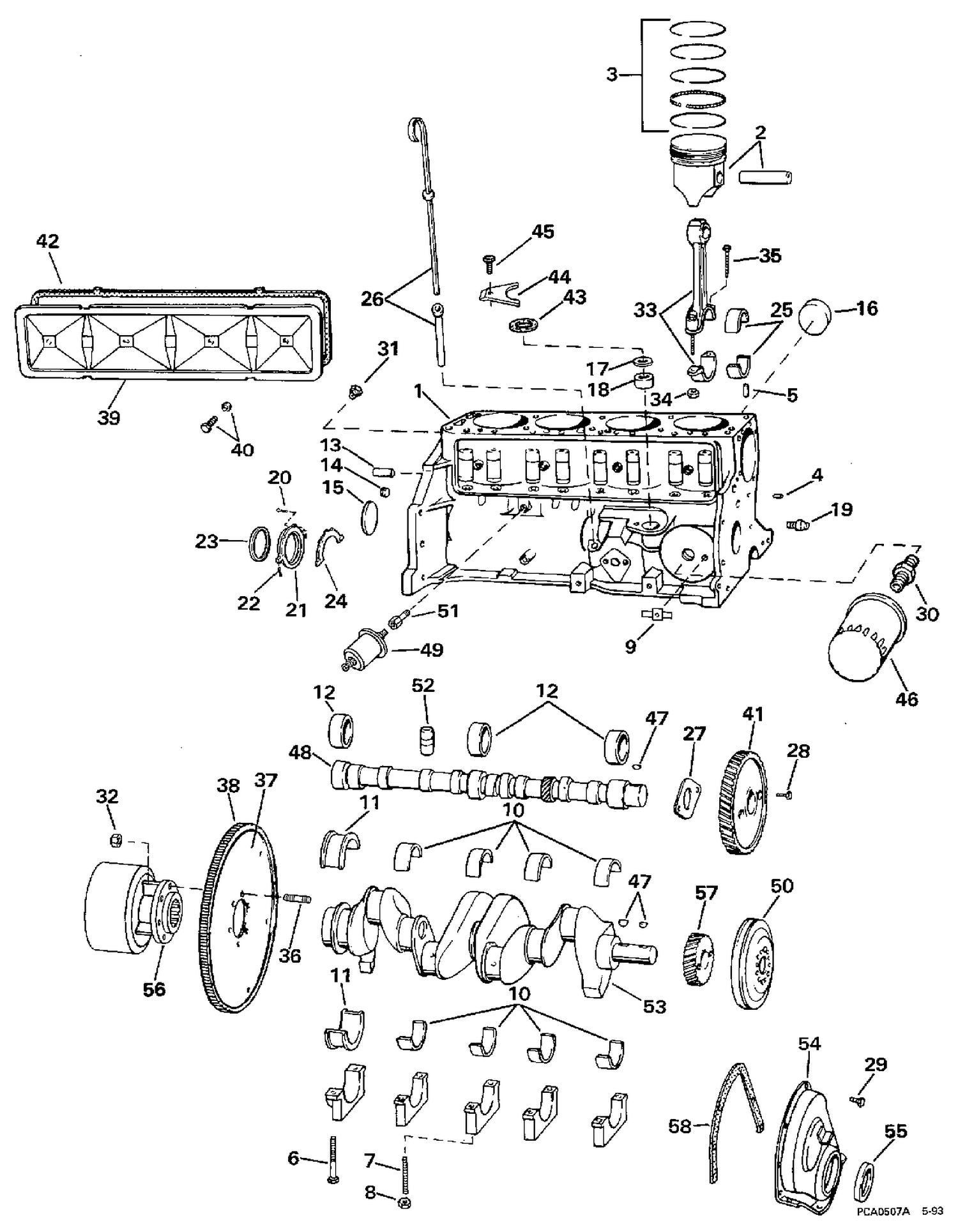

CRANKCASE

CRANKCASE

Parts (74)

RefPart NumberDescription
1 3854011 CRANKCASE ASSEMBLY
2 3853340 PISTON & PIN, Standard
2 3853476 PISTON & PIN, 0.001 in. O.S.
2 3853477 PISTON & PIN, 0.020 in. O.S.
3 3853960 PISTON RING SET, Standard
3 3854252 RING SET, 0.020 in. O.S.
4 3852743 PLUG, Oil gallery, front hole
5 3853114 DOWEL PIN, Cylinder head
6 3852933 BOLT, Main cap
7 3853111 STUD, #3 bearing cap
8 3853134 NUT, Oil pan baffle
9 3855996 VALVE ASSY, Bypass
10 3853116 BRG ASSY, Exc rear, standard
10 3853117 BRG ASSY, Exc rear, 0.001 in. U.S.
10 3853118 BRG ASSY, Exc rear, 0.010 in. U.S.
10 3853119 BRG ASSY, Exc rear, 0.020 in. U.S.
10 3853120 BRG ASSY, Exc rear, 0.030 in. U.S.
11 3853121 BRG ASSY, Rear, standard
11 3853122 BRG ASSY, Rear, 0.001 in. U.S.
11 3853123 BRG ASSY, Rear, 0.002 in. U.S.
11 3853124 BRG ASSY, Rear, 0.010 in. U.S.
11 3853125 BRG ASSY, Rear, 0.020 in. U.S.
11 3853126 BRG ASSY, Rear, 0.030 in. U.S.
12 3852829 BRG, Camshaft
13 3853113 DOWEL PIN
14 3852471 PLUG
15 3852851 PLUG, Camshaft bearing hole
16 0311376 CORE PLUG, Side This part replaces 3852100.
16 0311377 CORE PLUG, Rear This part replaces 3852101.
17 3853112 THRUST WASHER
18 3853115 BEARING, Shaft pilot
19 3853067 NOZZLE, Timing gear oil
20 3853339 BOLT, Rear seal retainer
21 3855820 RETAINER, Crankshaft seal
22 3853202 STUD, Oil pan
23 3852657 OIL SEAL, Crankshaft, rear
24 3852656 GASKET, Rear seal retainer
25 3853149 BEARING, Rod, standard
25 3853150 BEARING, Rod, 0.001 in. U.S.
25 3853151 BEARING, Rod, 0.002 in.
25 3853153 BEARING, Rod, 0.020 in.
25 3856117 BEARING, Rod, 0.010 in. U/S This part replaces 3853152.
26 3850524 OIL LEVEL GAUGE & TUBE ASSY
27 3853136 BEARING, Thrust unit
28 3852441 SCREW & LOCK WASHER
29 3852441 SCREW & LOCK WASHER
30 0311072 CONNECTOR, Oil adaptor This part replaces 3852097.
31 3854494 PETCOCK, Water drain
32 3853273 LOCKNUT, Coupler
33 3853785 CONNECTING ROD & CAP ASSY
34 3853148 NUT, Connecting rod
35 3853144 BOLT, Connecting rod
36 3853274 STUD, Coupler
37 3854013 FLYWHEEL ASSY
38 3853143 GEAR, Flywheel
39 3853138 COVER, Push rod
40 3853955 BOLT & SEAL ASSY
41 3852452 GEAR, Camshaft timing
42 3852692 GASKET, Push rod cover
43 3852660 GASKET, Distributor
44 3853142 CLAMP, Distributor
45 3853266 BOLT, Distributor
46 0502902 OIL FILTER
47 3852663 KEY, Crankshaft
48 0908610 CAMSHAFT ASSEMBLY This part replaces 3854262.
49 3853800 OIL PRESSURE SENDER
50 3852662 DAMPER, Crankshaft pulley
51 3853400 FITTING, Oil pressure
52 3854033 LIFTER ASSY.
53 3853338 CRANKSHAFT ASSY
54 3853135 COVER ASSY, Crankshaft, front
55 3853341 SEAL, Front cover
56 3854032 COUPLER, Flywheel
57 3852661 GEAR, Crankshaft
