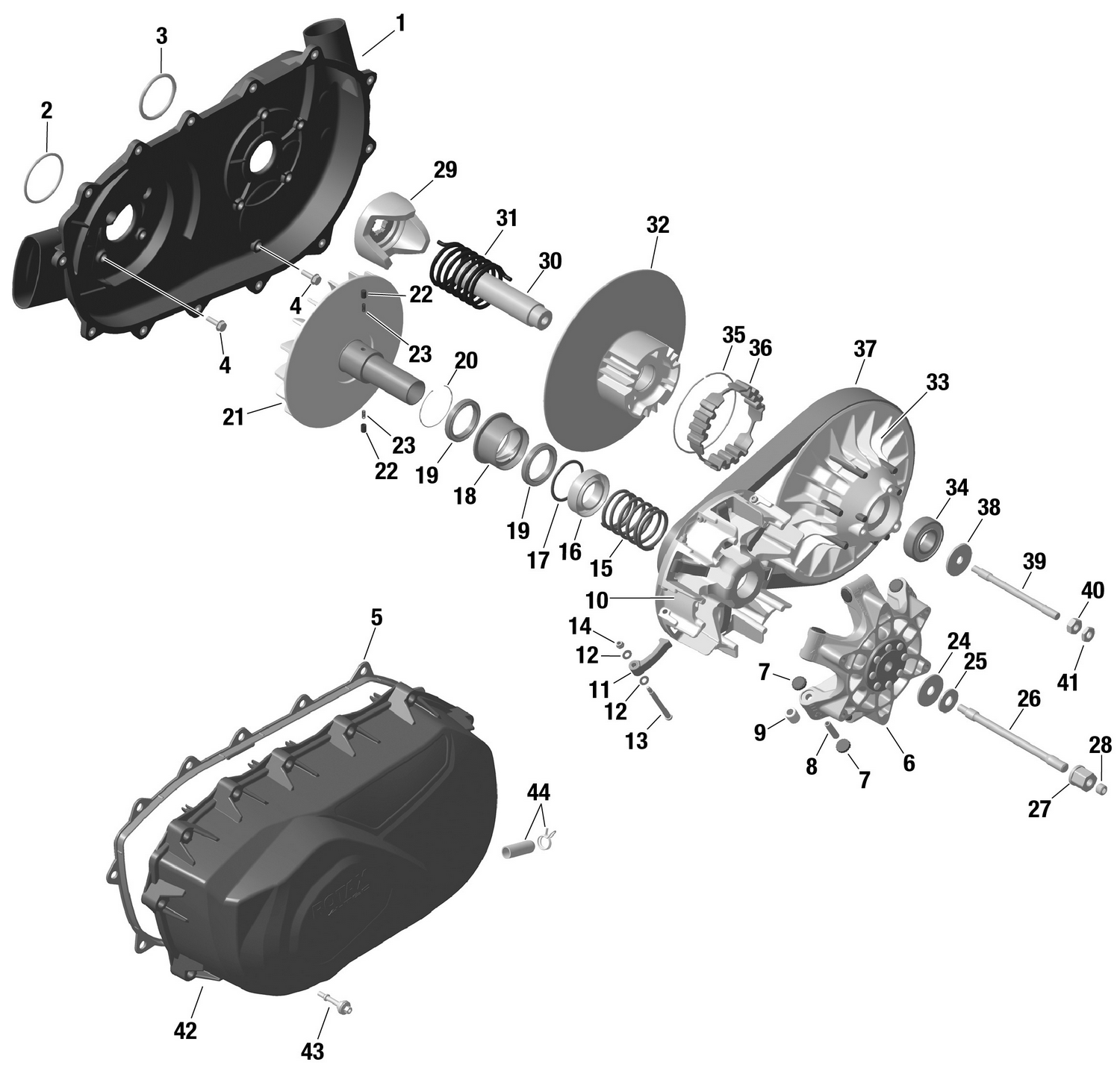

01- Rotax - Transmission - 322
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420612304 | CVT Air Guide |
| 2 | 420430409 | O-Ring This part replaces 420430408. |
| 3 | 420631089 | O-Ring |
| 4 | 420441311 | Hex.Screw M6 X 20 |
| 5 | 420430126 | Gasket This part replaces 420430127. |
| 6 | 420280664 | Governor Cup |
| 7 | 420281296 | Slider Shoe Set |
| 8 | 417223257 | Roller Axle |
| 9 | 417223767 | Roller |
| 10 | 420280467 | Outer Haft |
| 11 | 420248682 | Lever Set Ass'y |
| 12 | Not | Available As Spare Part - Thrust Washer |
| 13 | Not | Available As Spare Part - Bearing screw |
| 14 | Not | Available As Spare Part - Lock Nut |
| 15 | 420238617 | Compression Spring, Drive Pulley |
| 16 | 420627578 | Seat Spring This part replaces 420627577. |
| 17 | 420460430 | Friction Washer |
| 18 | 420257195 | Drive Pulley Clutch |
| 19 | 420632377 | Ball Bearing |
| 20 | 420245951 | Retaining Ring |
| 21 | 420280374 | Inner Half |
| 22 | 420229577 | Spring Sleeve |
| 23 | 420239134 | Spring |
| 24 | 703500842 | Clutch Bolt Repair Kit |
| 25 | 703500842 | Clutch Bolt Repair Kit |
| 26 | 703500842 | Clutch Bolt Repair Kit |
| 27 | 703500842 | Clutch Bolt Repair Kit |
| 28 | 703500842 | Clutch Bolt Repair Kit |
| 29 | 420280473 | Cam This part replaces 420280472. |
| 30 | 420220914 | Driven Pulley Shaft |
| 31 | 420638040 | Compression Spring |
| 32 | 420280786 | Inner Half Ass'y |
| 34 | 420932421 | Ball Bearing |
| 35 | 420245911 | Retaining Ring |
| 36 | 420660124 | Torque Gear |
| 37 | 422280366 | V-Belt This part replaces 422280360. |
| 38 | 420627594 | Thrust Washer This part replaces 420627590. |
| 39 | 420441900 | Stud Screw M10 X 136 |
| 40 | 420242098 | Hexagonal Nut M10 |
| 41 | 420242403 | Hexagonal Nut M10 |
| 42 | 420612316 | Variator Cover This part replaces 420612310. |
| 43 | 420440568 | Hex Screw M6 X 30 |
