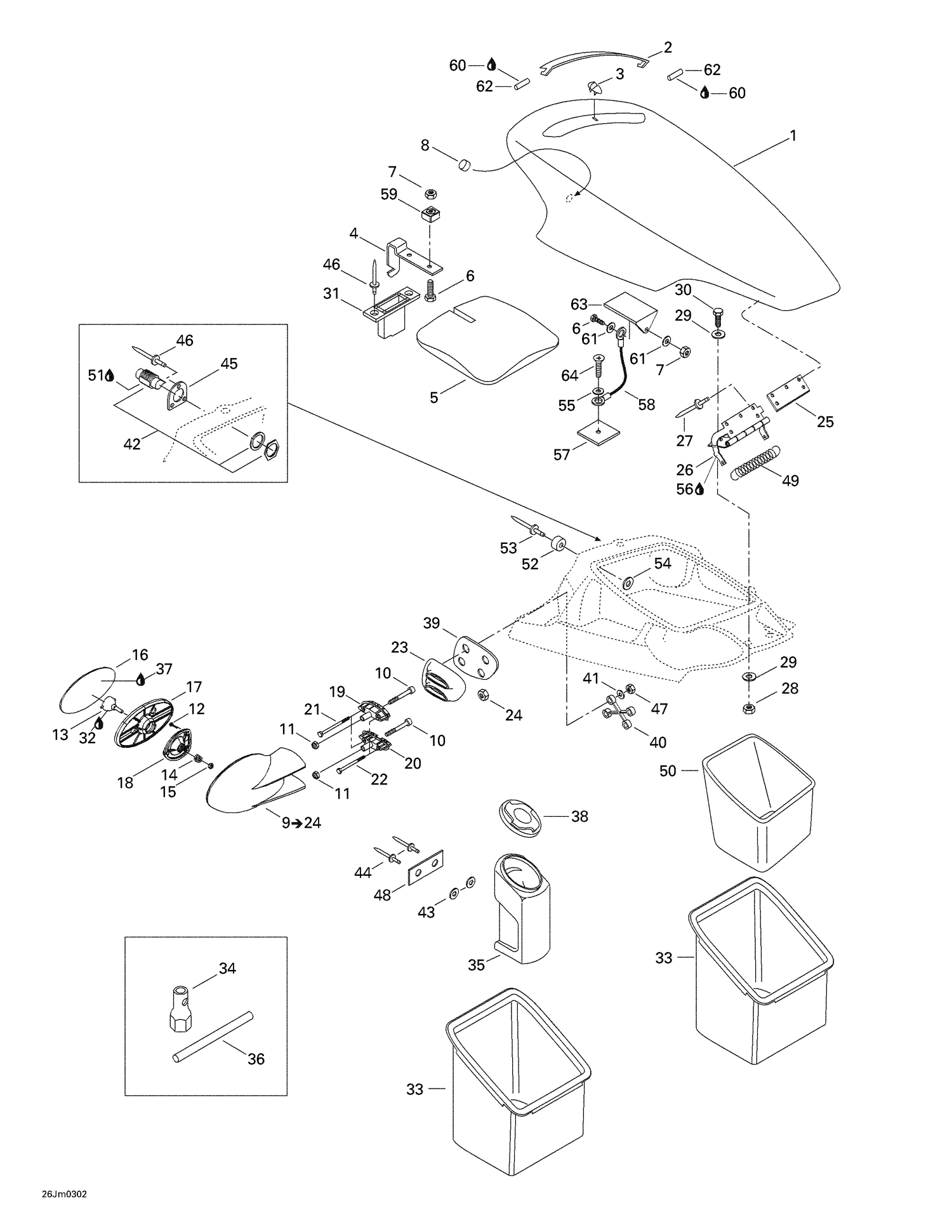

| Ref | Part Number | Description |
|---|
| 1 |
291003861 |
Windshield This part replaces 204620079. |
| 2 |
204073803 |
DEFLECTOR - Call your local BRP dealership This part replaces 204620124. |
| 3 |
204620106 |
REAR STOPPER - Call your local BRP dealership |
| 4 |
204620070 |
LATCH - Call your local BRP dealership |
| 5 |
204620080 |
FOAM, WINDSCREEN - Call your local BRP dealership |
| 6 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 7 |
232551600 |
Hex. Elastic Nut M5 |
| 8 |
204620295 |
RUBBER STOPPER - Call your local BRP dealership This part replaces 204620101. |
| 10 |
205087560 |
Socket Head Screw M8 X 75 |
| 11 |
232581600 |
Hex. Elastic Nut M8 |
| 12 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 13 |
269500079 |
MIRROR BALL JOINT - Call your local BRP dealership |
| 14 |
269500453 |
Mirror Spring |
| 15 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 16 |
269500454 |
MIRROR - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Mirror Frame |
| 18 |
Not |
Available As Spare Part - Housing Support |
| 19 |
Not |
Available As Spare Part - Adaptor # 1 |
| 20 |
Not |
Available As Spare Part - Adaptor # 2 |
| 21 |
230060060 |
Hex. Screw M6 X 100 |
| 22 |
207069060 |
HEX. SCREW M6 X 90 - Call your local BRP dealership |
| 23 |
204070997 |
Adaptor, Black |
| 24 |
232061600 |
Hex. Nut M6 |
| 25 |
204620087 |
RETAINING PLATE - Call your local BRP dealership |
| 26 |
204620281 |
HINGE ASS'Y - Call your local BRP dealership This part replaces 204620077. |
| 27 |
293150039 |
Pop Rivet 3/16" |
| 28 |
232551600 |
Hex. Elastic Nut M5 |
| 29 |
234052600 |
Flat Washer 5 mm, Stainless |
| 30 |
207152060 |
Hex. Screw M5 X 20 |
| 31 |
204072064 |
LATCH GUIDE - Call your local BRP dealership This part replaces 204070394. |
| 32 |
293550010 |
Synthetic Grease, 400 G |
| 33 |
269501940 |
STORAGE TRAY - Call your local BRP dealership This part replaces 269500416. |
| 34 |
204630050 |
Socket Wrench |
| 35 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership |
| 36 |
204630051 |
Steel Bar |
| 37 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 38 |
269501939 |
EXTINGUISHER HOUSING CAP - Call your local BRP dealership This part replaces 269500603. |
| 39 |
293250035 |
RH Gasket |
| 40 |
291000679 |
RH Reinforcement Plate |
| 41 |
234061600 |
Stainless Flat Washer M6 |
| 42 |
204620063 |
LATCH KIT - Call your local BRP dealership |
| 43 |
234032600 |
Flat Washer M3, Stainless |
| 44 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 45 |
204070304 |
LATCH PLATE - Call your local BRP dealership |
| 46 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership This part replaces 293150010. |
| 47 |
232061600 |
Hex. Nut M6 |
| 48 |
293250037 |
GASKET - Call your local BRP dealership |
| 49 |
204620018 |
HINGE SPRING - Call your local BRP dealership |
| 50 |
204630008 |
ICEBOX FOAM - Call your local BRP dealership |
| 52 |
293830043 |
Rubber Stopper |
| 53 |
293150014 |
Pop Rivet 3/16" |
| 54 |
234051600 |
Flat Washer M5, Stainless |
| 55 |
234062600 |
Flat Washer M6, Stainless |
| 56 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 57 |
Not |
Available As Spare Part - Insert |
| 58 |
204620194 |
RETAINER CABLE - Call your local BRP dealership |
| 59 |
204073798 |
NUT HOUSING - Call your local BRP dealership This part replaces 204620115. |
| 60 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 61 |
234052600 |
Flat Washer 5 mm, Stainless |
| 62 |
204620126 |
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership |
| 63 |
204620127 |
CABLE ATTACHEMENT - Call your local BRP dealership |
