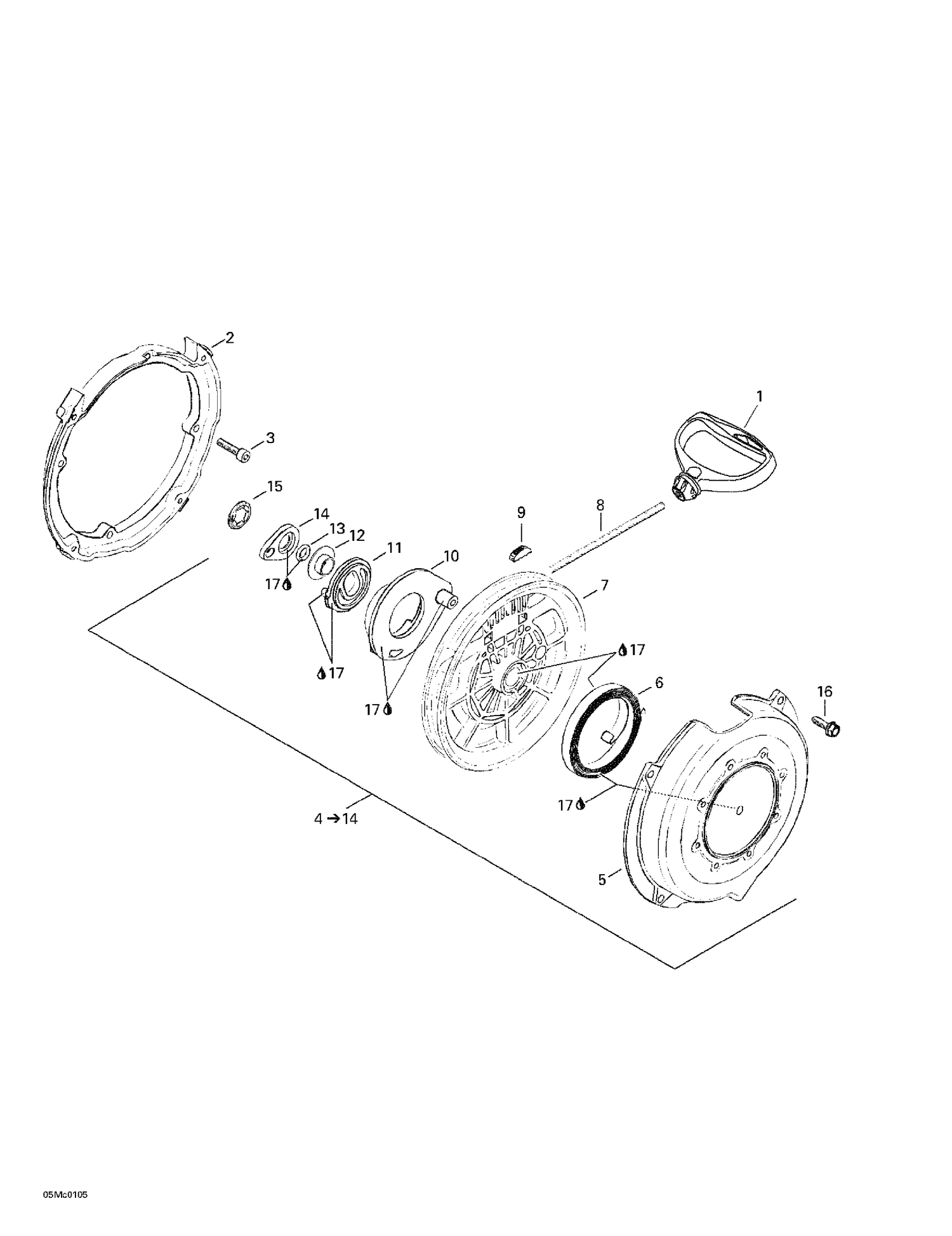

04- Rewind Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572084400 | Starter Grip |
| 2 | 420810955 | Flange Connector This part replaces 420810952. |
| 3 | 420840403 | Allen Screw M6 x 22 This part replaces 420840401. |
| 5 | 420811340 | Starter Housing |
| 6 | 420939115 | Rewind Spring |
| 7 | 420852480 | Rope Sheave |
| 8 | 219704403 | Was 412500100 Rope-Starter |
| 9 | 420852070 | Key Clamp |
| 10 | 420852296 | Pawl |
| 11 | 420852302 | PAWL LOCK - Call your local BRP dealership |
| 12 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 13 | 420250400 | O-Ring |
| 14 | 420852520 | Lock Ring |
| 15 | 420845560 | Locking Element |
| 16 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
