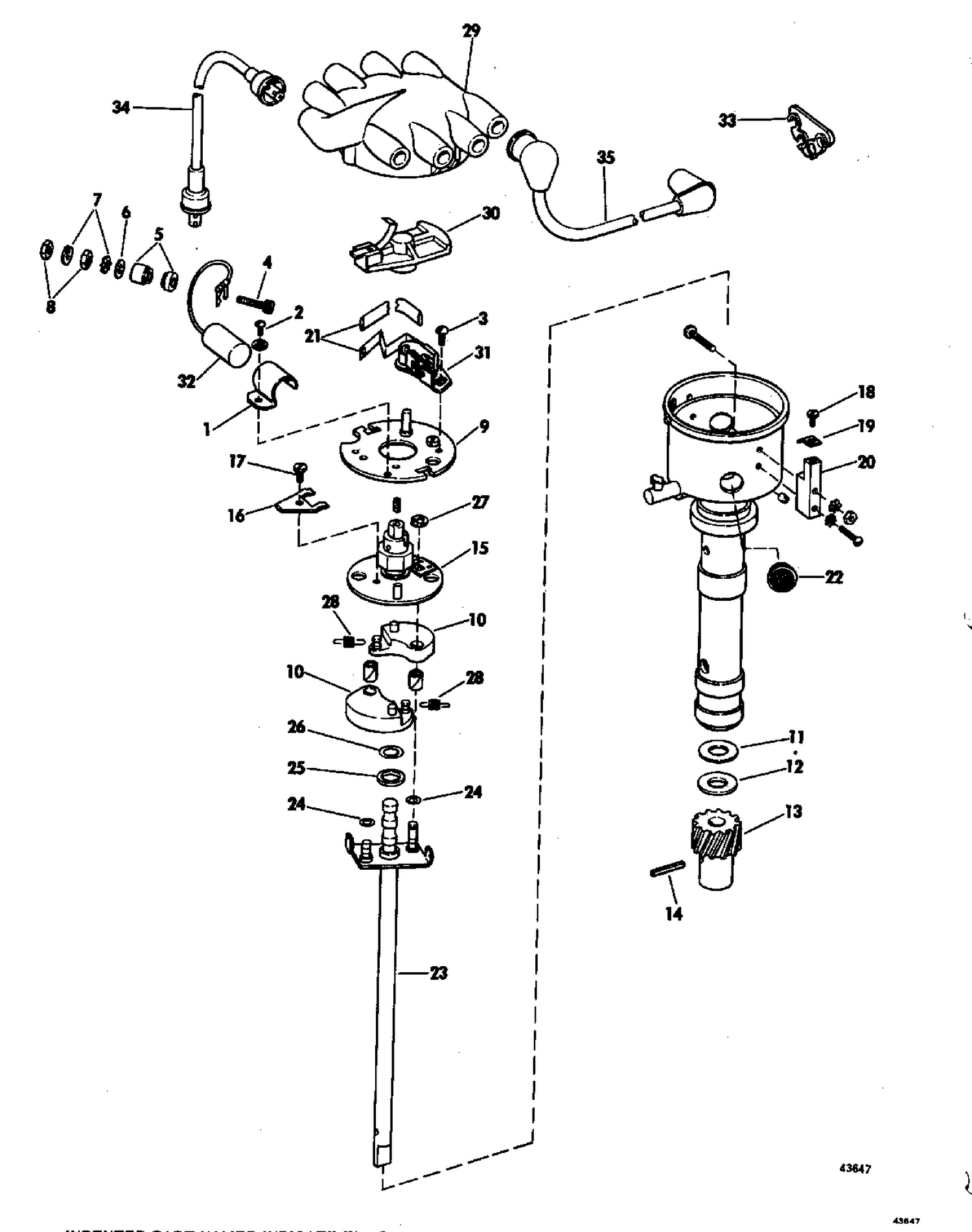

| Ref | Part Number | Description |
|---|
| 1 |
0313122 |
BRACKET, Cond mtg |
| 2 |
0313123 |
SCREW, Cond bracket |
| 3 |
0313124 |
SCREW, Contact point adj |
| 4 |
0313125 |
SCREW, Primary terminal |
| 5 |
0313126 |
INSULATOR, Primary term |
| 6 |
0313127 |
WASHER, Primary terminal |
| 7 |
0313128 |
LKWASH, Primary term |
| 8 |
0313129 |
HEX NUT, Primary terminal |
| 10 |
0313131 |
WEIGHT, Governor R.H. |
| 11 |
0313132 |
THRUST WAHSER |
| 12 |
0313133 |
THRUST WASHER, Bronze |
| 13 |
0313134 |
GEAR, Distr drvn |
| 14 |
0313135 |
ROLL PIN, Gear |
| 15 |
0382897 |
ADVANCE PLATE & CAM |
| 16 |
0313143 |
CLAMP, Cam hldn |
| 17 |
0313144 |
SCREW, Clamp |
| 18 |
0313139 |
SCREW,Distributor cap attaching |
| 19 |
0313140 |
CLIP, Cap attaching |
| 20 |
0313141 |
BRACKET,Distributor cap attaching |
| 21 |
0313142 |
LEAD, Points to primary terminal |
| 22 |
0313138 |
SCREEN, Ventilation |
| 23 |
0382137 |
MAIN SHAFT ASSEMBLY |
| 24 |
0313145 |
WAASHER, Wt posts |
| 25 |
0313146 |
WASHER, Main shaft, lower |
| 26 |
0313147 |
WASHER, Main shaft to upper |
| 27 |
0313148 |
RETAINER, Weight to post |
| 28 |
0313149 |
SPRING, Adv wt (painted blue) |
| 28 |
0313150 |
SPRING, Advance weight (painted green) |
| 29 |
0382133 |
DISTRIBUTOR CAP ASSEMBLY |
| 30 |
0382134 |
ROTOR ASSEMBLY |
| 31 |
0382135 |
CONTACT ASSY. |
| 32 |
0382136 |
CONDENSER |
| 33 |
0310446 |
RETAINER, Ignition leads |
| 34 |
0580558 |
LEAD ASSEMBLY, Coil |
| 35 |
0381768 |
LEAD ASSEMBLY, Spark plug #2 |
| 35 |
0381769 |
LEAD ASSEMBLY, Spark plug #1, #3 |
| 35 |
0381770 |
LEAD ASEMBLY, Spark plug #4 |
| 35 |
0381772 |
LEAD ASSEMBLY, Spark plug #5, #6 |
| 0381775 |
0381775 |
DISTRIBUTOR ASSEMBLY |
