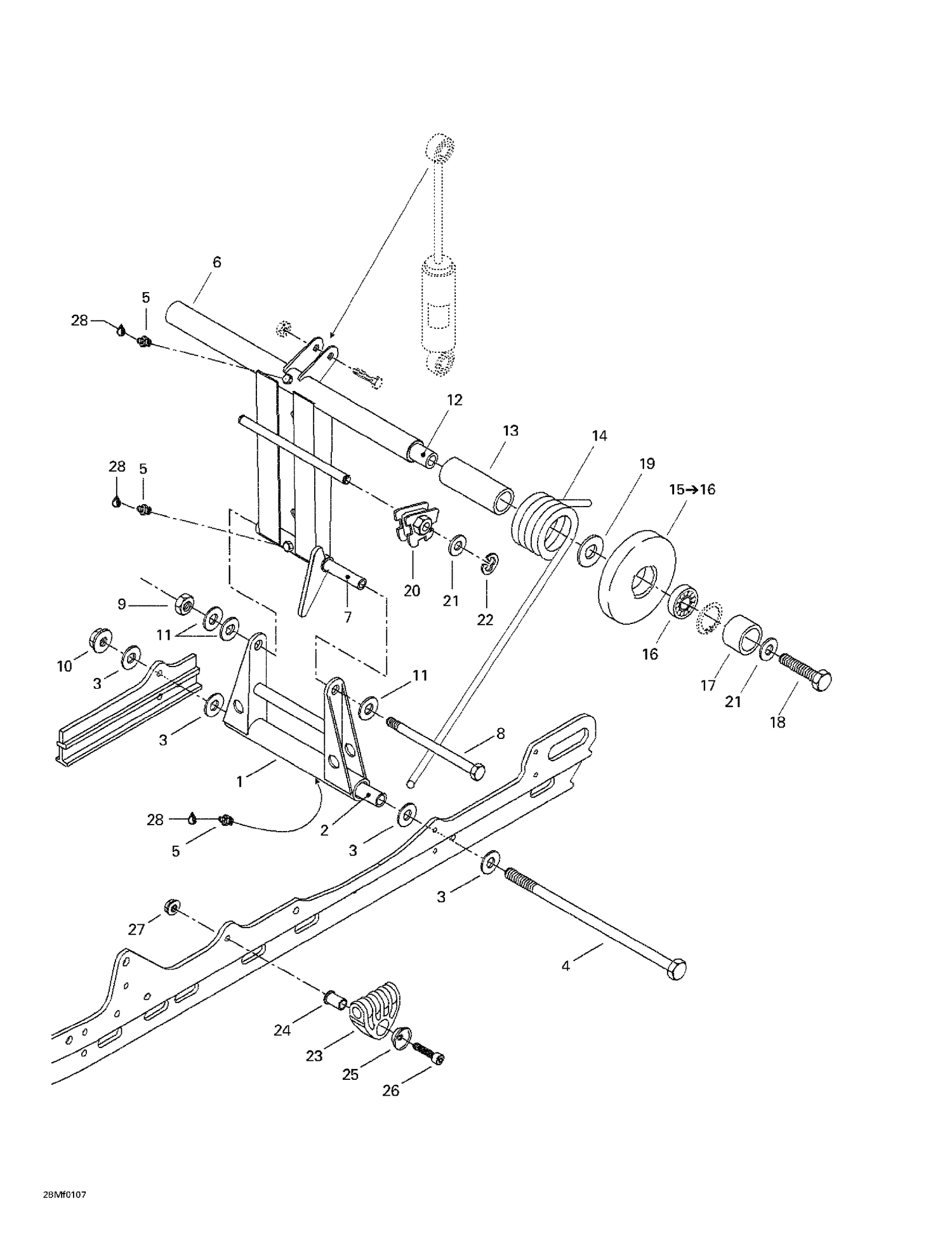

08- Rear Arm
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503169200 | Pivot Welded Arm |
| 2 | 503154703 | Lower Axle Pivot |
| 3 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 4 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 5 | 408200700 | Grease Fitting |
| 6 | 503151200 | Welded Rear Arm |
| 7 | 503144300 | Upper Axle, Pivot Arm |
| 8 | 732601197 | Bolt M8, Short |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 234081410 | Flat Washer 8 mm |
| 12 | 503151400 | Transversal Rear Axle |
| 13 | 572047800 | Bushing |
| 14 | 503189354 | RH Spring (Europe) |
| 16 | 405404600 | Ball Bearing |
| 17 | 503154200 | Spacer |
| 18 | 207303544 | Hex. Screw M10 x 35 (Scotch Grip) |
| 19 | 503144900 | Washer |
| 20 | 572030900 | RH ADJUST CAM - Call your local BRP dealership |
| 21 | 732900049 | Washer |
| 23 | 503189657 | Spring Support This part replaces 503188933. |
| 24 | 503188934 | Spring Guide Axle |
| 25 | 503188929 | CUSHION RETAINER - Call your local BRP dealership |
| 26 | 205084544 | Socket Head Screw M8 X 45 |
| 27 | 233281414 | Hex. Flange Elastic Nut M8 |
| 503189355 | LH | Spring (Europe) 503189355 |
| 572030800 | Came | De Réglage GA - Appelez votre concessionnaire BRP local 572030800 |
| 572030800 | LH | ADJUST CAM - Call your local BRP dealership 572030800 |
