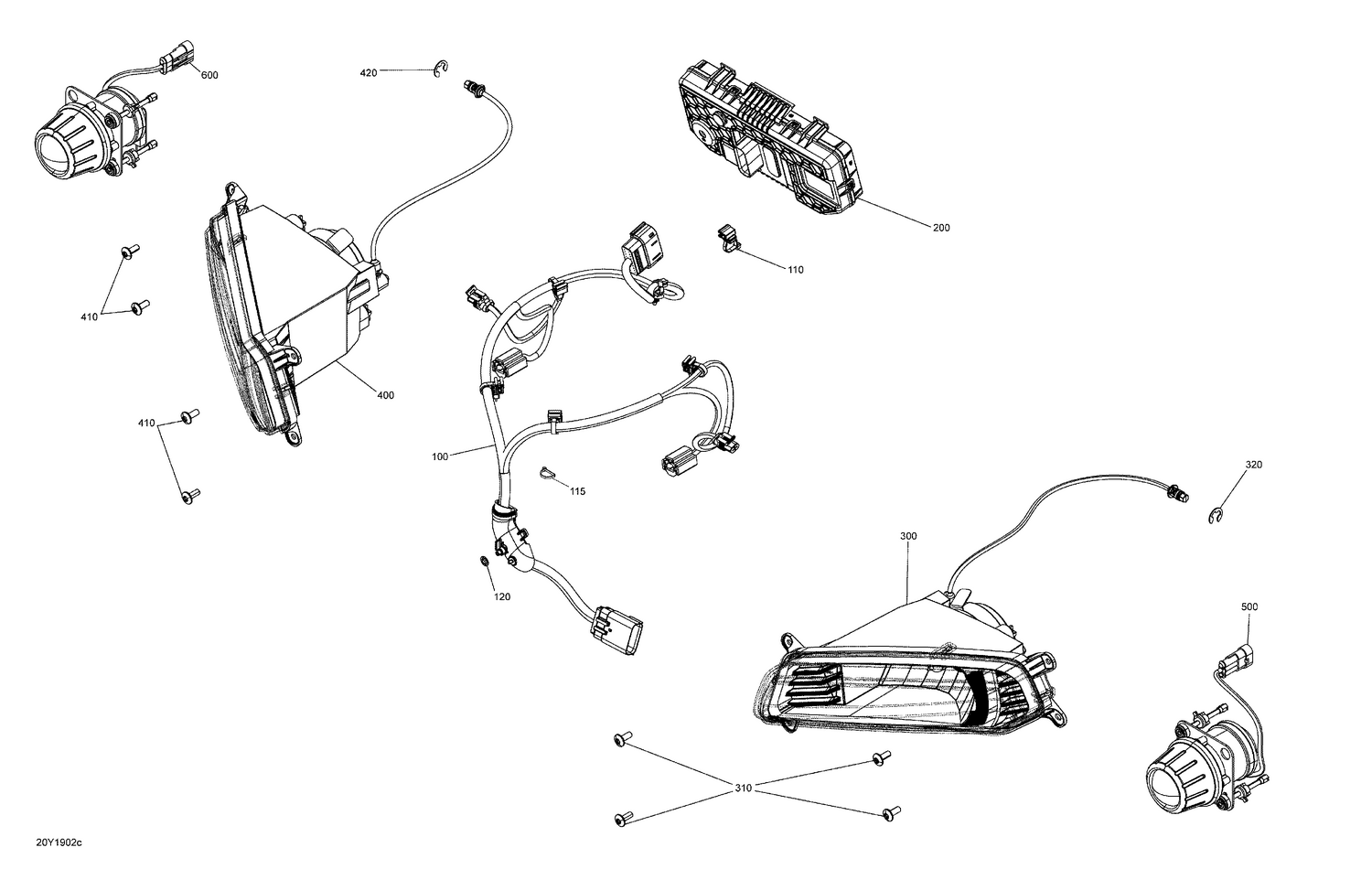

10- Electrical System Console
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 293750063 | Clip Tie-Rap |
| 115 | 293750062 | Tie Rap Clip |
| 120 | 250100034 | Push Nut |
| 200 | 710005253 | Multifunction Gauge |
| 300a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 300b | 219800280 | Rubber Cap Protector |
| 300c | 219800281 | Spring |
| 310 | 250000721 | Torx Truss Screw M6 X 16 |
| 320 | 293370013 | E-Circlip |
| 400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 400b | 219800280 | Rubber Cap Protector |
| 400c | 219800281 | Spring |
| 410 | 250000721 | Torx Truss Screw M6 X 16 |
| 420 | 293370013 | E-Circlip |
