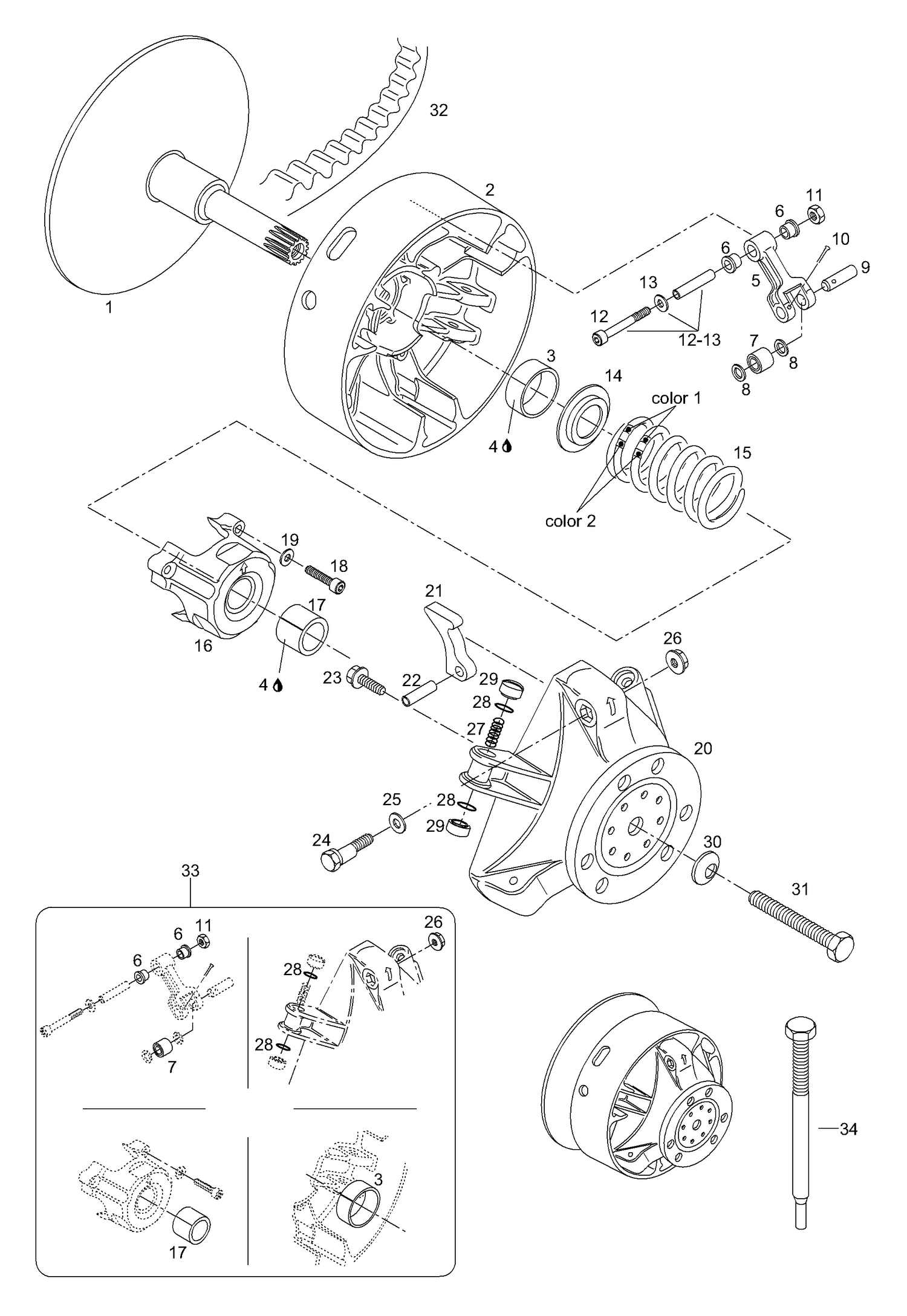

| Ref | Part Number | Description |
|---|
| 1 |
417222412 |
FIXED FLANGE - Call your local BRP dealership |
| 3 |
417004201 |
Bushing outer half |
| 4 |
413703100 |
Loctite 609, 10cc |
| 6 |
417004305 |
Flange bushing |
| 7 |
417222947 |
Roller This part replaces 417003900. |
| 8 |
417004302 |
Thrust washer |
| 9 |
417004309 |
Pin |
| 10 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 11 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 12 |
205065044 |
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership This part replaces 222965065. |
| 13 |
20003 |
Flat washer 6mm |
| 14 |
417222044 |
Spring seat |
| 15 |
414689700 |
SPRING, YELLOW/ORANGE - Call your local BRP dealership |
| 17 |
417004501 |
Spring cover bushing |
| 18 |
250000038 |
Allen screw M6x40 |
| 19 |
420245370 |
WASHER - Call your local BRP dealership |
| 20 |
417222081 |
GOVERNOR CUP ASSY - Call your local BRP dealership |
| 21 |
417005290 |
Ramp 290 |
| 22 |
732804009 |
Dowl tube |
| 23 |
210361890 |
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 24 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 25 |
417005600 |
Washer |
| 26 |
233061414 |
Locking nut M6 |
| 27 |
417005700 |
Spring |
| 28 |
732401030 |
O-Ring |
| 29 |
417223021 |
Slider Shoe This part replaces 417005800. |
| 30 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 31 |
417113800 |
BOLT - Call your local BRP dealership |
| 32 |
414633800 |
Drive belt |
| 33 |
417006100 |
Clutch repair kit |
