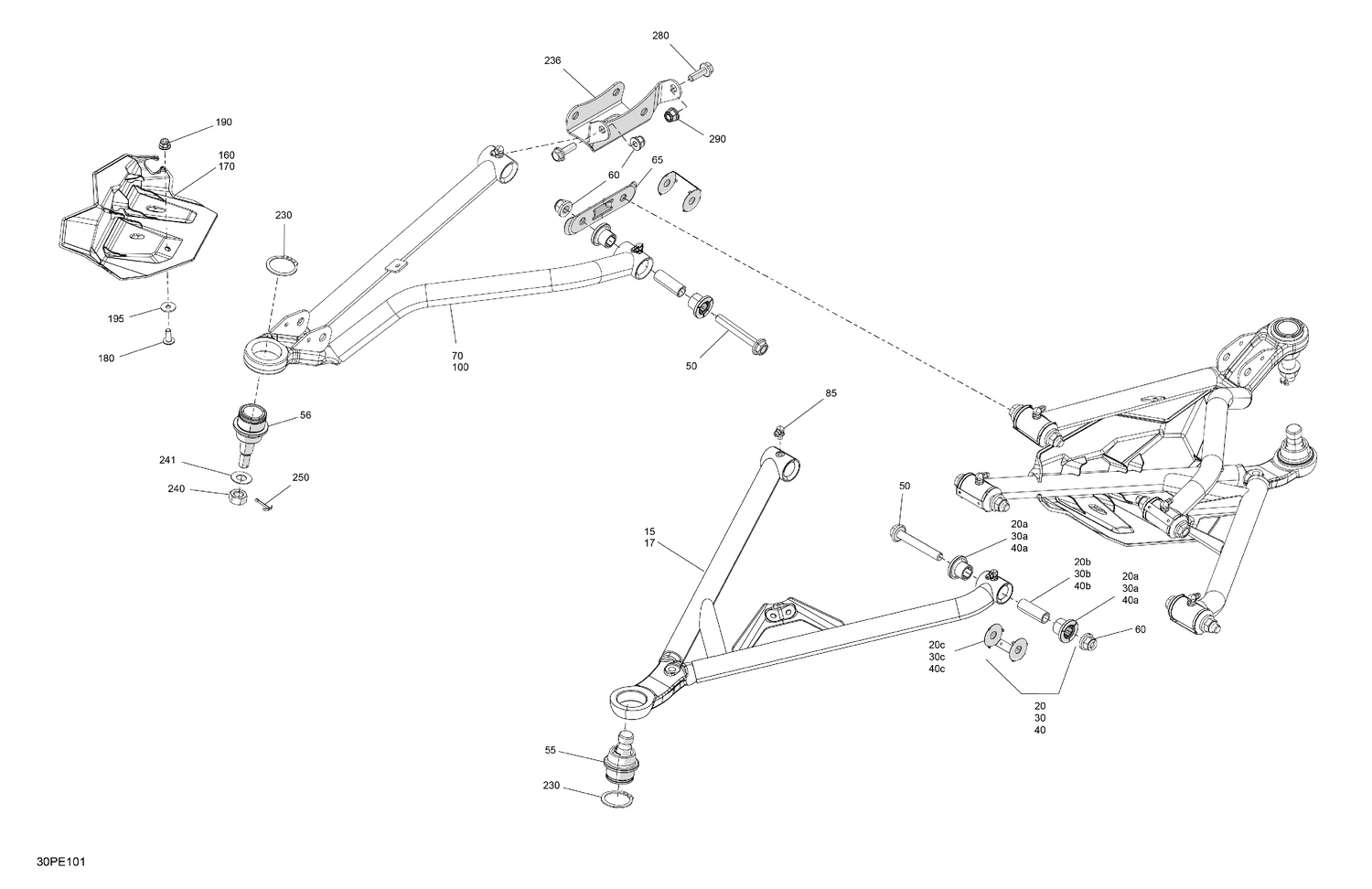

05- Suspension - Front Components
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 706204639 | LH Lower Suspension Arm |
| 17 | 706204640 | RH Lower Suspension Arm |
| 20a | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 20b | 706204623 | Spacer This part replaces 706202133. |
| 20c | 703500875 | Suspension Arm Bushing Kit |
| 30a | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 30b | 706204623 | Spacer This part replaces 706202133. |
| 30c | 703500875 | Suspension Arm Bushing Kit |
| 40a | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 40b | 706204623 | Spacer This part replaces 706202133. |
| 40c | 703500875 | Suspension Arm Bushing Kit |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 55 | 706202045 | Ball Joint |
| 56 | 706202044 | Ball Joint |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 65 | 706205645 | Front Suspension Cross Member |
| 70 | 706204642 | RH Upper Suspension Arm |
| 85 | 293550085 | Grease Elbow Fitting |
| 100 | 706204641 | LH Upper Suspension Arm |
| 160 | 706202808 | LH Joint Protector |
| 170 | 706202809 | RH Joint Protector |
| 180 | 250000755 | Torx Screw M6 X 16 |
| 190 | 233261494 | Hex. Flange Elastic Nut M6 |
| 195 | 234062670 | Stainless Steel Flat Washer |
| 230 | 293370035 | Circlip |
| 236 | 705203247 | Upper Front Holder |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 280 | 207682544 | Hex. Flange Screw M8 X 25 |
