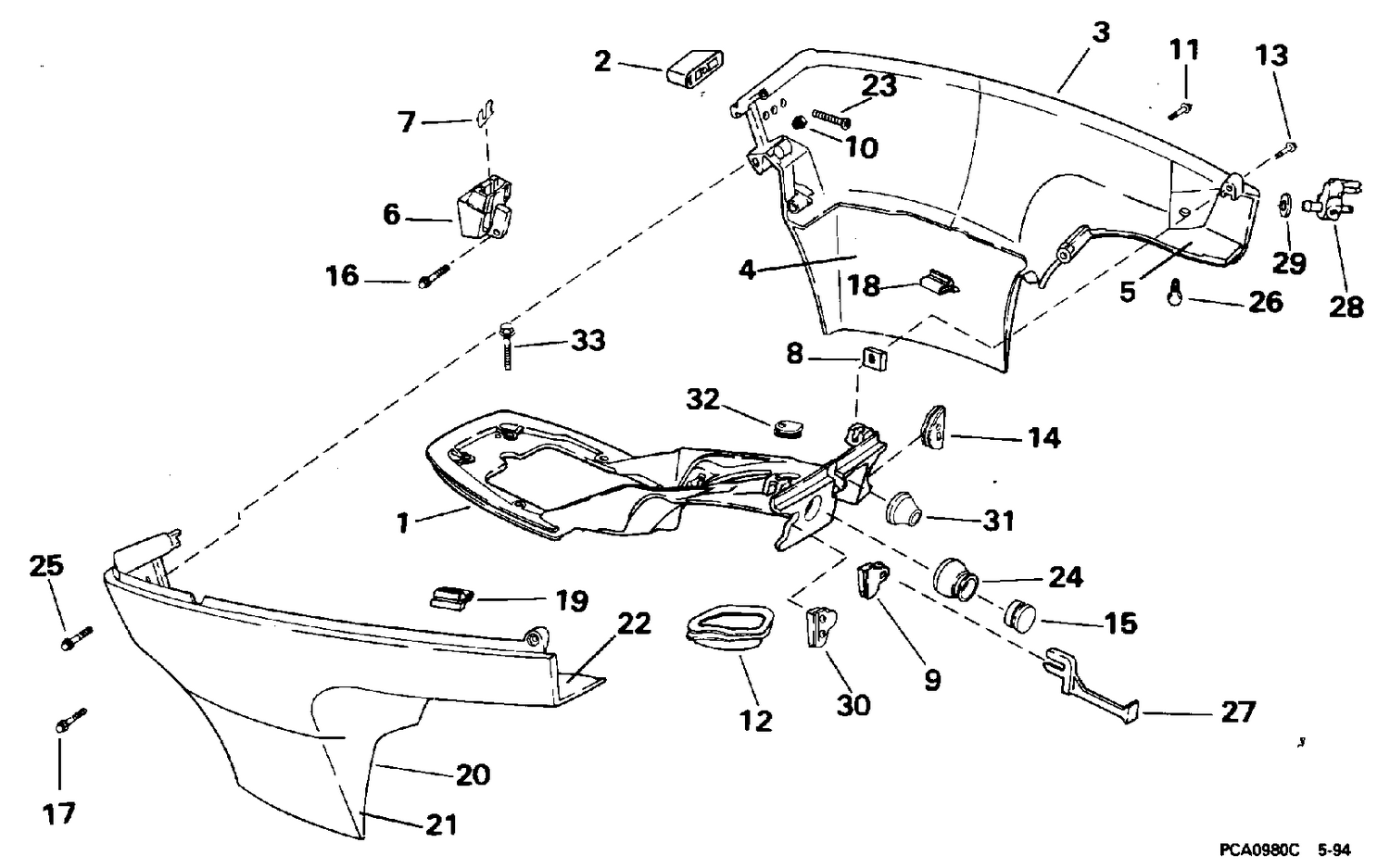

| Ref | Part Number | Description |
|---|
| 1 |
0338210 |
BRACKET, Panel |
| 2 |
0341199 |
BUMPER, Cover |
| 3 |
5007234 |
Kit This part replaces 0436362. |
| 6 |
0435818 |
LATCH, Upper to lower cover |
| 9 |
0338213 |
GROMMET, Choke knob |
| 11 |
0340071 |
SCREW, Cover to bracket |
| 12 |
0338242 |
GROMMET, Shift rod, bottom |
| 13 |
0340071 |
SCREW, Cover to bracket |
| 14 |
0338246 |
GROMMET, Battery cable plug |
| 14 |
0338288 |
GROMMET, Battery & instrument cable |
| 15 |
0338287 |
GROMMET, Key switch hole |
| 17 |
0340071 |
SCREW, Cover to bracket |
| 18 |
0338202 |
SEAL, Cover to bracket, port |
| 19 |
0338286 |
SEAL, Cover to bracket, starboard |
| 20 |
5007234 |
Kit This part replaces 0436363. |
| 23 |
0512731 |
SCREW, Bumper |
| 24 |
0338300 |
GROMMET, Shift rod, front |
| 25 |
0338232 |
SCREW, Cover, rear, upper |
| 27 |
0338241 |
CHOKE LEVER |
| 31 |
0339287 |
GROMMET, Throttle cable |
| 31 |
0339931 |
GROMMET, Shift & throttle cables |
| 32 |
0338290 |
GROMMET, Switch wire hole |
