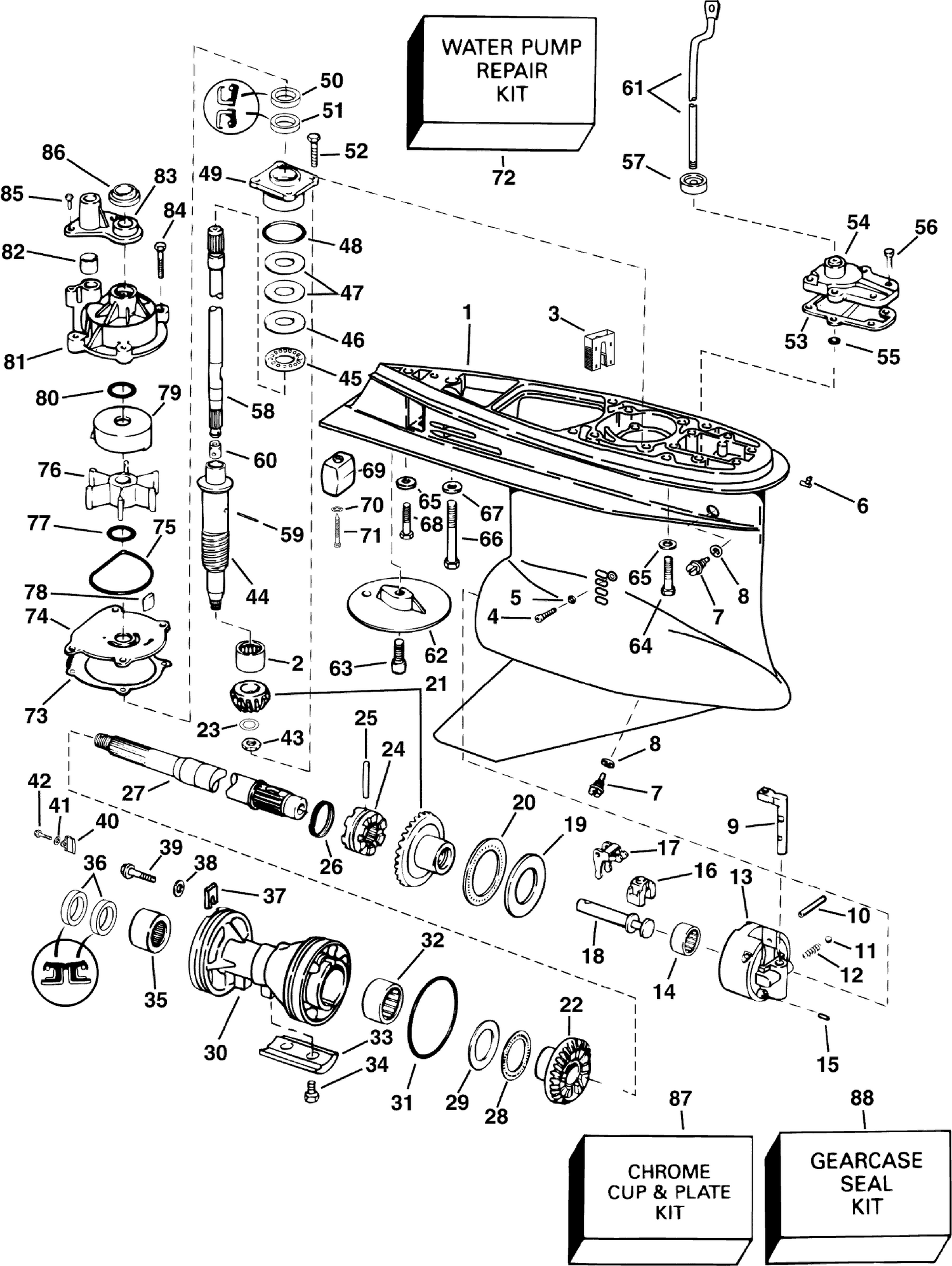

GEARCASE - HL MODEL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 58 | 5007136 | DRIVESHAFT Assembly, Upper |
| 61 | 0350464 | SHIFT ROD |
| 62 | 0336284 | COVER, Trim tab opening |
| 63 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 64 | 0331999 | SCREW, Gearcase housing |
| 66 | 0331998 | SCREW, Gearcase to housing |
| 68 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 72 | 5001595 | Water Pump Repair Kit |
| 75 | 0331353 | Seal, Impeller Housing Plate. |
| 80 | 0331188 | O-Ring |
| 87 | 0435526 | CHROME CUP & PLATE KIT |
