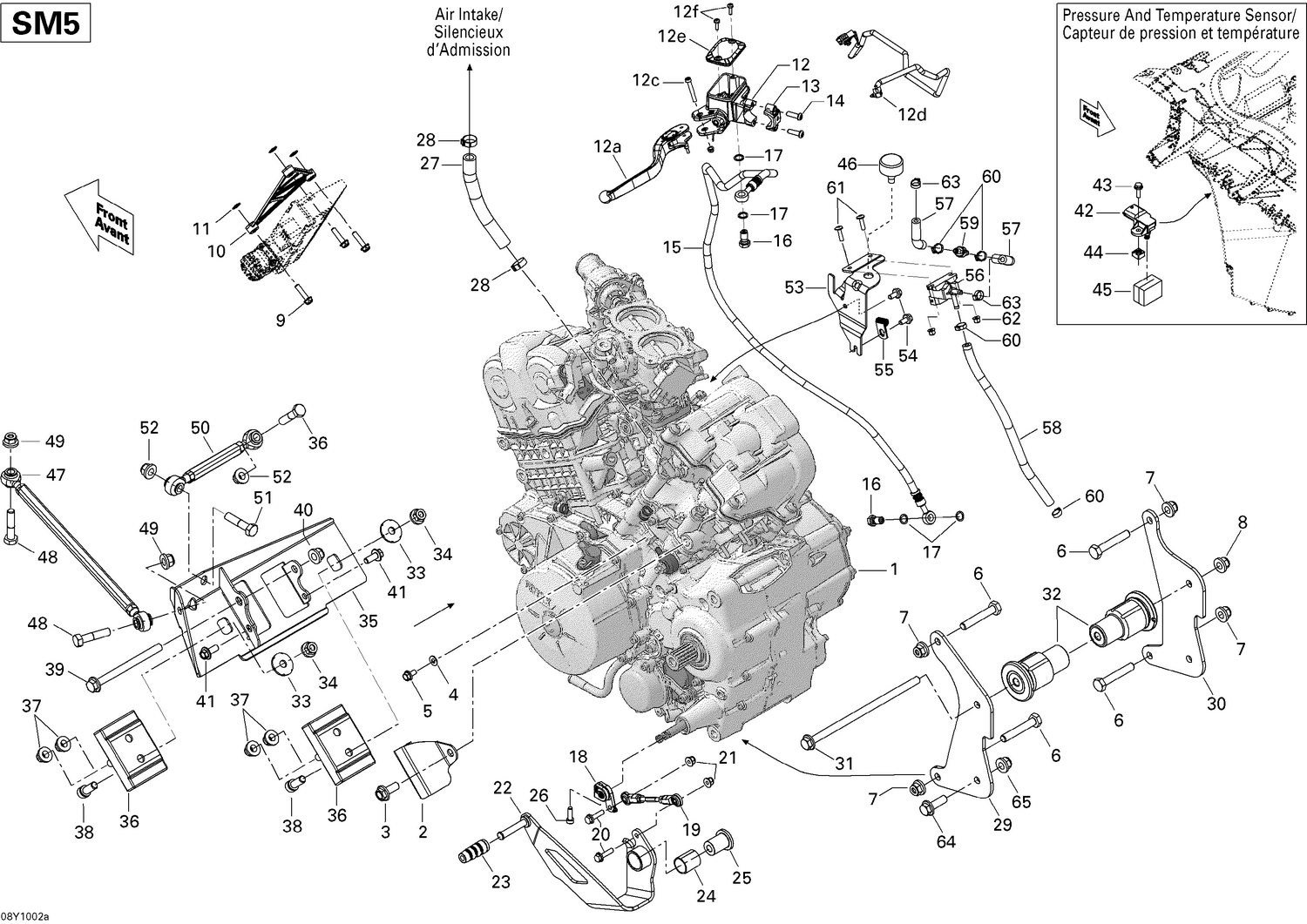

| Ref | Part Number | Description |
|---|
| 1 |
421000708 |
Short Block SM5 This part replaces 707000628. |
| 2 |
707000845 |
DEFLECTOR - Call your local BRP dealership |
| 3 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 4 |
224061121 |
Flat Washer |
| 5 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 6 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 8 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 9 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 10 |
710001886 |
Spacer |
| 11 |
732610072 |
Push Nut |
| 12 |
707001211 |
Master Cylinder Ass'y with Lever This part replaces 707000653. |
| 12a |
Not |
Available As Spare Part - Lever Ass'y |
| 12b |
719000049 |
Clamps This part replaces 219800081. |
| 12c |
Not |
Available As Spare Part - Pin |
| 12d |
219800083 |
MICROSWITCH - Call your local BRP dealership |
| 12e |
219800096 |
Cap Set |
| 12f |
415129356 |
Screw M4 X 20 |
| 13 |
719000049 |
Clamps This part replaces 219800081. |
| 14 |
250000433 |
Torx Screw M6 X 20 |
| 15 |
707000654 |
HOSE - Call your local BRP dealership |
| 16 |
414920500 |
Banjo Bolt |
| 17 |
414920600 |
Washer |
| 18 |
707000649 |
SHIFTER ARM - Call your local BRP dealership |
| 19 |
504152819 |
Linkage Rod |
| 20 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
707000950 |
LEVER - Call your local BRP dealership This part replaces 707000696. |
| 23 |
707000456 |
End Clutch Pedal |
| 24 |
503191554 |
Bushing |
| 25 |
503190698 |
Axle |
| 26 |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 27 |
219704436 |
HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership |
| 28 |
293650186 |
Oetiker Clamp |
| 29 |
707000510 |
LH SUPPORT - Call your local BRP dealership |
| 30 |
707000512 |
RH SUPPORT - Call your local BRP dealership |
| 31 |
250000286 |
HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership |
| 32 |
707000814 |
RUBBER MOUNT - Call your local BRP dealership |
| 33 |
512056700 |
Lock Washer |
| 34 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 35 |
707000823 |
Front Engine Support |
| 36 |
707000815 |
RUBBER MOUNT - Call your local BRP dealership |
| 37 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 38 |
205002544 |
Socket Head Screw M10 X 25 |
| 39 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 40 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 41 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 42 |
707000995 |
Pressure And Temperature Sensor This part replaces 707000564. |
| 43 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 44 |
269500725 |
M6 Nut Housing Ass'y |
| 45 |
707000586 |
Foam Filter |
| 46 |
708000758 |
Rubber Stopper |
| 47 |
707000816 |
TIE ROD ASS'Y - Call your local BRP dealership |
| 48 |
207004544 |
Hex. Screw M10 X 45 |
| 49 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 50 |
707000817 |
Rod Ass'y |
| 51 |
207004544 |
Hex. Screw M10 X 45 |
| 52 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 53 |
707000756 |
Intake Support |
| 54 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 55 |
415052400 |
Bracket |
| 56 |
707001596 |
Solenoid Valve This part replaces 707000530. |
| 57 |
513033565 |
Hose This part replaces 415129493. |
| 58 |
513033565 |
Hose This part replaces 415129493. |
| 59 |
513033469 |
Check Valve |
| 60 |
293650042 |
Oetiker Clamp |
| 61 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 62 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 63 |
293650042 |
Oetiker Clamp |
| 64 |
207602544 |
Hex. Flange Screw M10 X 25 |
