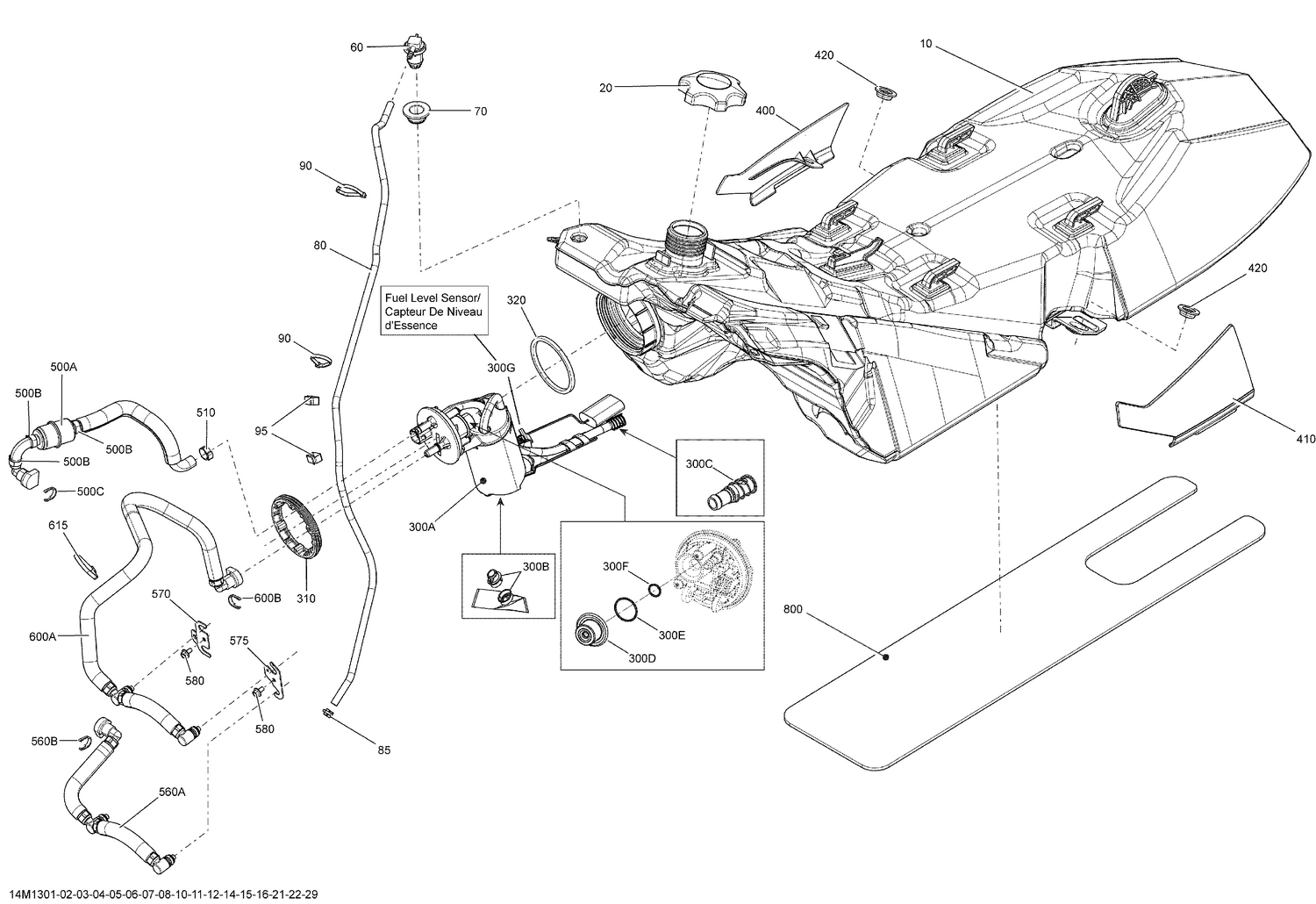

02- Fuel System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033667 | Fuel Tank |
| 20 | 513033722 | Fuel Tank Cap 91 Octane |
| 60 | 513033842 | Check Valve This part replaces 513033188. |
| 70 | 513033596 | Grommet |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 85 | 414554800 | Spring Clamp |
| 90 | 293750008 | Tie Wrap 368 mm |
| 95 | XXX | Not Available As Spare Parts |
| 300B | 415129451 | Fuel Filter |
| 300C | 414872100 | Fuel Filter Strainer |
| 300D | 415129821 | Regulator |
| 300E | 415129822 | O-Ring |
| 300F | 415129823 | O-Ring |
| 310 | 513033180 | Ring |
| 320 | 513033334 | Gasket |
| 400 | 513033418 | RH Cap |
| 410 | 513033419 | LH Cap |
| 420 | 513033326 | Shoulder Bushing |
| 500B | 293650125 | Oetiker Clamp |
| 500C | 513033135 | Locking Clip |
| 510 | 293650053 | Crimp Clamp |
| 560B | 513033135 | Locking Clip |
| 570 | 513033542 | Bracket |
| 575 | 513033593 | Bracket |
| 580 | 207551044 | Hex. Flange Screw M5 X 10 |
| 600B | 513033135 | Locking Clip |
| 615 | 414115200 | Tie-Rap 180 mm |
