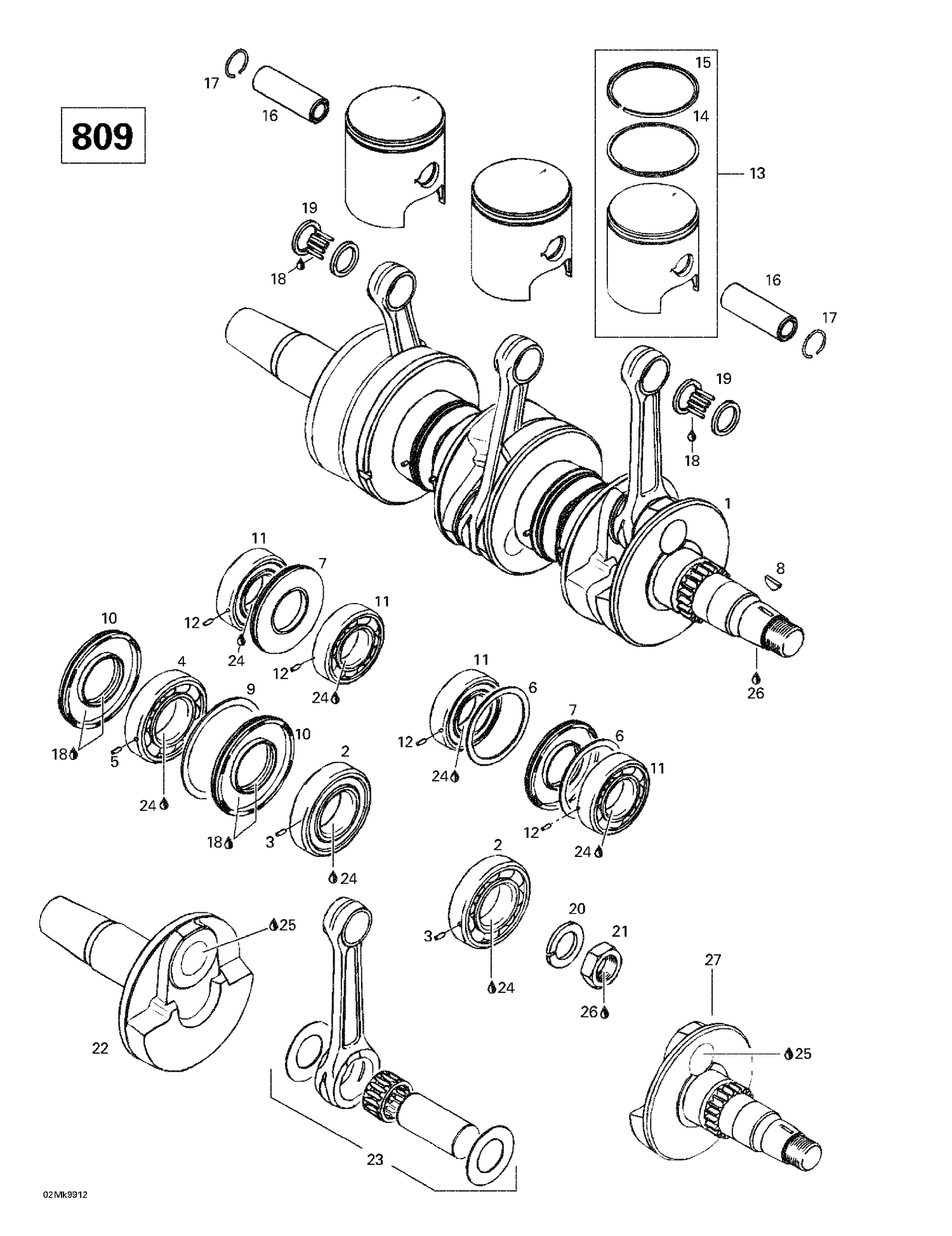

| Ref | Part Number | Description |
|---|
| 6 |
420927710 |
Retaining Disk |
| 7 |
420831952 |
Oil Seal This part replaces 420831950. |
| 8 |
420246015 |
Woodruff Key |
| 9 |
420926190 |
Washer |
| 10 |
420931280 |
Oil Seal |
| 14 |
420915988 |
Rectangular Ring 70.5 mm |
| 15 |
420815048 |
Semi-Tapez Ring 70.5 mm |
| 16 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 17 |
420945735 |
Piston Circlip |
| 18 |
413707000 |
Dow Corning 111, 150 g |
| 19 |
420832320 |
Needle Bearing |
| 20 |
420945759 |
Lock Washer, 22 mm |
| 21 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 22 |
420818572 |
Crankshaft (PTO Side) |
| 23 |
420887663 |
ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership |
| 24 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 293800039. |
| 26 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 420887664 |
Rod |
Repair Kit (MAG/Center Side) 420887664 |
