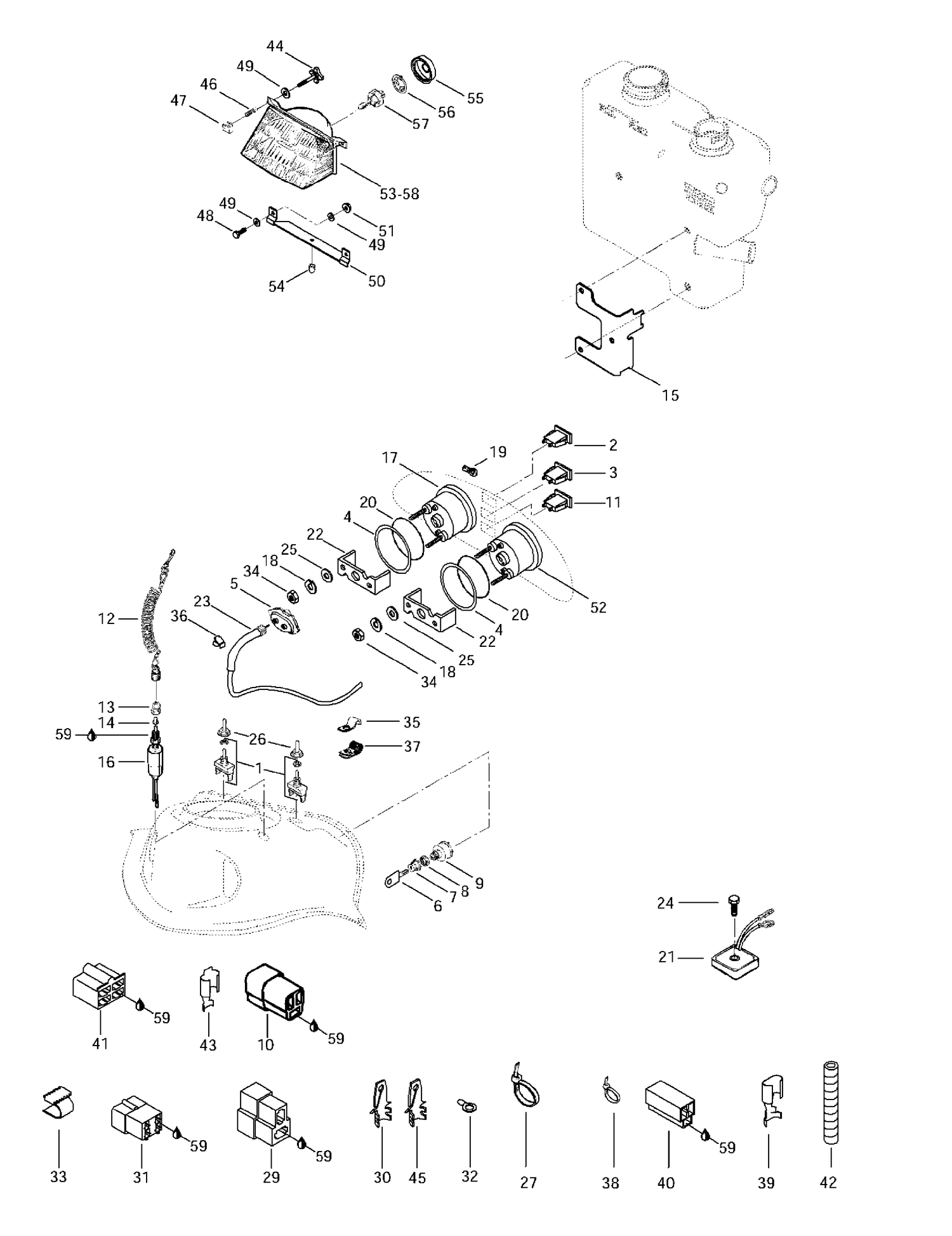

| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
410109500 |
Pilot Lamp (Red) |
| 3 |
410109600 |
Pilot Lamp (Blue) |
| 4 |
517258500 |
Washer |
| 5 |
572022300 |
Drive Angle |
| 6 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 7 |
570013700 |
Switch Boot |
| 8 |
410112100 |
FACE NUT - Call your local BRP dealership This part replaces 410107800. |
| 9 |
410111300 |
IGNITION SWITCH - Call your local BRP dealership |
| 10 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 11 |
410109700 |
Pilot Lamp, Engine Temperature |
| 12 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 13 |
515145900 |
Switch Nut |
| 14 |
570151100 |
Plunger Cap |
| 15 |
517281800 |
Support Cable |
| 16 |
515175653 |
Brake Switch This part replaces 410106700. |
| 17 |
415034000 |
Speedometer (KMH) |
| 18 |
414806700 |
Lock Washer |
| 19 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 20 |
414807100 |
O-Ring |
| 21 |
515163800 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 22 |
414806500 |
Case Holder |
| 23 |
414761400 |
Speedometer Cable |
| 24 |
732600016 |
Hex. Screw M6 x 35 |
| 25 |
517225900 |
Flat Washer This part replaces 414806800. |
| 26 |
515175281 |
Switch Cover This part replaces 570013900. |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
515175241 |
Resistance This part replaces 410911000. |
| 29 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 30 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 31 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 32 |
409003200 |
OPEN BARREL - Call your local BRP dealership |
| 33 |
409205600 |
CLIP - Call your local BRP dealership |
| 34 |
414806900 |
Nut |
| 35 |
415018200 |
CLIP - Call your local BRP dealership |
| 36 |
414227300 |
Clip This part replaces 414943400. |
| 37 |
414176000 |
Open Clamp |
| 38 |
293750001 |
Tie Wrap 94 mm This part replaces 414677700. |
| 39 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 40 |
409204300 |
Female Housing |
| 41 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 42 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 43 |
561503200 |
Female Terminal PACKARD |
| 44 |
415006100 |
Adjuster Screw Ass'y |
| 45 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 46 |
517168600 |
Spring |
| 47 |
572078600 |
Projector Nut |
| 48 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 49 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 50 |
517218500 |
Headlamp Support |
| 51 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 52 |
415034200 |
Tachometer |
| 54 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 55 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 56 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 57 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 58 |
410608900 |
Headlamp |
