| Ref | Part Number | Description |
|---|
| 8 |
0395448 |
BALL & SOCKET ASSY |
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 11 |
0307267 |
SCREW |
| 12 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 13 |
0310058 |
GASKET, Thermostat |
| 14 |
0316132 |
GORMMET, Valve |
| 15 |
0335493 |
VALVE, Pressure relief This part replaces 0317653. |
| 16 |
0315626 |
SPRING, Valve |
| 17 |
0315538 |
GASKET, Cover to head |
| 18 |
0322898 |
COVER, Cylinder head |
| 19 |
0323359 |
SCREW, Head cover |
| 20 |
0389471 |
SPARK PLUG, Champion L78 |
| 20 |
0390659 |
SPARK PLUG, Champion QL-78V |
| 20 |
0432424 |
SPARK PLUG , QL16V |
| 21 |
0376349 |
FIL, masse |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0325308. |
| 28 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 29 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 31 |
0397018 |
YOKE & THUMBWHEEL |
| 34 |
0306012 |
BOW WASHER |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0908398 |
WASHER |
| 41 |
0329673 |
LEVER, Spark advance |
| 43 |
0329679 |
SLEEVE, Advance lever |
| 44 |
0439834 |
LEVER, Throttle control This part replaces 0331631. |
| 48 |
0398134 |
THROTTLE CAM |
| 49 |
0326023 |
LIFT BRACKET |
| 51 |
0396832 |
SHIFT LEVER |
| 53 |
0316134 |
VIS, dispositif de blocage vers levier de sens de marche |
| 54 |
0329677 |
SCREW, Roller |
| 58 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 59 |
0324812 |
SCREW, Exh. hsg. to powerhead |
| 60 |
0396831 |
LEVER SHIFT ROD |
| 61 |
0330705 |
DENTENT, Shift lever |
| 62 |
0330913 |
RESSORT, dispositif de blocage |
| 63 |
0335359 |
GASKET, Cylinder head This part replaces 0327795. |
| 64 |
0325603 |
CYLINDER HEAD |
| 65 |
0312708 |
BUSHING |
| 66 |
0329682 |
ROD, Lever to cam |
| 69 |
0432572 |
ROLLER & SLEEVE ASSY |
| 72 |
0206409 |
PIVOT SCREW |
| 73 |
0332143 |
ROD, Lever to cam |
| 75 |
0127386 |
RONDELLE This part replaces 0303913. |
| 77 |
0327721 |
HOSE, Elbow to tee |
| 79 |
0303887 |
WASHEER, Pin to swivel bracket |
| 81 |
0206414 |
LOCKWASHER, Pivot screw |
| 84 |
0330212 |
RESSORT, appui, dispositif de blocage commande sens de marche |
| 88 |
0202026 |
LOCK WASHER, Stud |
| 89 |
0331109 |
SCREW, Lever |
| 90 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 91 |
0320302 |
BUSHING, Laink to lever |
| 92 |
0332279 |
SCREW, Gearcase to housing, long |
| 93 |
0436753 |
SHIFT LEVER This part replaces 0331108. |
| 94 |
0331765 |
BUSHING & ROD KEEPER |
| 96 |
0331329 |
BRACKET, Idle speed |
| 97 |
0328734 |
BOW WASHER |
| 98 |
0318660 |
BUMPER, Screw, throttle stop |
| 99 |
0328699 |
LEVER, Spark control |
| 106 |
0331635 |
SCREW, Idle stop |
| 107 |
0329590 |
SPACER, Clamp |
| 108 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 109 |
0330368 |
BUSHING, Timber base |
| 110 |
0329168 |
SOCKET |
| 0396913 |
0396913 |

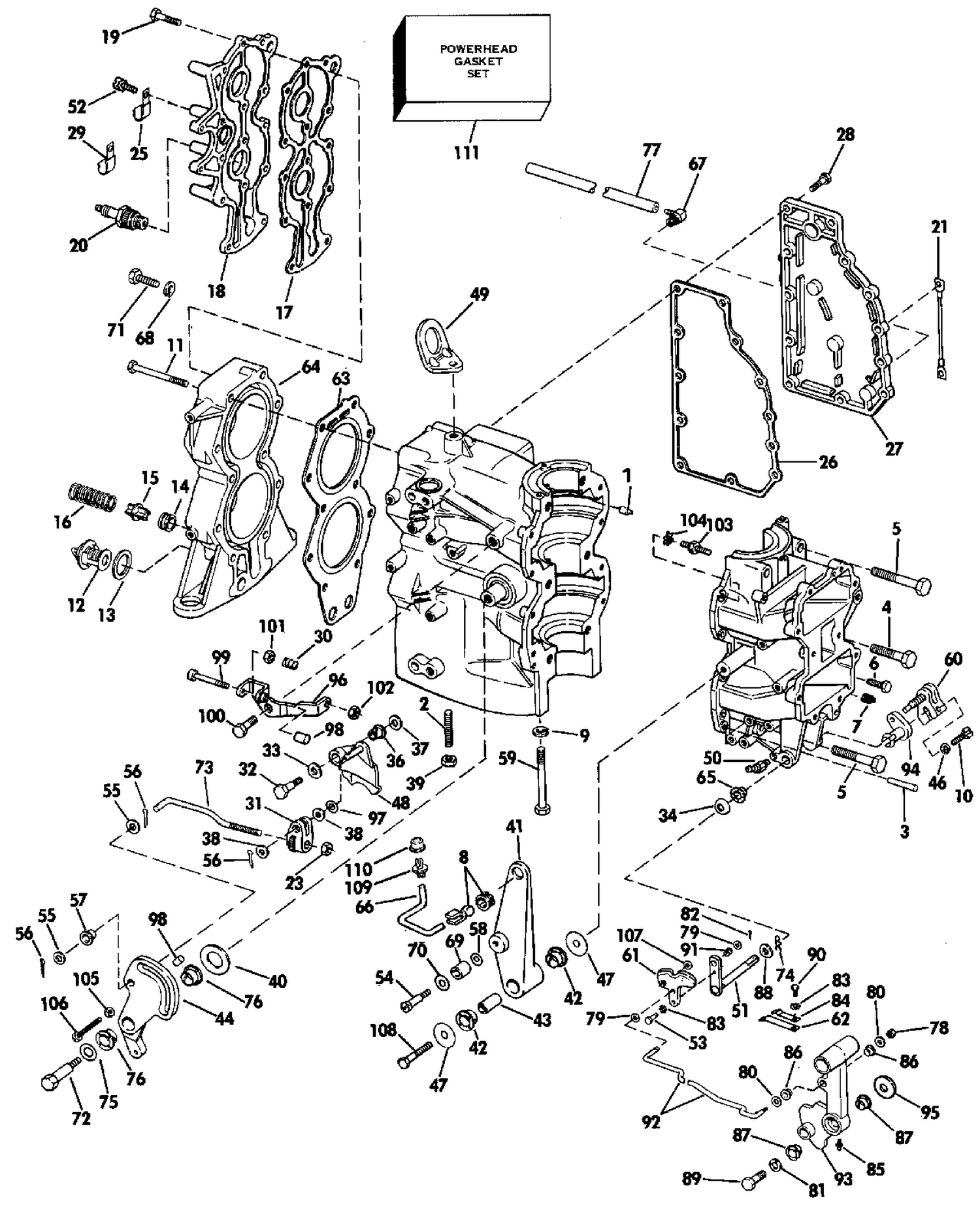

CYLINDER & C'CASE ASSY. |
