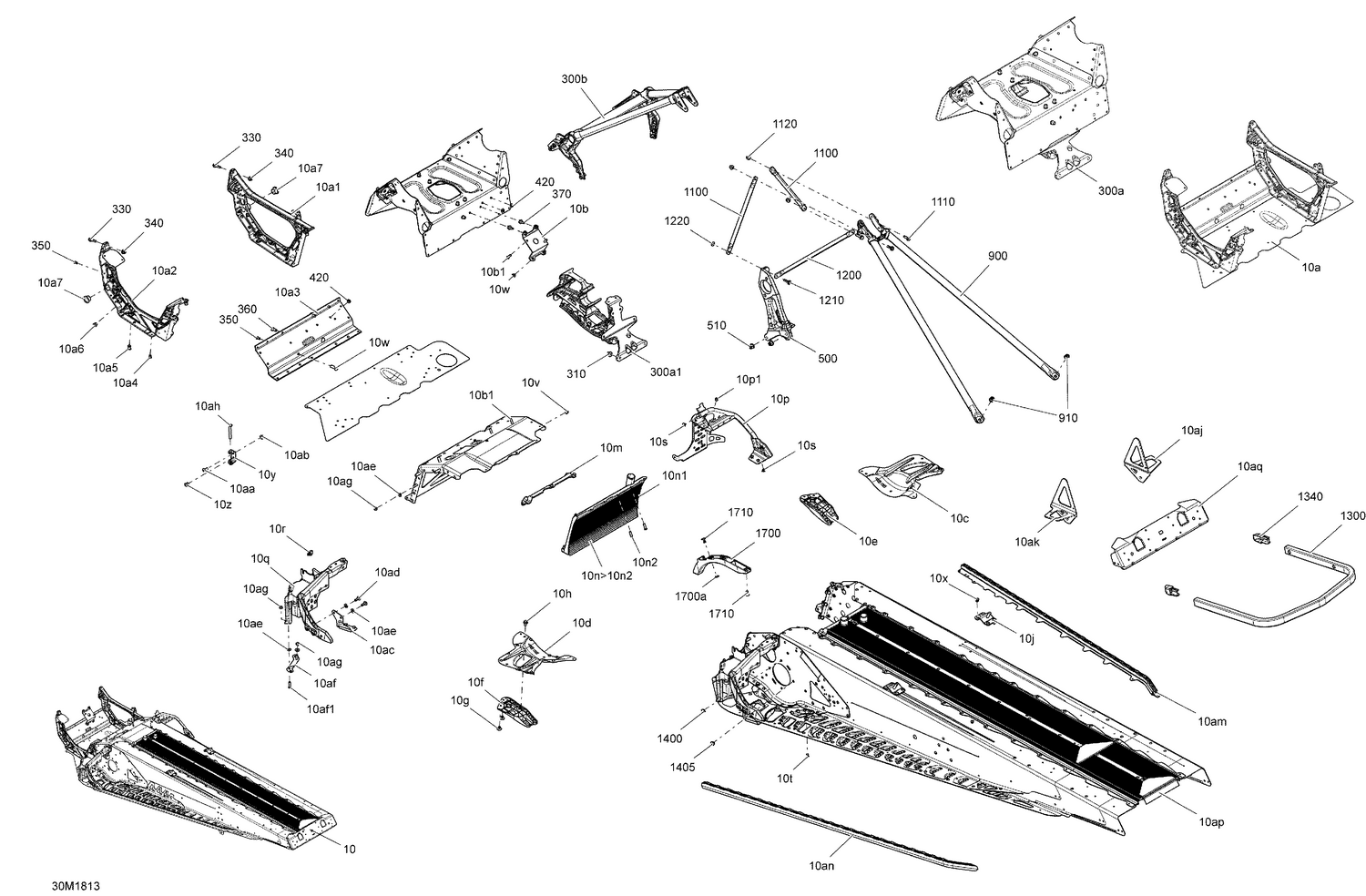

09- Frame Renegade - 600 CARB
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 518327567 | E Module |
| 10a1 | 518326795 | RH Member |
| 10a2 | 518326796 | LH Member |
| 10a3 | 518326198 | Front Member |
| 10a4 | 293150144 | Stavex Rivet |
| 10a5 | 293150120 | Hemlock Rivet 6.5 mm |
| 10a6 | 293150119 | Hemlock Rivet, 6.5 mm |
| 10a7 | 505073317 | Leg Cushion |
| 10aa | 250000534 | Tork Screw M6 X 16 |
| 10ab | 233061414 | Hex. Flange Nut M6 |
| 10ac | 518326960 | Support |
| 10ad | 250000536 | Tork Screw M6 X 18 |
| 10ae | 250200039 | Flat Washer |
| 10af | 518326986 | Attach |
| 10af1 | 250300027 | Clinch Stud M6 X 20 |
| 10ag | 232561414 | Elastic Stop Nut M6 |
| 10ah | 250000535 | Torx Screw M8 X 55 |
| 10aj | 518328790 | LH Bracket |
| 10ak | 518328789 | RH Bracket |
| 10am | 518325377 | RH ROLLER - Call your local BRP dealership |
| 10an | 518325378 | LH Roller |
| 10ap | 518327588 | Rear Radiator 137'' |
| 10aq | 518327105 | Rear Cap |
| 10b | 518325943 | MAG Engine Support |
| 10b1 | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518324874 | RH Reinforcement |
| 10d | 518324875 | LH Reinforcement |
| 10e | 518325782 | RH Deflector, Black Polypropylene |
| 10f | 518325783 | LH Deflector, Black Polypropylene |
| 10g | 293150104 | Pop Rivet 3/16" |
| 10h | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 10j | 518325973 | RH Rear Base |
| 10j | 518325974 | LH Rear Base |
| 10m | 518326656 | Seal |
| 10n1 | 518326485 | Front Radiator This part replaces 518326486. |
| 10n2 | 250300027 | Clinch Stud M6 X 20 |
| 10p | 518328938 | RH Stirup |
| 10p1 | 390909200 | Avex Rivet |
| 10q | 518326820 | LH Stirup |
| 10r | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 10s | 293730042 | Full Moon Dart 5 mm |
| 10t | 390909100 | Avex Rivet |
| 10v | 293150146 | Henrob Rivet |
| 10w | 293150119 | Hemlock Rivet, 6.5 mm |
| 10x | 293150174 | Hemlock Rivet, 6.4 mm |
| 10y | 518326961 | U-Attach |
| 10z | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 300 | 518328320 | Cross Member S Module |
| 300a1 | 518327487 | Front Suspension Support |
| 300b | 518326970 | Front Member |
| 310 | 233281414 | Hex. Flange Elastic Nut M8 |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 340 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 350 | 293150191 | Monobolt Rivet, 4.8 mm |
| 360 | 293150182 | Monobolt Rivet 6.4 |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 420 | 293730053 | Black Dart 5 mm |
| 500 | 518328346 | Pulley Support |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 900 | 518326559 | Rear Member |
| 910 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1100 | 518325114 | Upper Lateral Column Support |
| 1110 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1200 | 518325115 | Center Column Support |
| 1210 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1300 | 518324980 | Clear Rear Bumper |
| 1340 | 520000567 | Full Moon Cap |
| 1400 | 293730041 | Full Moon Dart 8 mm |
| 1405 | 293730059 | Full Moon Dart 10 mm |
| 1700a | 517124300 | Washer |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6000 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
