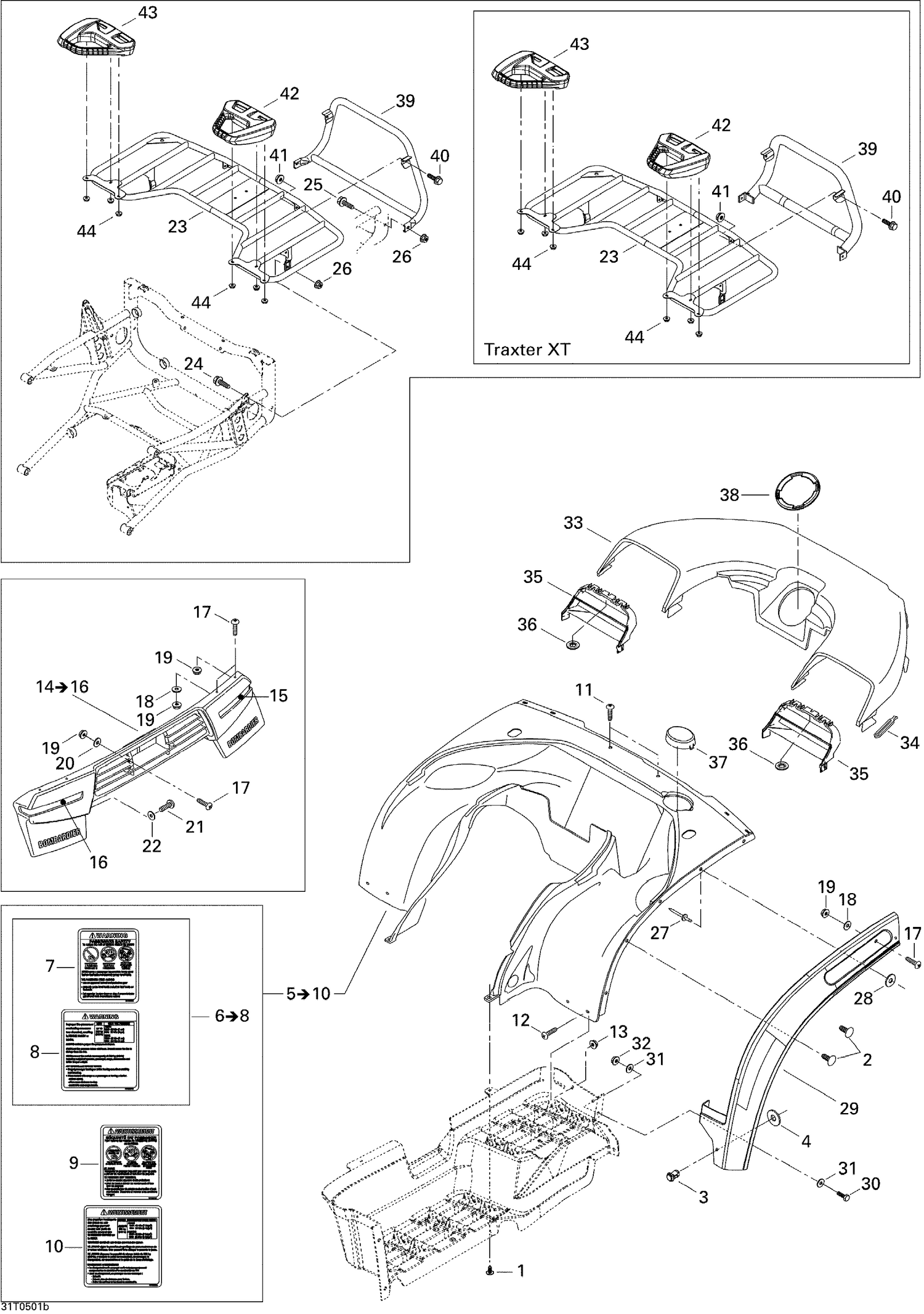

09- Body And Accessories 2
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293730011 | Black, Dart |
| 2 | 293730011 | Black, Dart |
| 3 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4 | Not | Available As Spare Part - Flat Washer |
| 11 | 732600009 | PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 12 | 250000080 | PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 704900085 | RH Rear Reflector |
| 16 | 704900086 | LH Rear Reflector |
| 17 | 250000080 | PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 18 | 224060201 | Flat Washer |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 224060201 | Flat Washer |
| 21 | 732600009 | PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 22 | 224061121 | Flat Washer |
| 23 | 705000674 | Luggage Rack, Black |
| 24 | 207682044 | Hex. Flange Screw M8 X 20 |
| 25 | 207685044 | Hex. Flange Screw M8 X 50 |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 |
| 27 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 28 | 234082410 | Flat Washer 8 mm |
| 29 | 705001592 | RH Front Mudguard |
| 29 | 705001593 | LH Front Mudguard |
| 30 | 207162044 | Hex. Screw M6 X 20 |
| 31 | 224060201 | Flat Washer |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 34 | 570023800 | Windshield Latch |
| 35 | 705000180 | LH Grill, Black |
| 35 | 705000181 | RH Grill, Black |
| 36 | 250100000 | PUSH NUT - Call your local BRP dealership |
| 37 | 705000132 | COVER, BLACK - Call your local BRP dealership |
| 38 | 705000207 | CAP - Call your local BRP dealership |
| 40 | 207682544 | Hex. Flange Screw M8 X 25 |
| 41 | 233281414 | Hex. Flange Elastic Nut M8 |
| 42 | 705001761 | LH Handle |
| 43 | 705001762 | RH Handle |
