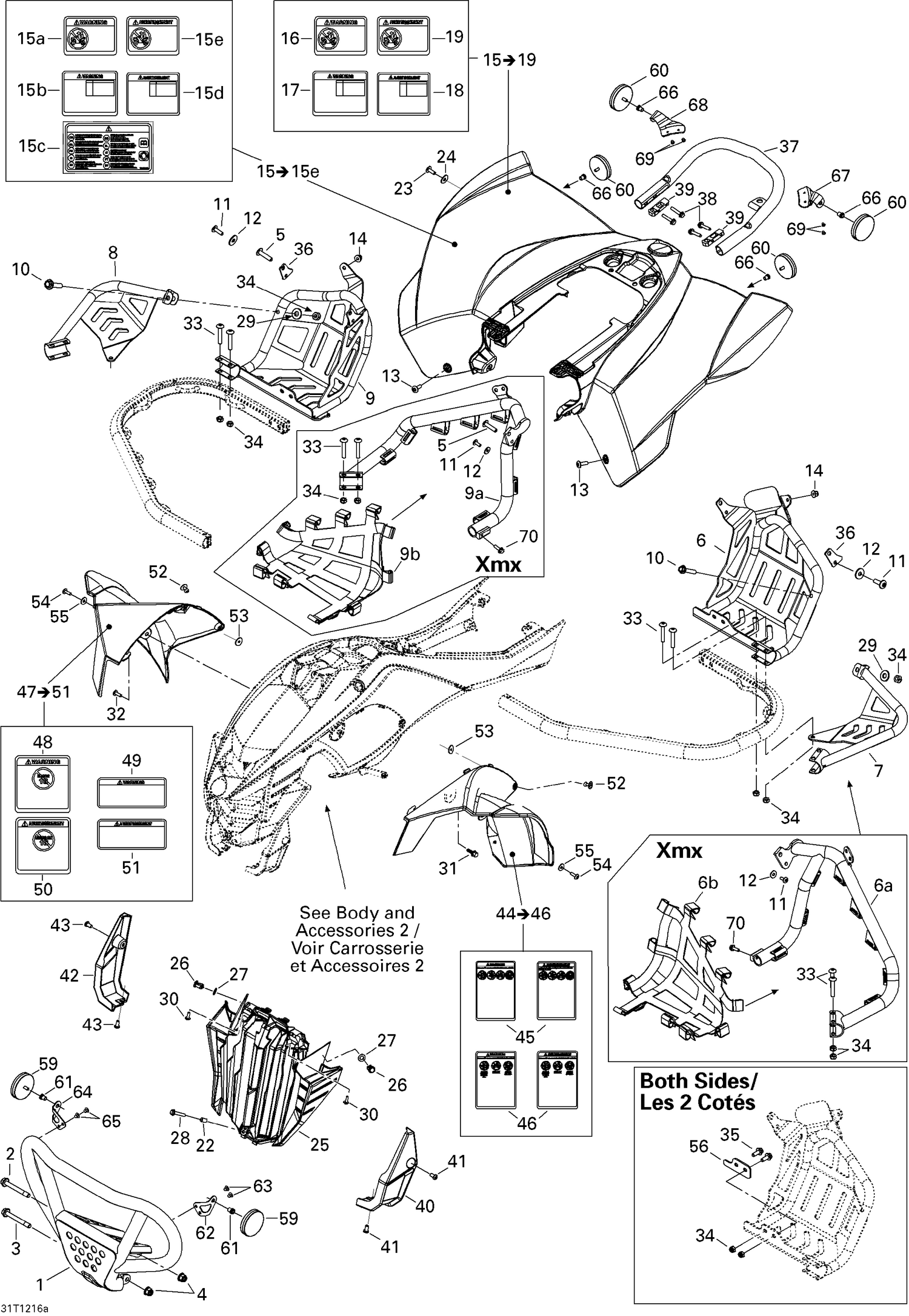

| Ref | Part Number | Description |
|---|
| 1 |
705002767 |
FRONT BUMPER - Call your local BRP dealership |
| 4 |
233181434 |
Hex. Flange Nut M8 |
| 5 |
250000256 |
Torx Truss Screw M8 X 35 |
| 6a |
705003807 |
LH PROTECTOR - Call your local BRP dealership |
| 6b |
705003820 |
LH NET - Call your local BRP dealership |
| 9a |
705003817 |
RH PROTECTOR - Call your local BRP dealership |
| 9b |
705003821 |
RH NET - Call your local BRP dealership |
| 11 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 12 |
234062670 |
Stainless Steel Flat Washer |
| 13 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 |
232561434 |
Elastic Stop Nut M6 |
| 15a |
704900005 |
WARNING DECAL, PASSENGER - Call your local BRP dealership |
| 15b |
704902001 |
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership |
| 15c |
704901394 |
International Decal, Multilingual |
| 15d |
704902002 |
WARNING DECAL, PASSENGER, FRENCH - Call your local BRP dealership |
| 15e |
704900006 |
Warning Decal, Passenger, French |
| 16 |
704900005 |
WARNING DECAL, PASSENGER - Call your local BRP dealership |
| 17 |
704901365 |
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership |
| 18 |
704901395 |
Warning Decal Tire Pressure, French |
| 19 |
704900006 |
Warning Decal, Passenger, French |
| 22 |
707000058 |
Spacer |
| 23 |
250000223 |
Torx Screw M6 X 16 |
| 24 |
234062670 |
Stainless Steel Flat Washer |
| 25 |
705004009 |
RADIATOR PROTECTOR ASS'Y - Call your local BRP dealership |
| 26 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 27 |
506151252 |
Washer |
| 28 |
207662534 |
Hex. Flange Screw M6 X 25 |
| 30 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 31 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 32 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 33 |
250000761 |
Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 37 |
705002769 |
REAR BUMPER - Call your local BRP dealership |
| 38 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 39 |
705002913 |
CLAMP - Call your local BRP dealership |
| 40 |
705002514 |
LH RADIATOR MOULDING - Call your local BRP dealership |
| 41 |
250000339 |
SOCKET SCREW M6 X 12 - Call your local BRP dealership |
| 42 |
705002515 |
RH RADIATOR MOULDING - Call your local BRP dealership |
| 43 |
250000339 |
SOCKET SCREW M6 X 12 - Call your local BRP dealership |
| 45 |
704900002 |
Warning Decal, Death And Injuries |
| 46 |
704901875 |
Warning Decal, Death And Injuries |
| 48 |
704900011 |
Warning Decal, Under 16 Years Old |
| 49 |
704901133 |
WARNING DECAL, PERFORMANCE - Call your local BRP dealership |
| 50 |
704900012 |
Warning Decal, Under 16 Years Old |
| 51 |
704901135 |
Warning Decal, Performance, French |
| 52 |
293150123 |
Pop Rivet 3/16" |
| 53 |
503191273 |
Washer |
| 54 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 55 |
234062670 |
Stainless Steel Flat Washer |
| 59 |
705011222 |
Amber Reflector This part replaces 705002409. |
| 60 |
705011221 |
Red Reflector This part replaces 705002408. |
| 61 |
293450268 |
Insert M5 X 0.8 |
| 63 |
293150144 |
Stavex Rivet |
| 65 |
293150144 |
Stavex Rivet |
| 66 |
293450268 |
Insert M5 X 0.8 |
| 67 |
705002911 |
LH SUPPORT - Call your local BRP dealership |
| 68 |
705002912 |
RH SUPPORT - Call your local BRP dealership |
| 69 |
293150144 |
Stavex Rivet |
