| Ref | Part Number | Description |
|---|
| 4 |
0302288 |
BOLT |
| 5 |
0300646 |
VIS, ancrage |
| 13 |
0323682 |
CYLINDER HEAD |
| 14 |
0318609 |
GASKET, Cover |
| 15 |
0332977 |
COVER, Cylinder head |
| 17 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 18 |
0308728 |
SCREW |
| 20 |
0307267 |
SCREW |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0432424 |
SPARK PLUG , QL16V |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
0322610 |
SCREW, Cylinder head |
| 23 |
0317245 |
SPRING, Control valve |
| 24 |
0317219 |
COVER, Thermostat & valves |
| 25 |
0393545 |
BELLCRANK ASSY., Shift |
| 26 |
0317581 |
SCREW, Actuator cam |
| 27 |
0332108 |
GASKET, Thermostat cover |
| 28 |
0331917 |
GASKET, Plate to crankcase |
| 29 |
0324555 |
PLATE, Exhaust manifold |
| 31 |
0390041 |
COVER, Exhaust manifold |
| 33 |
0202026 |
LOCK WASHER, Stud |
| 34 |
0323691 |
MANIFOLD, Exhaust |
| 35 |
0321601 |
SCREW, Exhaust cover |
| 37 |
0396987 |
THERMOSTAT & SEAL ASSY. |
| 38 |
0332130 |
SEAL ASSY. |
| 41 |
0306337 |
SCREW, Adjustment |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 43 |
0319318 |
LEVER, Spark adavance |
| 45 |
0395448 |
BALL & SOCKET ASSY |
| 46 |
0330275 |
LINK, Spark advance |
| 47 |
0394466 |
CAM & PIN ASSY., Throttle |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 50 |
0397018 |
YOKE & THUMBWHEEL |
| 51 |
0387800 |
LEVER, Throttle |
| 52 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 53 |
0314002 |
BUSHING |
| 54 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 55 |
0314003 |
BSHING, Spark lever |
| 56 |
0314098 |
WASHER, Throttle lever |
| 57 |
0314094 |
LINK, Throttle lever to cam |
| 58 |
0329889 |
LINK Throttle lever to cam |
| 59 |
0314136 |
VIS, came de papillon |
| 61 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 62 |
0328734 |
BOW WASHER |
| 64 |
0330777 |
BOLT, Double ended |
| 65 |
0306012 |
BOW WASHER |
| 68 |
0908960 |
BOW WASHER, Shoulder screw |
| 69 |
0316993 |
CLAMP, Batter cable |
| 70 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 71 |
0313413 |
GASKET, Cylinder head |
| 73 |
0328722 |
SCREW, Spark adjust |
| 74 |
0584592 |
SWITCH, Temperature This part replaces 0583441. |
| 80 |
0316676 |
LOCKWASHER, Ground |
| 81 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 82 |
0314416 |
BUMBER, Advance screw |
| 84 |
0318951 |
BUSHING, Shift lever to c'case |
| 86 |
0331916 |
GASKET, Exhaust manifold |
| 88 |
0315900 |
SCREW, Cable clamp |
| 90 |
0328567 |
LINK, Bellcrank |
| 91 |
0306322 |
BOLT, Water pump |
| 96 |
0327710 |
HOSE, Indicator |
| 97 |
0318193 |
BUSHING |
| 98 |
0395588 |
LEVER & PIN ASSY., Shift lever |
| 99 |
0331855 |
SHIFT LEVER |
| 100 |
0316664 |
BRACKET, Adjustment |
| 101 |
0397958 |
VALVE, Pressure relief |
| 102 |
0332979 |
WASHER, Relief valve |
| 103 |
0333962 |
LIFT BRACKET |
| 104 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 0395576 |
0395576 |

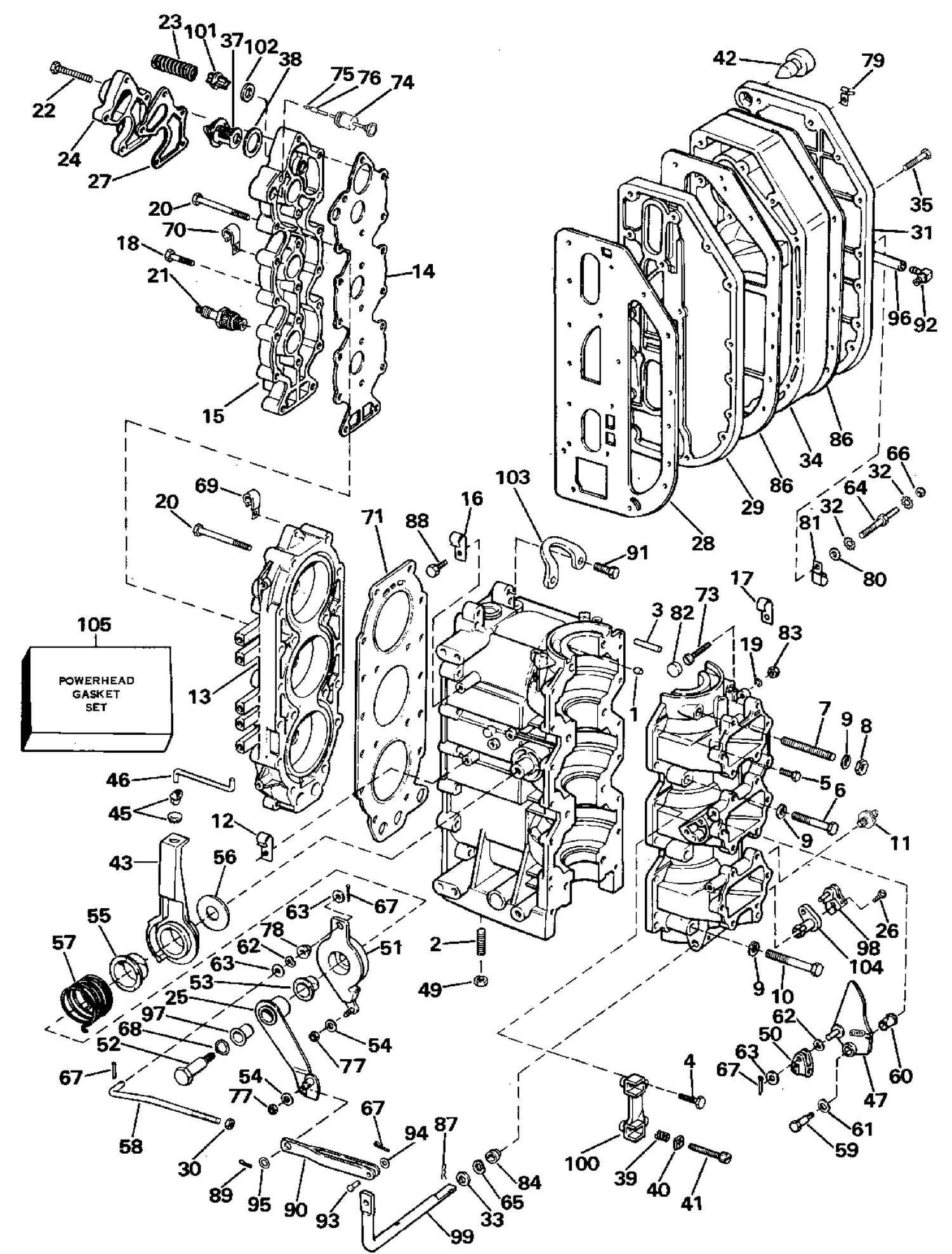

CYLINDER & CRANKCASE ASSY. |
