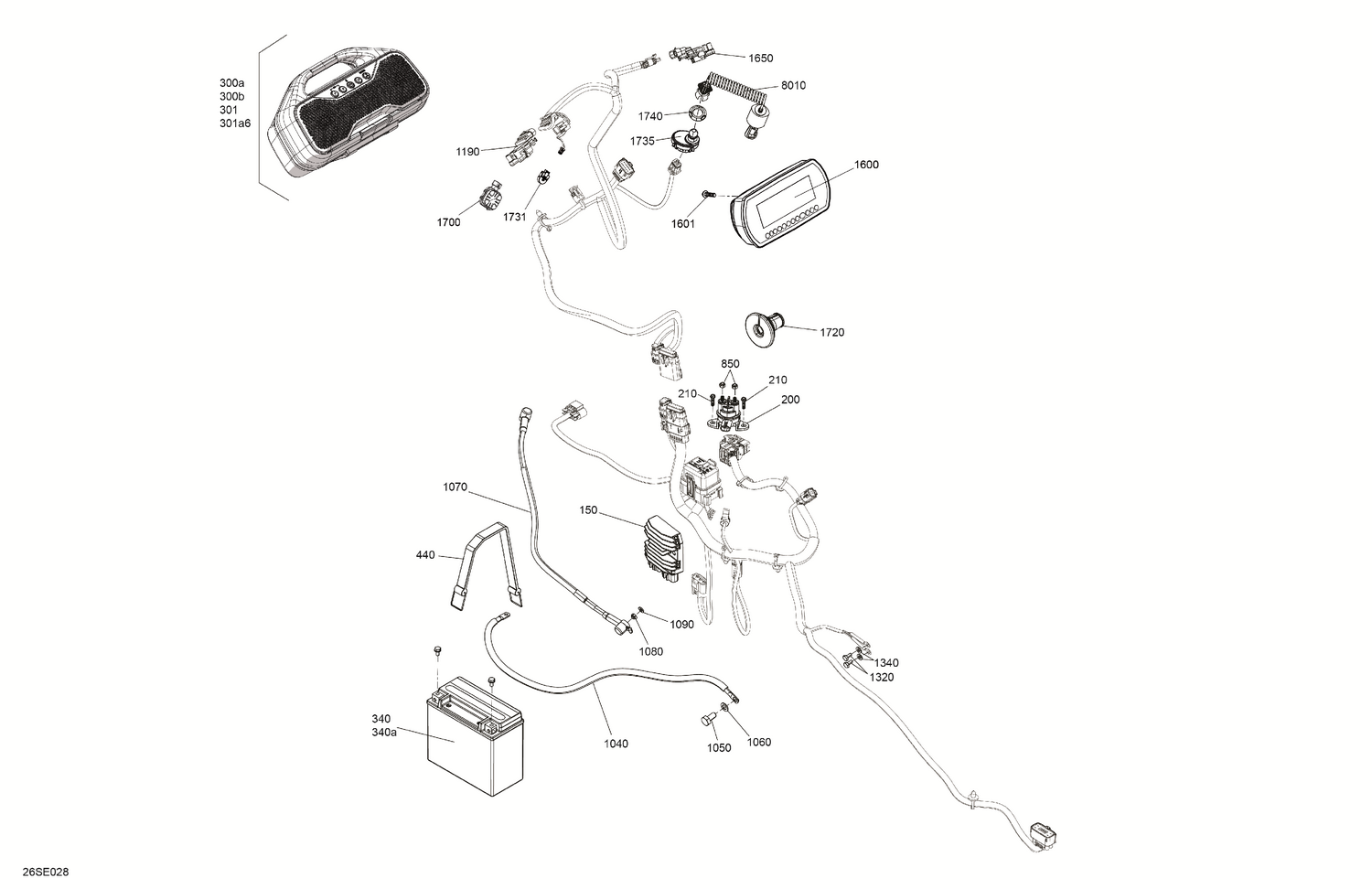

08- Electric - System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 210 | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 300a | 278003825 | AC Power Adapter |
| 300b | 278003824 | Cable Power |
| 301a6 | 278003689 | Battery Support |
| 340a | 219800541 | Battery Bolt Kit |
| 440 | 293850093 | Fuel Tank Strap |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1040 | 278003271 | Ground Cable |
| 1050 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 1060 | 234000600 | Flat Washer 10 mm, Stainless |
| 1070 | 278003268 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1600 | 278003430 | Multifunction Mono Compact Gauge |
| 1601 | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278004171 | Switch |
| 1720 | 293720092 | Cable Grommet |
| 1731 | 296000440 | Start/Stop Switch This part replaces 296000440. |
| 1735 | 515179305 | Terminal DESS One Wire |
| 1740 | 278004274 | Specialized Nut |
