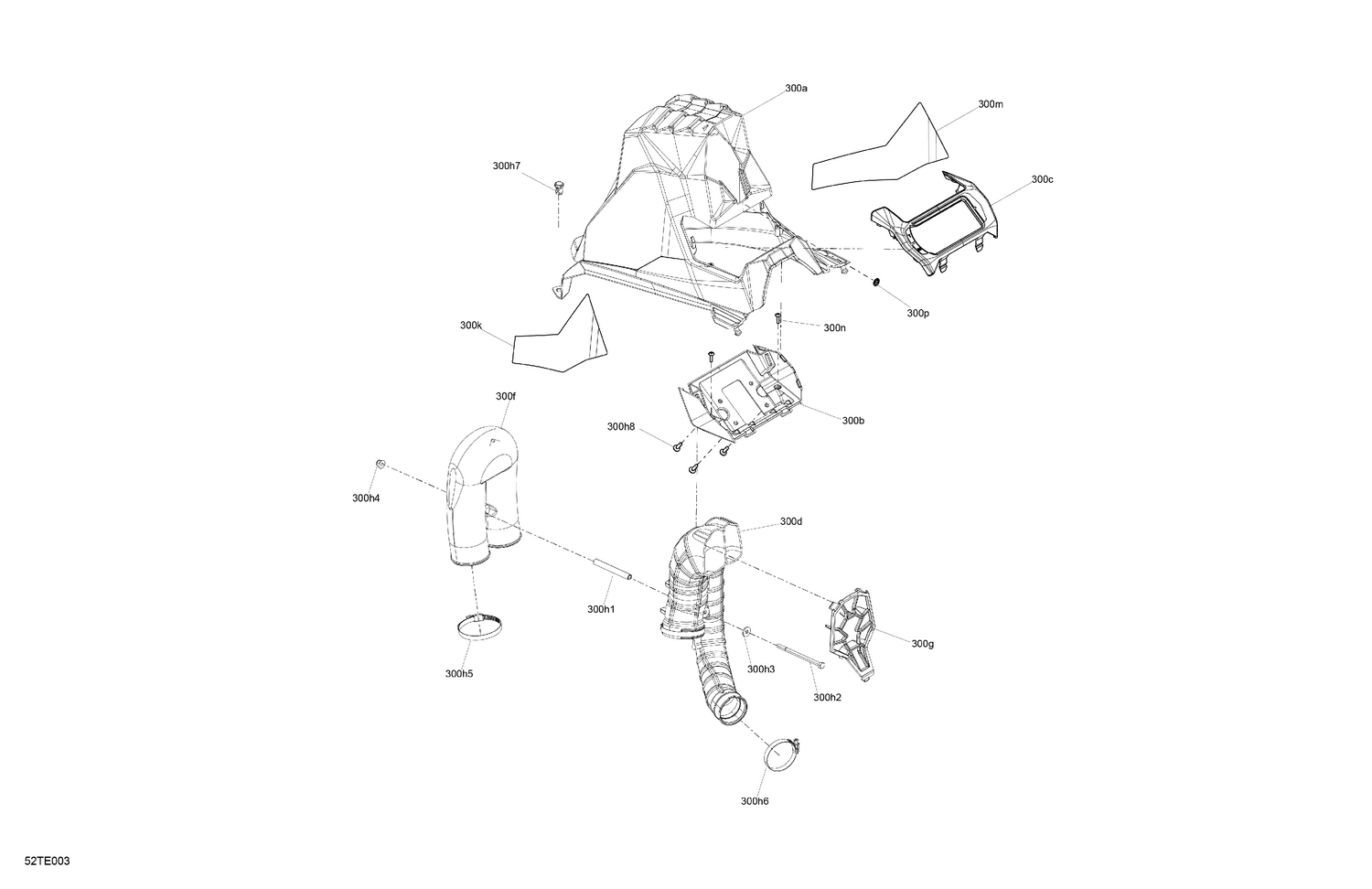

07- Body - Snorkel
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 300a | 705015170 | Snorkel |
| 300b | 705015171 | Interior Gauge Support |
| 300c | 705015189 | Gauge Trim |
| 300d | 707001779 | Upper Air Inlet |
| 300f | 707001782 | Upper Air Outlet |
| 300g | 705010922 | Prefilter Screen |
| 300h1 | 293900122 | Bushing |
| 300h2 | 230060060 | Hex. Screw M6 X 100 |
| 300h3 | 250200115 | Flat Washer M6 |
| 300h4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300h5 | 293650091 | Norma Clamp |
| 300h6 | 293650077 | Norma Clamp |
| 300h7 | 293150230 | Tuflok Plastic Rivet |
| 300h8 | 250000720 | Torx Screw K50 X 16 |
| 300k | 704909726 | LH Front Decal Hood |
| 300m | 704909727 | RH Front Decal Hood |
| 300n | 250000759 | Torx Truss Pt K40 X 16 |
