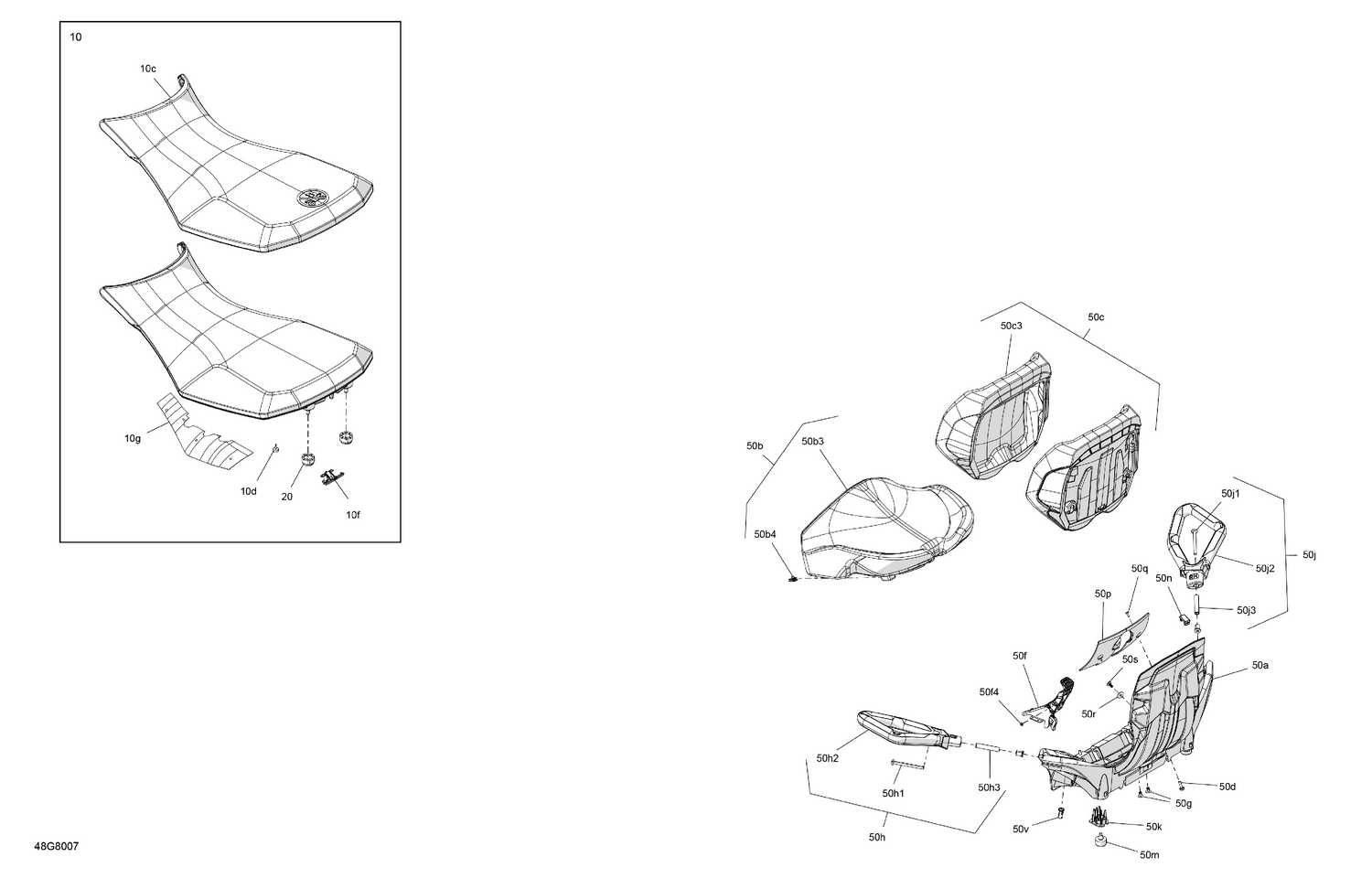

07- Body - Seat
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 708000724 | Black, Seat Cover |
| 10d | 708003866 | Seat Stopper |
| 10f | 708000909 | Latch |
| 10g | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 20 | 708000760 | Bumper Rubber |
| 50a | 708002574 | Seat Base |
| 50b3 | 708001290 | Black, Seat Cover |
| 50b4 | 250100198 | Panel Nut M6 X 1.0 |
| 50c3 | 708001841 | Back Rest Cover |
| 50d | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50f4 | 234051410 | Flat Washer M5 |
| 50g | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 50h1 | XXX | Not Available As Spare Parts |
| 50h2 | 705017221 | LH Holding Handle |
| 50h3 | 705006129 | Sleeve |
| 50j1 | XXX | Not Available As Spare Parts |
| 50j2 | XXX | Not Available As Spare Parts |
| 50j3 | 705006129 | Sleeve |
| 50k | 708001483 | Seat Support |
| 50m | 708000758 | Rubber Stopper |
| 50n | 708001511 | Insert |
| 50p | 708001512 | Cap |
| 50q | 250000577 | Torx Truss Screw K40 X 12 |
| 50r | 224060201 | Flat Washer |
| 50s | 250000546 | Oval Head Torx Screw K60 X 16 |
