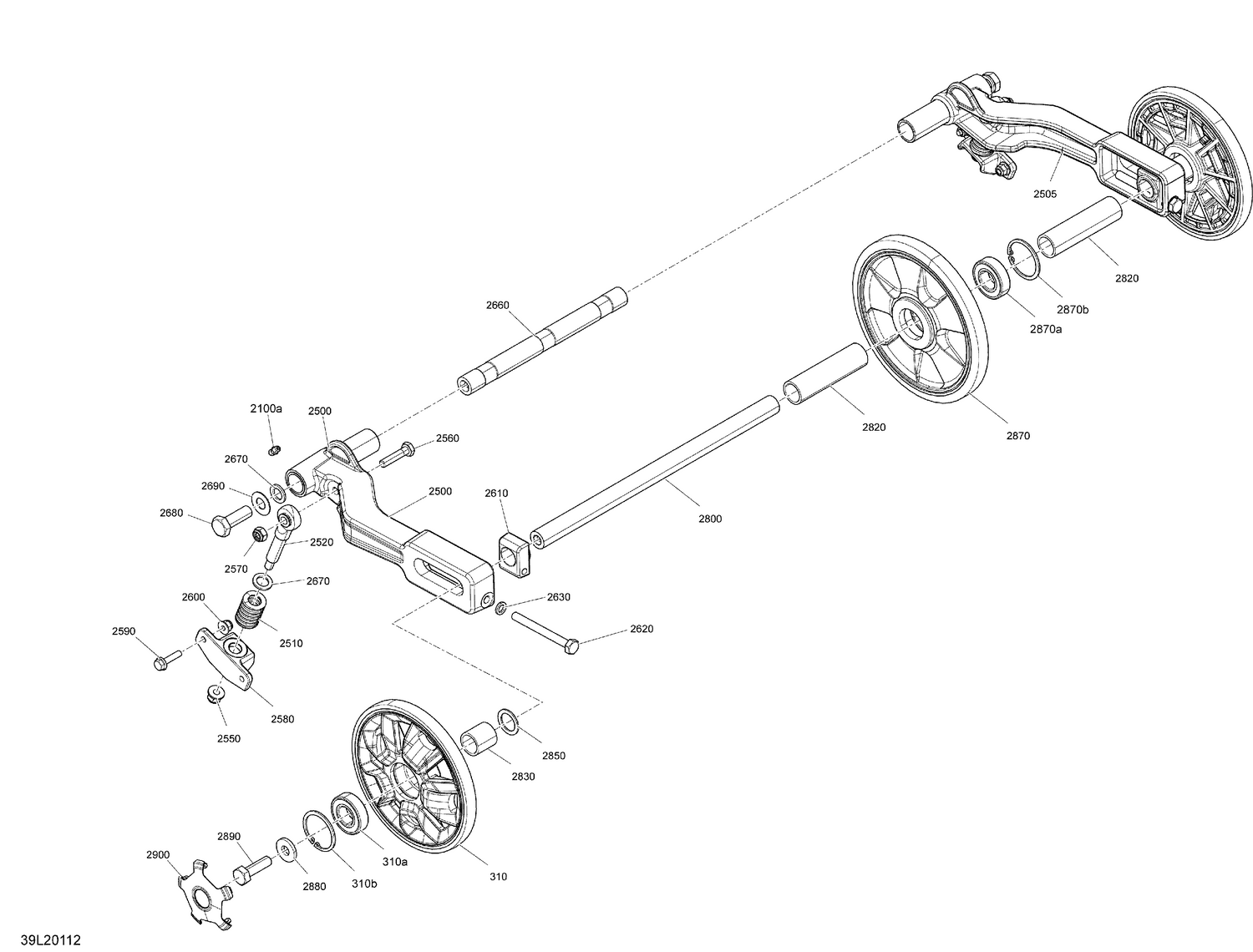

08- Suspension, Rear - System - Rear Rail Wheel Lever - PRO
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 310a | 503190396 | Ball Bearing |
| 310b | 415129371 | Retaining Ring |
| 2100a | 408200700 | Grease Fitting |
| 2500 | 503195022 | LH Rail Pivot Ass'y |
| 2505 | 503195023 | RH Rail Pivot Ass'y |
| 2510 | 503194971 | Pivot Spring |
| 2520 | 503194763 | Ball Joint Link |
| 2550 | 233281464 | Elastic Flange Nut M8 |
| 2560 | 207083544 | Hex. Screw M8 X 35 |
| 2570 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2580 | 503195105 | Extension Spring Support |
| 2590 | 207662556 | Hex. Flange Screw M6 X 25 |
| 2600 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 2610 | 503195064 | Tensioner |
| 2620 | 250000983 | Hex. Cap Screw With Nylon Patch |
| 2630 | 250200111 | Washer |
| 2660 | 503194912 | Lower Shaft |
| 2670 | 503192491 | Washer |
| 2680 | 250000537 | Hex. Cap Screw M12 X 35 |
| 2690 | 706200281 | Hardened Washer This part replaces 250200086. |
| 2800 | 503190429 | Rear Axle |
| 2820 | 503195057 | Spacer |
| 2830 | 503194647 | Spacer |
| 2850 | 31013 | Shim Ring |
| 2870a | 503190396 | Ball Bearing |
| 2870b | 415129371 | Retaining Ring |
| 2880 | 503190439 | Washer |
| 2890 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
