| Ref | Part Number | Description |
|---|
| 1 |
0318229 |
SWIVEL BRACKET |
| 1 |
0320297 |
SWIVEL BRACKET, Std |
| 1 |
0326195 |
SWIVEL BRACKET, Long |
| 3 |
0313880 |
BUSHING, Lower |
| 3 |
0317412 |
BUSHING, Upper |
| 4 |
0317776 |
SEAL |
| 5 |
0318298 |
SEAL, Lower |
| 6 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 7 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 8 |
0320248 |
RONDELLE, écrou |
| 9 |
0307238 |
RONDELLE |
| 10 |
0319886 |
SCREW |
| 10a |
710009417 |
Multifunction Gauge 10 This part replaces 710007294. |
| 11 |
0318273 |
Bolt hex retainer 1/2 in. |
| 12 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 13 |
0317419 |
SCREW |
| 14 |
0387531 |
ROD & BRACKET |
| 15 |
0317782 |
THRUST WASHER |
| 16 |
0604174 |
WASHER, Tilt bolt |
| 17 |
0436212 |
THRUST ROD ASSEMBLY This part replaces 0385787. |
| 18 |
0315013 |
RIVELT,Thrust rod |
| 19 |
0318386 |
RETAINER |
| 20 |
0307068 |
SPRING & Thrust rod |
| 21 |
0391415 |
LEVER & SHAFT |
| 23 |
0319932 |
STERN BRACKET, Port |
| 24 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 24 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 24 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 25 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 26 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 27 |
0319933 |
STERN BRACKET, Starboard |
| 28 |
0315860 |
COVER WATER TUBE |
| 29 |
0390534 |
ARM & SHAFT ASSY., Std |
| 29 |
0390535 |
ARM & SHAFT ASSY., Long |
| 30 |
0318295 |
THRUST WASHER, Upper |
| 31 |
0318296 |
THRUST WASHER, Lower |
| 32 |
0318168 |
BUSHING |
| 33 |
0315961 |
PIN, Link to bracett |
| 34 |
0318167 |
SCREW, Stop link |
| 35 |
0313848 |
SCREW, Stop link |
| 36 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 37 |
0319108 |
SCREW BELCRANK |
| 39 |
0314007 |
CUP, Reverse lock spring |
| 40 |
0313817 |
RESSORT, verrouillage de marche arrière |
| 41 |
0315964 |
LINK, Reverse lock |
| 42 |
0315962 |
GOUPILLE, tringlerie vers levier |
| 43 |
0315965 |
DISPOSITIF DE RETENUE, ressort |
| 44 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 45 |
0321234 |
PLAQUE, verrouillage de marche arrière |
| 46 |
0333871 |
LEVER, Locking This part replaces 0315963. |
| 47 |
0326499 |
STOP LINK, Stbd |
| 48 |
0385656 |
STOP LINK, Port |
| 49 |
0314898 |
L'NUT, Stud, alt frt |
| 50 |
0315967 |
SPIRNG, Link |
| 51 |
0552499 |
WASHER, Link pin |
| 52 |
0314031 |
SPRING WASHER, Stop link |
| 53 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 55 |
0327997 |
BOLT, Tilt |
| 56 |
0321509 |
ADAPTER, Exh. hsg., std. length |
| 57 |
0309705 |
SCREW |
| 57 |
0328647 |
ADAPTER, Exh. hsg., long length |
| 59 |
0336259 |
EXH. HOUSING, Inner This part replaces 0328646. |
| 59 |
0336328 |
EXH. HOUSING, Inner, upper This part replaces 0324042. |
| 60 |
0315957 |
EXH HOUSING, Inner lower, std |
| 61 |
0322075 |
EXH HSG, Outer, std |
| 61 |
0351067 |
EXH. HOUSING, Outer This part replaces 0327877. |
| 62 |
0318169 |
WASHER, Lever & shaft |
| 63 |
0351019 |
GASKET, Adapter to housing This part replaces 0328283. |
| 64 |
0323612 |
COVER, Exh. hsg. front |
| 64 |
0350796 |
COVER, Exhaust housing, front This part replaces 0315445. |
| 65 |
0340785 |
COVER, Exh. hsg., rear This part replaces 0315446. |
| 67 |
0315955 |
SEAL, Inner to outer housing |
| 69 |
0315956 |
SEAL, Lower to outer housing |
| 70 |
0436470 |
MOUNT, Upper This part replaces 0388234. |
| 71 |
0383961 |
MOUNT, Thrust |
| 72 |
0388411 |
RUBBER MOUNT, Lower |
| 74 |
0318170 |
GUARD |
| 75 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 77 |
0329894 |
SCREW This part replaces 0302510. |
| 78 |
0322074 |
MOUNT BRACKET |
| 80 |
0316109 |
VIS, levier vers support |
| 81 |
0316055 |
COVER, Mount bracket |
| 82 |
0316233 |
SCREW, Cover to bracket |
| 83 |
0325017 |
NUT, Tilt lock pin |
| 84 |
0315864 |
COVER, Exhaust relief |
| 85 |
0329826 |
COVER, Relief cover This part replaces 0315865. |
| 86 |
0305143 |
SCREW, By-pass cover |
| 87 |
0318307 |
CLAMP,Cable casing guide |
| 88 |
0306423 |
BOLT |
| 90 |
0317648 |
SCREW, Upper mount |
| 91 |
0313581 |
BUMBER, Mount screw |
| 92 |
0321232 |
RETAINER WASHER |
| 93 |
0313580 |
WASHER |
| 94 |
0322309 |
WASHER TUBE, Std. |
| 94 |
0340216 |
WATER TUBE This part replaces 0327898. |
| 95 |
0332363 |
GROMMET, Tube to adapter This part replaces 0322308. |
| 96 |
0321426 |
SPRING, Reverse lock |
| 98 |
0329012 |
KNOB Tilt & reverse lock handle |
| 99 |
0319904 |
BELLCRANK |
| 101 |
0318238 |
SCREW |
| 102 |
0582494 |
GROUND STRAP This part replaces 0387043. |
| 103 |
0391592 |
STEERING HANDLE ASSY. |
| 104 |
0392969 |
IDLE STOP SWITCH ASSY. 1 |
| 105 |
0391325 |
GRIP ASSY |
| 106 |
0397003 |
THROTTLE CABLE ASSY This part replaces 0392965. |
| 108 |
0324684 |
ROLLER HELIX TO CABLE |
| 109 |
0324683 |
PIN, Cable to rollers |
| 111 |
0325791 |
HELIX, Twist grip |
| 119 |
0326618 |
SCREW, Clamp |
| 120 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 121 |
0397129 |
CONNECTOR KIT This part replaces 0326819. |
| 122 |
0334642 |
BRACKET, Steering handle This part replaces 0325213. |
| 123 |
0317415 |
THRUST RING, Friction |
| 124 |
0317418 |
PIN, Steer. friction |
| 125 |
0317416 |
SCREW, Thrust ring |
| 126 |
0317525 |
SCREW, Steer. friction |
| 127 |
0316039 |
RETAINER |
| 128 |
0322376 |
NUT, Wiper, tilt tube |
| 129 |
0120255 |
LOCKWASHER |
| 130 |
0133022 |
SCREW |
| 131 |
0328651 |
COVER, Exhaust relief |

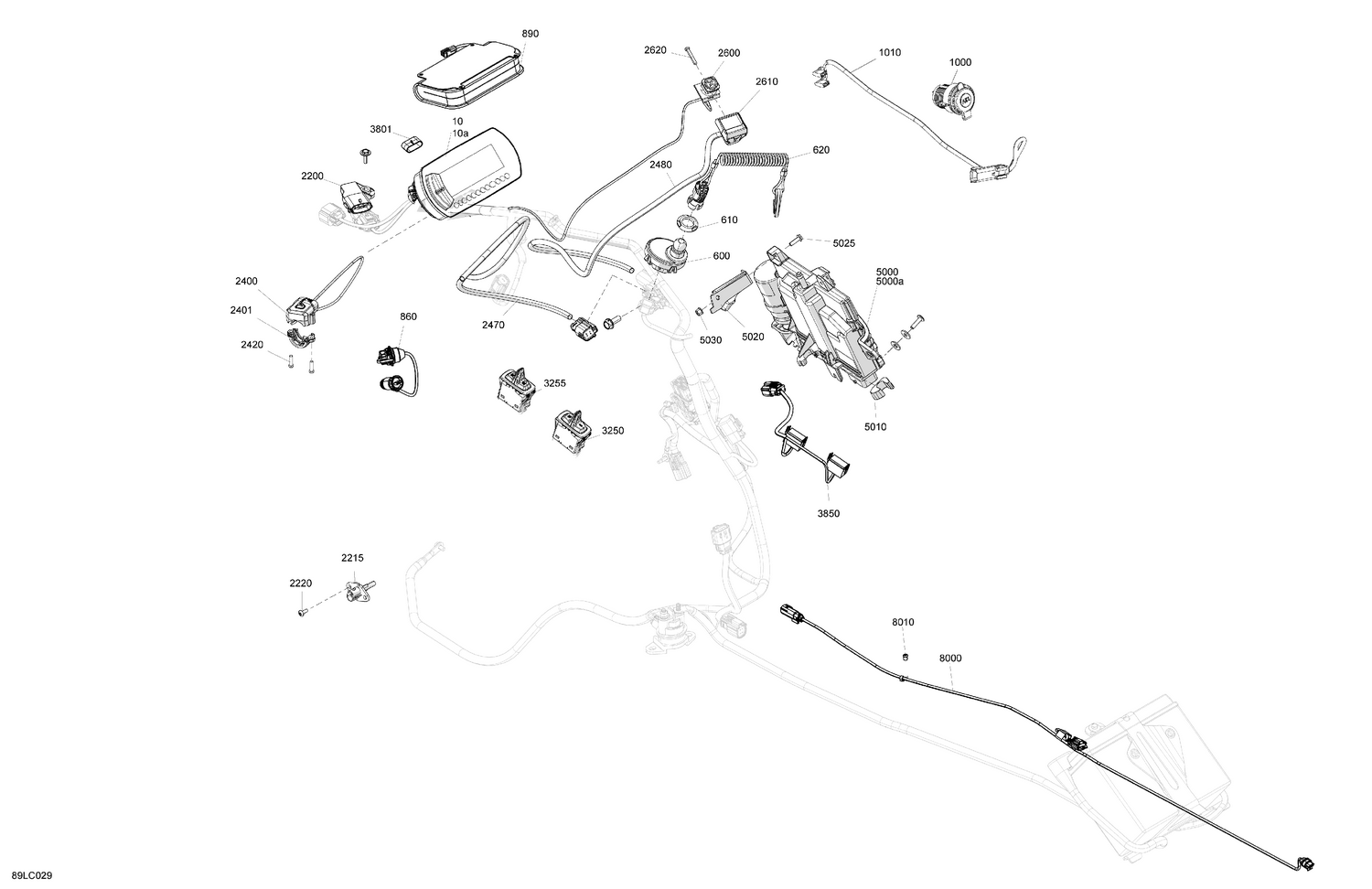

| 600 |
710006855 |
Ignition Switch |
| 610 |
278004274 |
Specialized Nut |
| 620 |
515179476 |
Grey, LYNX DESS Key |
| 860 |
515179248 |
USB Wiring Harness Ass'y |
| 890 |
860202888 |
NEEDS DESCRIPTION This part replaces 515179062. |
| 1000 |
219400510 |
USB Outlet |
| 1010 |
515178190 |
Harness |
| 2200 |
707000995 |
Pressure And Temperature Sensor |
| 2215 |
515176366 |
Air Temperature Sensor |
| 2220 |
250001131 |
Torx Truss PT K40 x 12 |
| 2400 |
515179056 |
Ignition Switch |
| 2401 |
515177952 |
Clamp |
| 2420 |
250000671 |
Torx Screw |
| 2470 |
415130141 |
Sleeve |
| 2480 |
415130141 |
Sleeve |
| 2600 |
515178859 |
Emergency Stop Switch |
| 2610 |
515179182 |
Clamp |
| 2620 |
250001201 |
Screw PT. Socket T10 K30 X 16 |
| 3250 |
515178462 |
Switch Rocker Hand Warmer |
| 3255 |
515178463 |
Switch Rocker Headlignt |
| 3801 |
515179300 |
Plug |
| 3850 |
515179085 |
Console Wiring Harness |
| 5000a |
515177272 |
Capacitor |
| 5010 |
515178430 |
Rubber Stopper |
| 5020 |
515178159 |
Module Support |
| 5025 |
207551634 |
Hex. Flange Screw, Scotch Grip |
| 5030 |
233251434 |
Flanged Elastic Nut M5 |
| 8000 |
515179529 |
Taillight Wiring Harness This part replaces 515179308. |
| 0172912 |
0172912 |
PLATE ASSY |
| 0393449 |
0393449 |
STEERING HANDLE ASSY. 1 |
