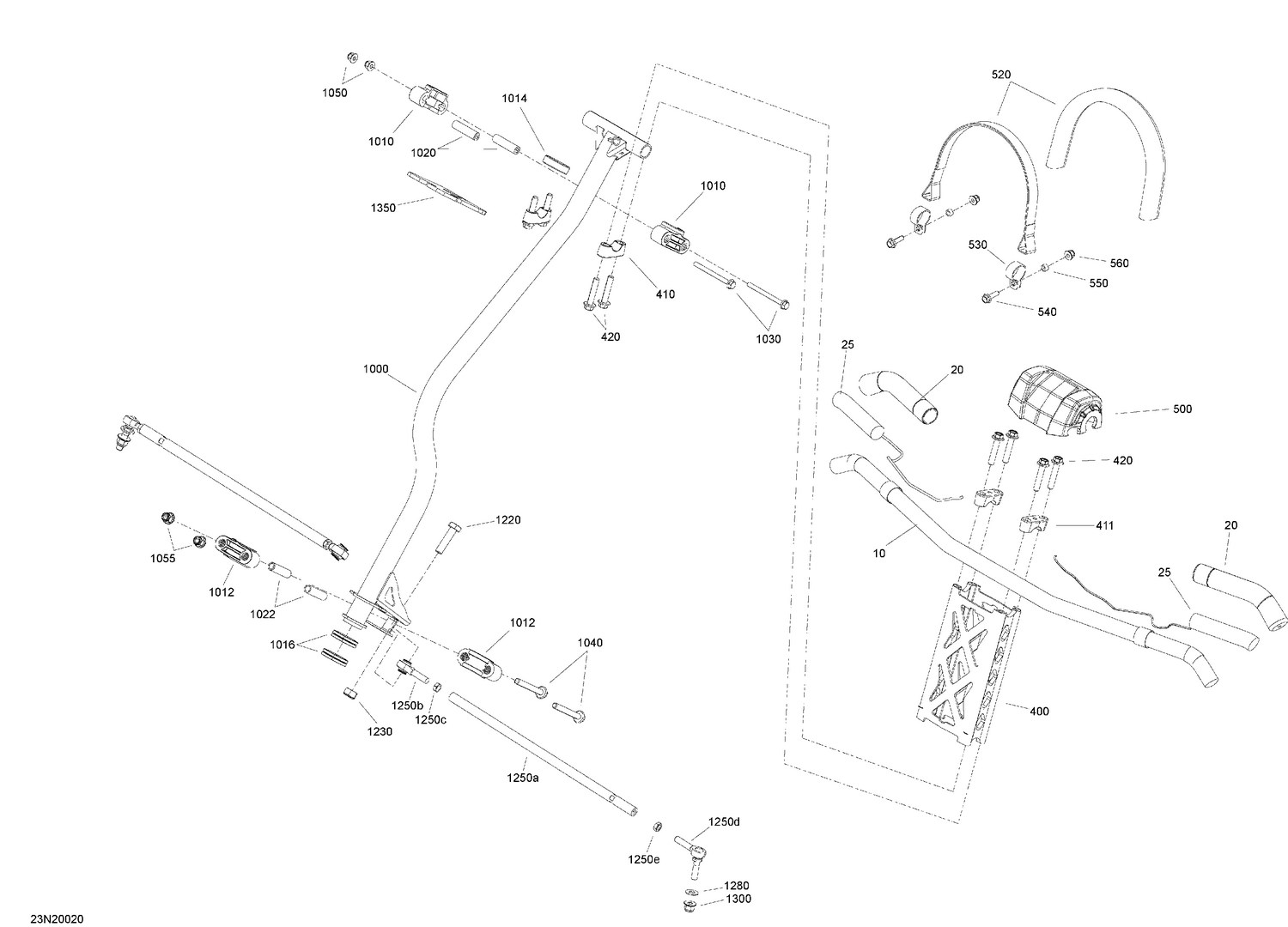

06- Steering - System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152722 | Handle Bar |
| 20 | 506152483 | Grip |
| 25 | 506152428 | Heated Film, 25W |
| 400 | 860200821 | Extension Kit ( 205mm ) This part replaces 860200269. |
| 410 | 506152751 | Steering Support This part replaces 506152750. |
| 411 | 506152751 | Steering Support This part replaces 506152750. |
| 420 | 250000285 | Hex. Flange Screw M8 x 40 |
| 500 | 506152541 | Deep Black, Steering Pad |
| 520 | 506152115 | Strap Ass'y |
| 530 | 506152536 | Black Support Plate |
| 540 | 207662054 | Hex. Flange Screw M6 X 20 |
| 550 | 506152156 | Bushing |
| 560 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 506152964 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152217 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1022 | 506152297 | Housing Bushing |
| 1030 | 250001027 | Hex. Flange Screw M6 X 70 |
| 1040 | 250001027 | Hex. Flange Screw M6 X 70 |
| 1050 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1055 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1220 | 207004044 | Hex. Screw M10 X 40 |
| 1230 | 232500416 | Elastic Stop Nut M10 |
| 1250a | 506152498 | Tie-Rod |
| 1250b | 506152081 | LH Thread Ball Joint |
| 1250c | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250d | 506152684 | RH Threaded Ball Joint |
| 1250e | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
