| Ref | Part Number | Description |
|---|
| 2 |
0125455 |
HOUSING, Control This part replaces 0123244. |
| 3 |
0125456 |
HOUSING This part replaces 0123245. |
| 4 |
0123260 |
TRAY |
| 5 |
0123261 |
SHAFT, Remote control |
| 6 |
0123496 |
DRIVE GAR, Starboard |
| 8 |
0123265 |
SPRING, Drive gear |
| 9 |
0123266 |
BRUSHING, Shaft to housing |
| 10 |
0123267 |
WASHER |
| 11 |
0123268 |
ROLLER Throttle cam |
| 12 |
0123269 |
WASHER |
| 13 |
0123270 |
CAM Neutral switch |
| 14 |
0123271 |
BUSHING, Throttle hub |
| 15 |
0909859 |
SCREW, Control housing |
| 17 |
0123274 |
SCREW, Tray to housing |
| 18 |
0123279 |
HANDLE, Side mount |
| 19 |
0123281 |
PLATE, Neutral lock |
| 20 |
0123283 |
KNOB, Lockout button |
| 21 |
0123285 |
KNOB, Trim switch |
| 22 |
0123286 |
END CAP |
| 23 |
0123289 |
SCREW, Knob to handle |
| 25 |
0175090 |
COVER, Handle This part replaces 0123293. |
| 26 |
0123443 |
SPRING, Neutral lock |
| 27 |
0123296 |
COVER, Trim switch |
| 29 |
0123312 |
SCREW, Mounting flange |
| 30 |
0123316 |
SCREW, Flange to boat |
| 31 |
0123317 |
VIS, ancrage & solénoïde d'amorçage |
| 32 |
0123323 |
SCREW, Knob to handle |
| 34 |
0123342 |
SHOE Detent roller |
| 35 |
0123350 |
BUSHING |
| 36 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 37 |
0173477 |
MOUNTING FLANGE & PIN |
| 38 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 39 |
0173480 |
NEUTRAL START SWITCH |
| 40 |
0174285 |
SWITCH & LEAD ASSEMBLY This part replaces 0173481. |
| 43 |
0173572 |
LEAD ASSEM BLY |
| 46 |
0303887 |
WASHEER, Pin to swivel bracket |
| 51 |
0323463 |
CABLE CLAMP |
| 52 |
0323464 |
CASING GUIDE |
| 54 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 55 |
0173499 |
LOCKNUT BUTTON ASSEMBLY |
| 56 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 58 |
0308545 |
SCREW |
| 0173497 |
0173600 |
CABLE MOUNT HARDWARE This part replaces 0173497. |
| 0981592 |
0981592 |

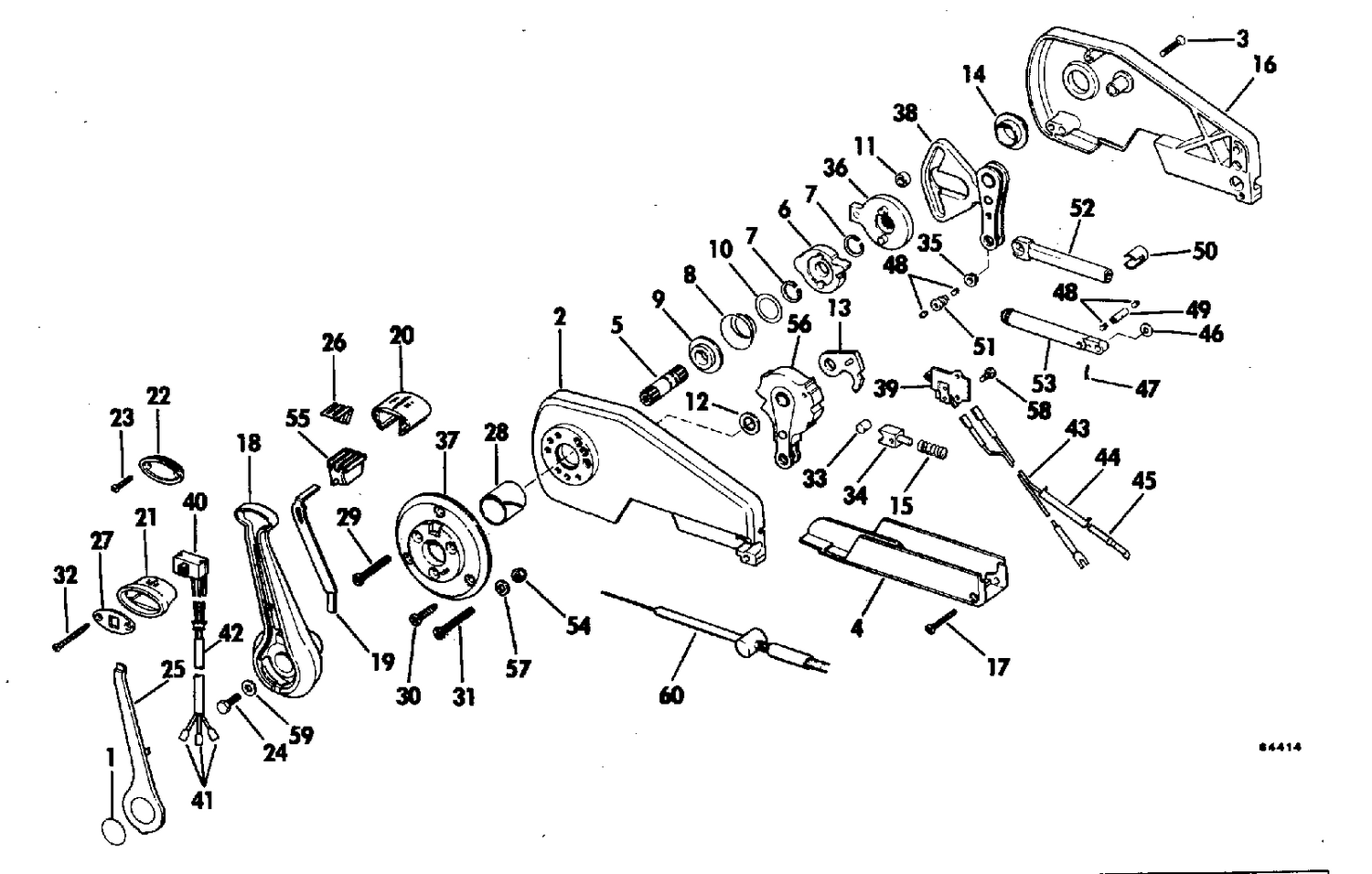

REMOTE CONTROL ASSEMBLY-Concealed side mount |
| 0981593 |
0981593 |
REMOTE CONTROL ASSEMBLY-Concealed side mount with trim switch |
