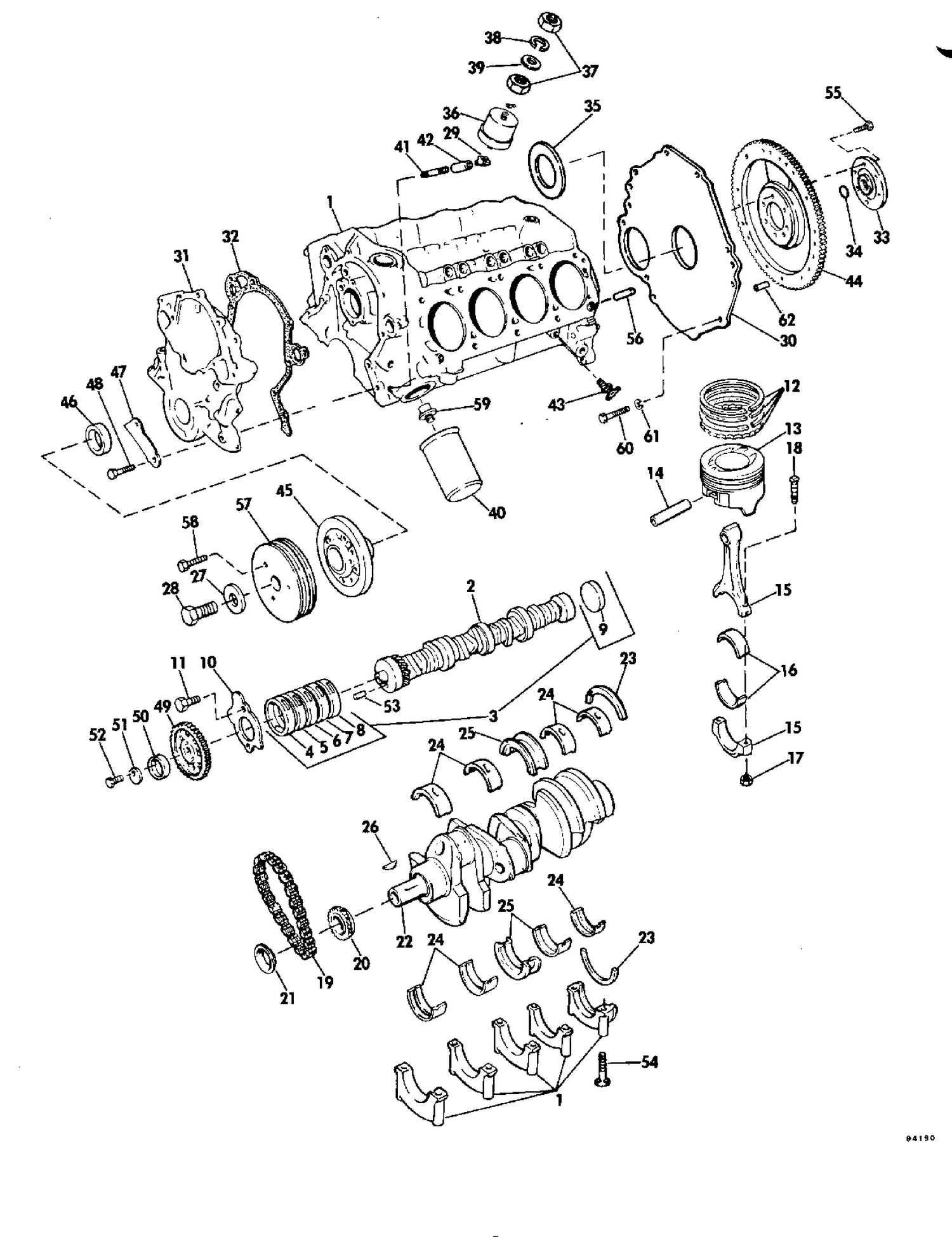

| Ref | Part Number | Description |
|---|
| 1 |
D5JE-6010-CC |
BLOCK ASSY |
| 2 |
D2JE-6250-BA |
CAMSHAFT ASSY |
| 3 |
C2OZ-6A251-A |
CAMSHAFT BRG,Kit,std |
| 4 |
C2OZ-6261-A |
CAMSHAFT BRG,#1 std |
| 4 |
C2OZ-6261-B |
CAMSHAFT BRG, #1, .015''u/s |
| 5 |
C2OZ-6267-A |
CAMSHAFT BRG,#2 std |
| 5 |
C2OZ-6267-B |
CAMSHAFT BRG, #2, .015'' u/s |
| 6 |
C2OZ-6262-A |
CAMSHAFT BRG,#3,std |
| 6 |
C2OZ-6262-B |
CAMSHAFT BRG, #3, .015'' u/s |
| 7 |
C2OZ-6270-A |
CAMSHAFT BRG,#4,std |
| 7 |
C2OZ-6270-B |
CAMSHAFT BRG, #4, .015'' u/s |
| 8 |
C2OZ-6263-A |
CAMSHAFT BRG,#5,std |
| 8 |
C2OZ-6263-B |
CAMSHAFT BRG, #5, .015'' u/s |
| 9 |
C2OZ-6266-A |
PLUG, Cam rear brg, 2.156'' |
| 9 |
C5AZ-6266-A |
PLUG, Cam rear brg, .060" o/s |
| 10 |
C9OZ-6269-A |
PL,Cam,thr,std,.251" |
| 10 |
C9OZ-6269-B |
PLATE, Cam, thrust, .002'' o/s |
| 10 |
C9OZ-6269-C |
PLATE, Cam thrust, .004'' o/s |
| 11 |
42911-S |
BOLT, Plate to block |
| 12 |
C3AZ-6148-F |
PISTON RING STD |
| 12 |
C3AZ-6148-G |
PISTON RING, .020" o/s |
| 12 |
C3AZ-6148-H |
PISTON RING, .030'' o/s |
| 12 |
C3AZ-6148-J |
PISTON RING, .040" o/s |
| 13 |
D7DZ-6108-A |
PISTON ASSY, Std (red) |
| 13 |
D7DZ-6108-B |
PISTON ASSY, Std (blue) |
| 13 |
D7DZ-6108-C |
PISTON ASSY, .003: o/s |
| 13 |
D7DZ-6108-D |
PISTON ASSY, .020' o/s |
| 13 |
D7DZ-6108-E |
PISTON ASSY, .030" o/s |
| 13 |
D7DZ-6108-F |
PISTON ASSY, .040" o/s |
| 14 |
B2AZ-6135-A |
WRIST PIN STD |
| 14 |
B2AZ-6135-B |
WRIST PIN, .001'' o/s |
| 15 |
D5UZ-6200-A |
ROD ASSY |
| 16 |
C9OZ-6211-A |
BRG,Conn rod,std |
| 16 |
C9OZ-6211-B |
BRG,Conn rod,.001" u/s |
| 16 |
C9OZ-6211-C |
BRG,Conn rod,.002" u/s |
| 16 |
C9OZ-6211-D |
BRG,Conn rod,.010" u/s |
| 16 |
C9OZ-6211-E |
BRG,Conn rod,.020" u/s |
| 16 |
C9OZ-6211-F |
BRG,Conn rod,.030" u/s |
| 17 |
C9AZ-6212-B |
NUT, Conn rod |
| 18 |
C9AZ-6214-B |
BOLT, Conn rod |
| 19 |
C3OZ-6268-A |
CHAIN, Timing |
| 20 |
C5OZ-6306-A |
SPROCKER,C'shaft |
| 21 |
DOAZ-6310-A |
SLINGER, C'shaft oil |
| 22 |
D5AZ-6303-A |
CRANKSHAFT ASSY |
| 23 |
D0OZ-6701-A |
SEAL, C'shaft, rear |
| 24 |
D7AZ-6333-A |
MAIN BEARING - UPPER - STANDARD |
| 24 |
D7AZ-6333-B |
MAIN BRG,.001 u.s. |
| 24 |
D7AZ-6333-C |
MAIN BEARING - .002 U/S |
| 24 |
D7AZ-6333-D |
MAIN BRG,.010 u.s. |
| 24 |
D7AZ-6333-E |
MAIN BEARING - .020 U/S |
| 24 |
D7AZ-6333-F |
MAIN BEARING - .003 U/S |
| 24 |
D7AZ-6333-G |
MAIN BEARING - LOWER - STANDARD |
| 24 |
D7AZ-6333-H |
MAIN BEARING - LOWER - .001 U/S |
| 24 |
D7AZ-6333-J |
MAIN BEARING - LOWER - .002 U/S |
| 24 |
D7AZ-6333-K |
MAIN BEARING - LOWER - .010 U/S |
| 24 |
D7AZ-6333-L |
MAIN BEARING - LOWER -.020 U/S |
| 24 |
D7AZ-6333-M |
MAIN BEARING - LOWER - .030 U/S |
| 25 |
D1AZ-6337-A |
MAIN BEARING - UPPER - CENTER - STANDARD |
| 25 |
D1AZ-6337-B |
MAIN BEARING - UPPER -CENTER - .001 U/S |
| 25 |
D1AZ-6337-C |
MAIN BEARING - UPPER - CENTER - .002 U/S |
| 25 |
D1AZ-6337-D |
MAIN BEARING - UPPER - CENTER -.010 U/S |
| 25 |
D1AZ-6337-E |
MAIN BEARING - UPPER - CENTER - .020 U/S |
| 25 |
D1AZ-6337-F |
MAIN BEARING - UPPER - CENTER - .030 U/S |
| 25 |
D7AZ-6337-A |
MAIN BEARING - LOWER - CENTER - STANDARD |
| 25 |
D7AZ-6337-B |
MAIN BEARING - LOWER - CENTER - .001 U/S |
| 25 |
D7AZ-6337-C |
MAIN BEARING - LOWER - CENTER - .002 U/S |
| 25 |
D7AZ-6337-D |
MAIN BEARING - LOWER - CENTER - .010 U/S |
| 25 |
D7AZ-6337-E |
MAIN BEARING - LOWER - CENTER - .020 U/S |
| 25 |
D7AZ-6337-F |
MAIN BEARING - LOWER - CENTER - .030 U/S |
| 26 |
372854-S |
KEY, Sprocket to c'shaft |
| 27 |
B8A-6378-A |
WASHER, C'shaft pulley |
| 28 |
376706-S |
BOLT, Damp ay to c'shaft |
| 29 |
0121687 |
FITTING |
| 30 |
0909460 |
COVER, Plate |
| 31 |
C9JE-6019-A |
COVER ASSY,Cyl front |
| 32 |
C2OZ-6020-A |
GASKET, Cylinder front |
| 33 |
0981948 |
COUPLING ASSY |
| 34 |
0909567 |
O-RING |
| 35 |
0909382 |
SEAL, Cover plate |
| 36 |
3853800 |
OIL PRESSURE SENDER This part replaces 0172127. |
| 37 |
0308153 |
NUT |
| 38 |
0550757 |
L'WASHER,Coil term |
| 39 |
0554716 |
WASHER |
| 40 |
0502900 |
OIL FILTER This part replaces 0173231. |
| 41 |
0907801 |
EXTENSION PIPE |
| 42 |
0311086 |
CONNECTOR, Pipe |
| 43 |
0379957 |
PETCHOCK ASSY, Water drain |
| 44 |
C3AZ-6375-J |
FLYWHEEL ASSY |
| 45 |
C9OZ-6316-A |
DAMPER ASSY,C'shaft |
| 46 |
D0AZ-6700-A |
OIL SEAL, Cyl front cover |
| 47 |
C9JE-6023-A |
POINTER, Timing |
| 48 |
56126-S2 |
BOLT, Front cover |
| 49 |
D3AZ-6256-B |
SPRKT, C'shaft, 42t |
| 50 |
D0AZ-6287-A |
ECC,Cmshaft,outer |
| 50 |
D5AZ-6287-B |
ECC,Cmshaft,inner |
| 51 |
C2OZ-6278-A |
WASHER, Camshaft sprkt |
| 52 |
43002-S |
BOLT, Eccentric & sprkt to camshaft |
| 53 |
384940-S |
DOWEL |
| 54 |
C1AE-6345-B |
BOLT, C'shaft main bearing cap |
| 54 |
D6T2-6345-A |
STUD, Crankshaft main bearing cap |
| 55 |
378223-S100 |
BOLT, Flywheel |
| 56 |
C2OZ-6A008-A |
DOWEL, Cyl head to block |
| 57 |
C9OZ-6A312-B |
PULLEY ASSY, C'shaft |
| 58 |
56140-S36 |
BOLT ,Pulley to balance |
| 59 |
D7AZ-6890-A |
INSERT,Oil filter |
| 60 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 61 |
0306407 |
LOCCKWASHER,Cover latch |
| 62 |
EAD-6397-A |
DOWEL, Rear ang plate |
