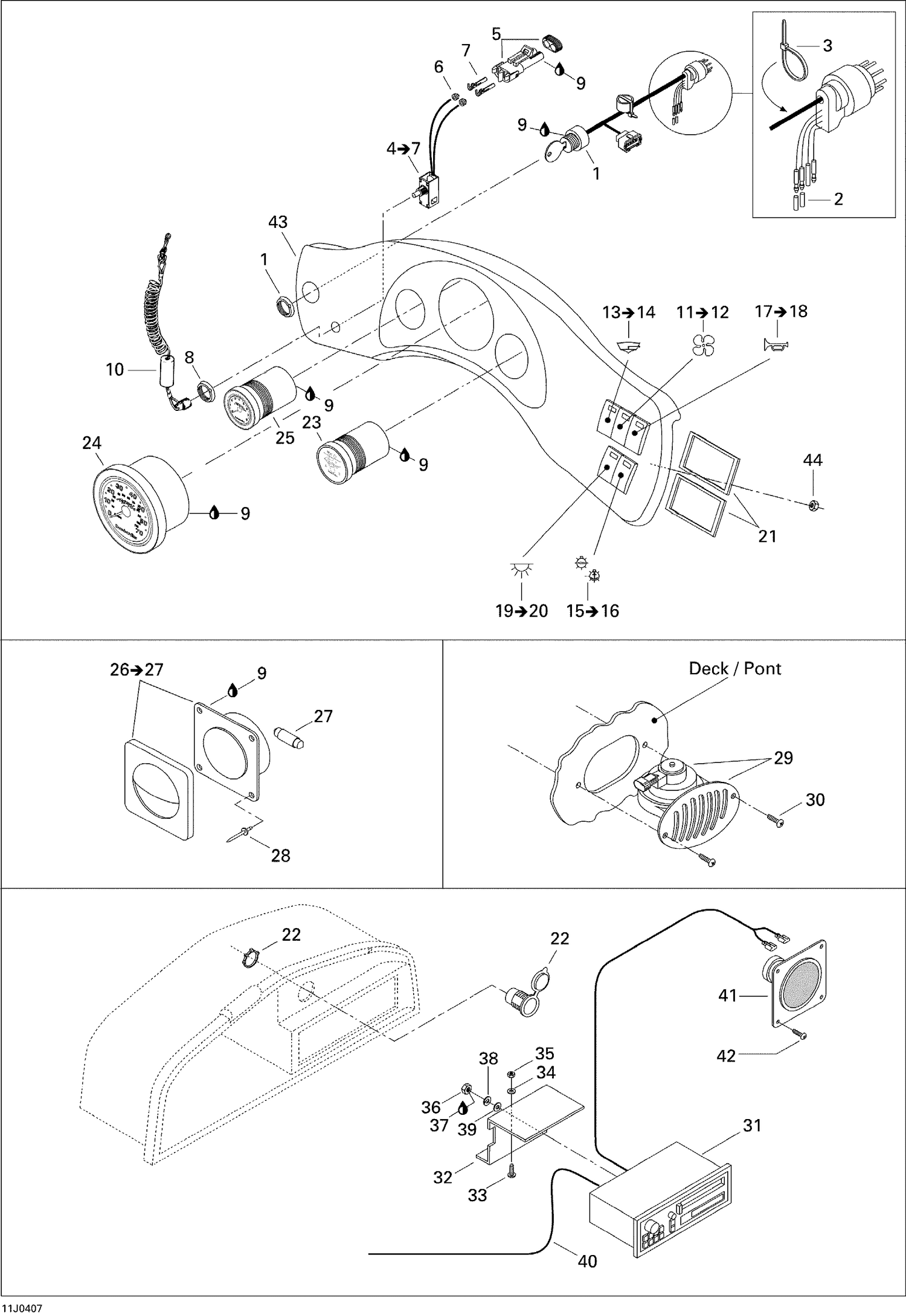

10- Electrical Accessories 1
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Instrumentation Harness (Mercury) |
| 2 | 204130033 | RUBBER CAP - Call your local BRP dealership |
| 3 | 293750001 | Tie Wrap 94 mm |
| 5 | 278000220 | Male Connector, 2 Circuits |
| 6 | 278000218 | Wire Seal |
| 7 | 278000223 | Female Terminal |
| 8 | 278000099 | Safety Switch Nut |
| 9 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 10 | 278001431 | Safety Lanyard |
| 12 | 204470132 | Gasket |
| 14 | 204470132 | Gasket |
| 16 | 204470132 | Gasket |
| 18 | 204470132 | Gasket |
| 20 | 204470132 | Gasket |
| 21 | 204470343 | LOCKING PLATE - Call your local BRP dealership |
| 22 | 710001248 | DC Outlet This part replaces 204470907. |
| 23 | 204470806 | Oil/Fuel Gauge |
| 24 | 204470805 | Speedometer Gauge |
| 25 | 204470807 | Tachometer Gauge |
| 27 | 204470081 | BULB - Call your local BRP dealership |
| 28 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 29 | 204470801 | HORN - Call your local BRP dealership |
| 30 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 31 | 204470869 | Compact Disk Radio |
| 32 | 204470688 | Radio Support |
| 33 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 34 | 234062600 | Flat Washer M6, Stainless |
| 35 | 232561600 | Hex. Elastic Stop Nut M6 |
| 36 | 232051600 | Hex. Nut M5 |
| 37 | 293800060 | Loctite 243, 10 ml |
| 38 | 234151601 | Helical Lock Washer M5 |
| 39 | 234052600 | Flat Washer 5 mm, Stainless |
| 40 | 204470380 | Antenna |
| 41 | 204470378 | Speaker |
| 42 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 43 | 204470736 | Facia |
